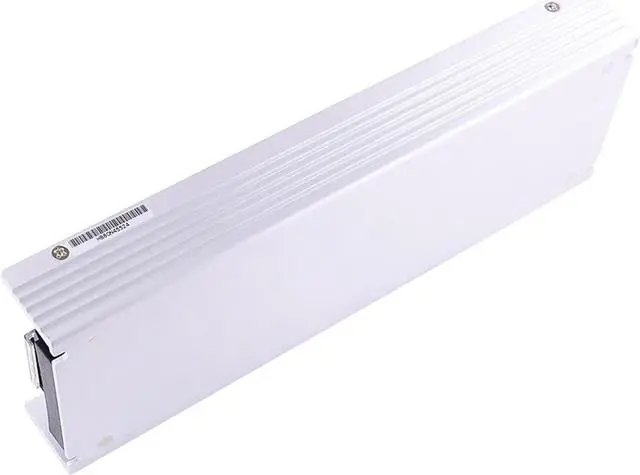

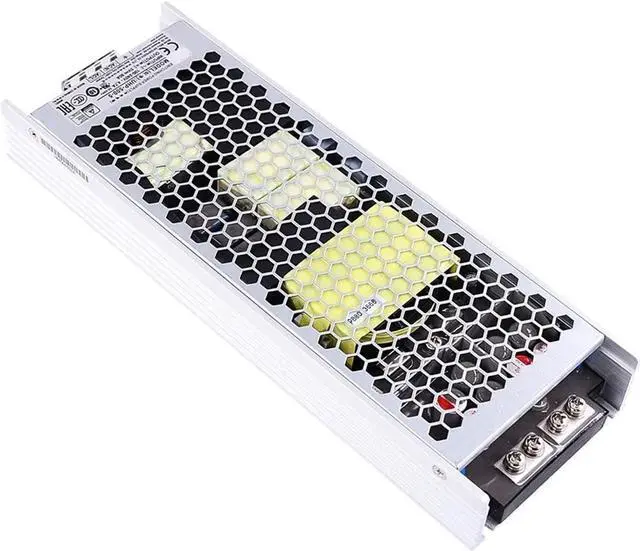

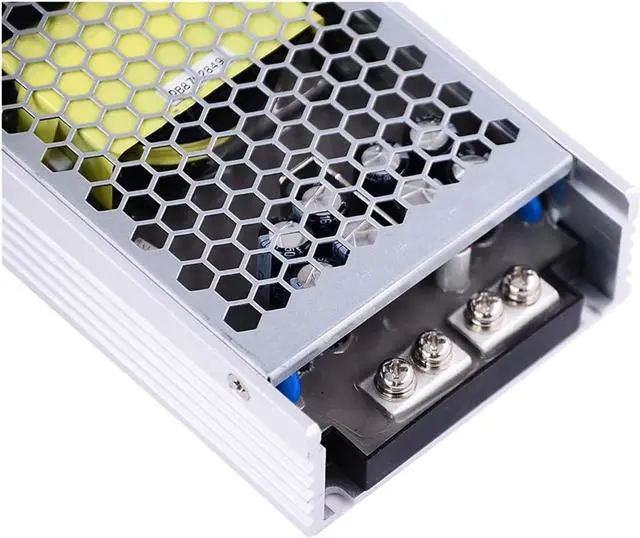

UHP-500R-15 15V/33.4A fanless Design 501W Ultra-Thin PFC Switching Power Supply

Industrial Power Supply
Model: UHP-500R-15
DC voltage: 15V
Rated current: 33.4A
Rated power: 501W
feature:
Thin low profile (31mm)
Fanless design, 500W convection
Withstand 300VAC surge input for 5 seconds
Built-in active PFC function
150% peak load capacity (100ms)
-20~+70 working temperature
Protection: short circuit/overload/overvoltage/overtemperature
DC OK active signal and redundancy function (optional)
Working altitude up to 5000 meters
LED power indicator
describe:
The UHP-500 series is a 500W single output ultra-thin power supply with a 31mm thin design. The entire series adopts 90~264VAC full range input and provides 4.2V, 5V, 12V, 15V, 24V, 36V, and 48V output voltage lines. In addition to high efficiency up to 95%, the entire series operates under air convection conditions of -20°C to 70°C without a fan. UHP-500 has complete protection functions and 5G anti-vibration capabilities; it complies with international safety regulations such as TUV EN62368-1, EN60335-1, UL 62368-1, and GB4943. The UHP-500 series serves as a high-performance power supply solution for various industrial applications.
=========
Output power: 501W
Output current: 33.4A
Model: UHP-500R-15
Output frequency: 47~63Hz
Output type: single channel
Output voltage: 15V
Input voltage: 90~264VAC
Working temperature: -30~70
Working humidity: 20~95% RH non-condensing
Size: 232*81*31mm (length*width*height)
