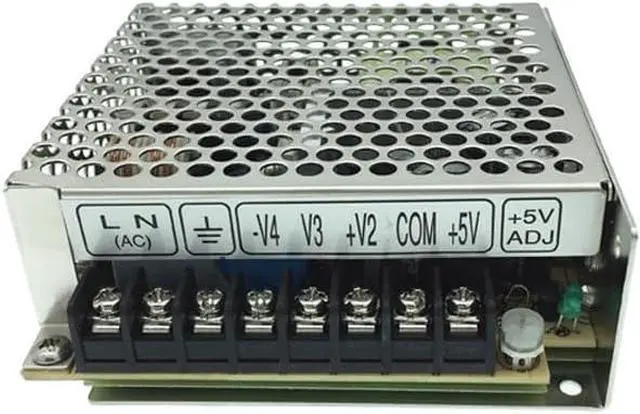

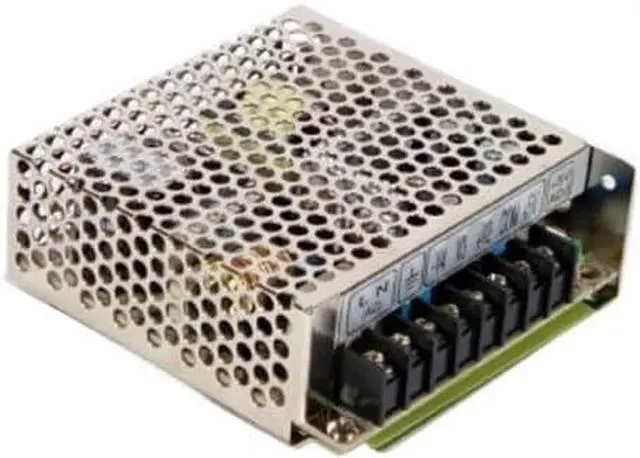

RQ-50C 50W Quad Output Power Supply

Industrial Power Supply
: MEAN WELL/Model: RQ-50C
Work efficiency: 75%
Product certification: TUV
Overall dimensions: 99×97×36mm
Installation method: screw installation
Power supply type: switching power supply

RQ-50C Product Description
Highly reliable switching power supply model, which can withstand 5G vibration and high operating temperature of 70°C. The entire machine uses 105°C long-life electrolytic capacitors and can withstand 300VAC surge input for 5 seconds, making it suitable for use in harsher working environments. .
RQ-50C Main features
Full range AC input voltage
All capacitors are 105 long life capacitors
With short circuit protection/overload protection/overvoltage protection
International safety certification: UL/TUV/CB/CE
Meet EMS EN50082-2/EN61000-6-2 heavy industry standards
Withstand 300VAC high voltage input for 5 seconds without damage
Working environment temperature up to 70
Resistant to 5G vibrations
Small size, high power density
LED indicates working status
High efficiency, long life, high reliability
natural ventilation cooling
100% full load aging test
Can be used in a variety of extreme environment applications
Adopt lead-free manufacturing process and comply with environmental protection RoHS requirements
3 years RQ-50C Main parameters
DC output range: 5V, 0.56A / 15V, 0.21.5A/ -15V, 0.01.0A / -5V, 0.01.0A
Output voltage accuracy ±2% / ±6% / ±2% / ±2%
Ripple 80mV/120mV/100mV/80mV
Efficiency 75%
Maximum power 50 watts
Input voltage range 85~264VAC/120~370VDC (withstands 300VAC high voltage input for 5 seconds without damage)
Input surge current cold start, 36A at 230V
Voltage adjustment range 5V: 4.755.5V
Overload protection overcurrent point is between 110% and 150%, automatic detection and automatic recovery
Overvoltage protection 5V: shuts down when 5.75~6.75V, automatic detection
