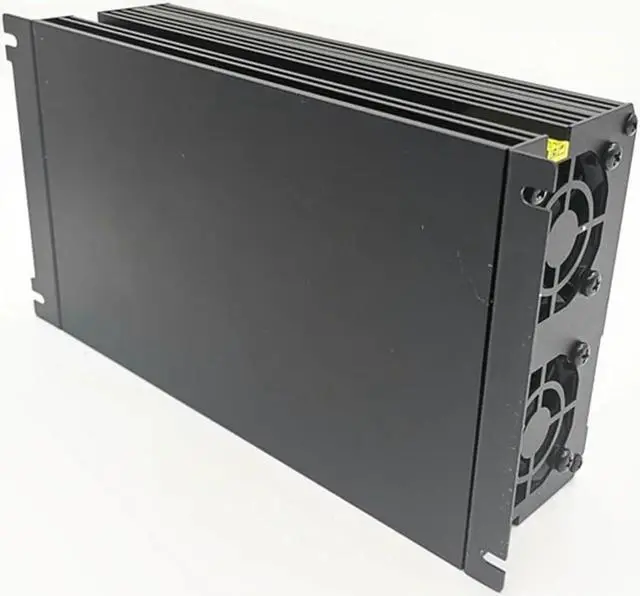

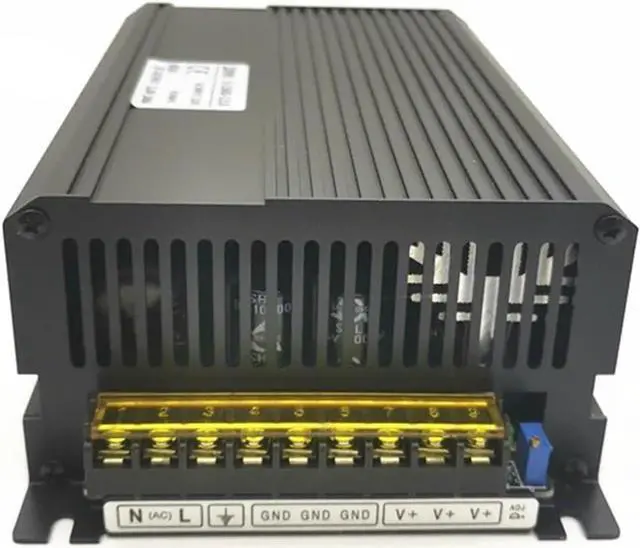

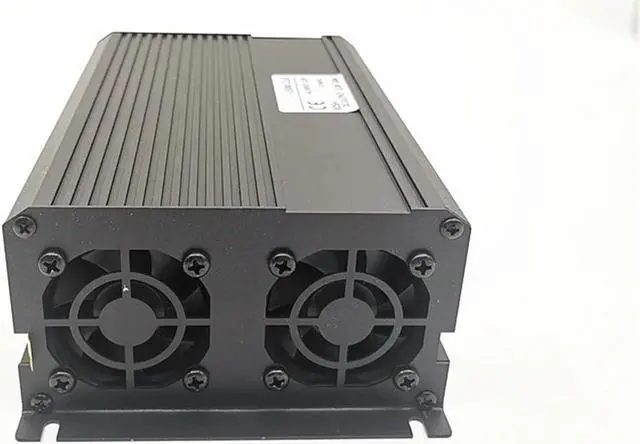

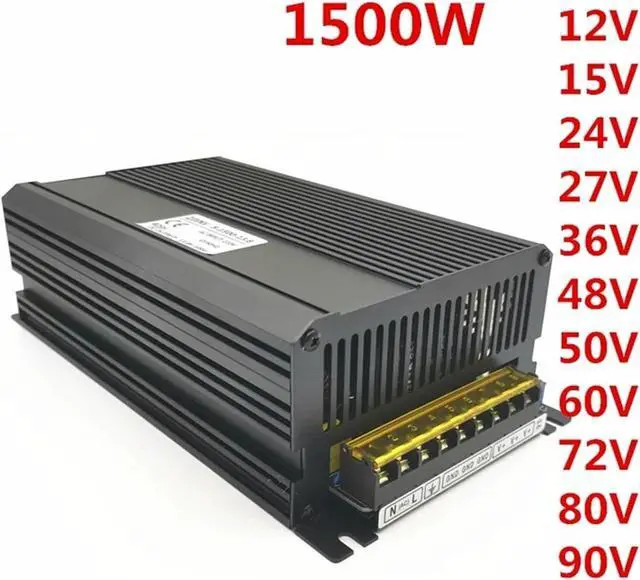

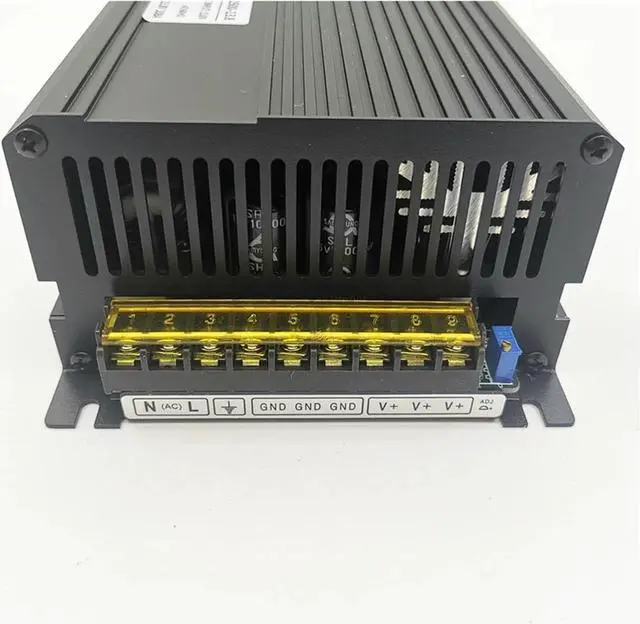

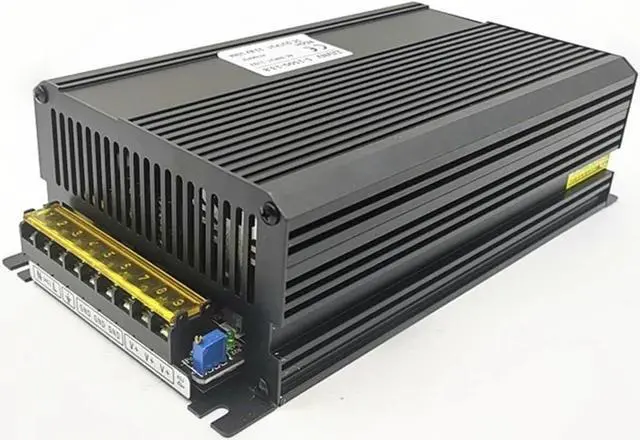

1500W Switching Power Supply AC-DC SMPS Output 12V 15V 24V 36V 48V 50V 60V 72V 80V 90v DC Power Supply(110V,12V 125A)

Industrial Power Suppl
1500W switching power supply AC-DC smps output 12V 15V 24V 36V 48V 50V 60V 72V 80V 90v DC power supply
105C output capacitor
High efficiency, low operating temperature
Soft-start current can effectively reduce AC input impact
With short circuit and overload protection function
Compact size and light weight
100% full load aging test
Install filter, minimum wave
Model specifications
S-1500-12
S-1500-13.5
S-1500-15
S-1500-24
S-1500-27
S-1500-48
DC output voltage (V)
12
13.5
15
twenty four
27
48
Rated output current (A)
125
110
100
62.5
55
31
Output current range(A)
0~125
0~110
0~100
0~62.5
0~55
0~31
Waveform and Noise (mVp-p)
200
200
200
200
200
200
Inlet stability(%)
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
Load stability(%)
±0.5
±0.5
±0.5
±0.5
±0.5
±0.5
DC output power(W)
1500
1500
1500
1500
1500
1500
efficiency(%)
84
84
85
85.5
86.5
87
AC input voltage range
200~240VAC47~63Hz (220VAC or 110VAC)
Input current
7A/230V
AC surge current
50A/230V
Leakage current
<;3.5mA/240VAC
Overload protection
105%-150%
Overvoltage protection
13.8~16.2V
15.5~18.2V
18~21V
27.6~32.4v
31~36.5V
57.6~67.2V
High temperature protection
70°C cut-off output (0~50°C)
temperature coefficient
±0.03%/(0~50)
Setup time, rise time, hold time
1.5 seconds, 50 milliseconds, 20 milliseconds
vibration
10~500Hz, 2G10min,/1cycle. Cycle 60min, each axis
Pressure resistant
I/PO/P:1.5KVACI/P-FG:1.5KVACO/P-FG:0.5KVAC
Isolation resistor
I/PO/P,I/P-FG,O/P-FG:100MOs/500VDC
Operating temperature and humidity
-10~+60,10%~95%RH
Storage temperature and humidity
-20~+85,10%~95%RH
=====
