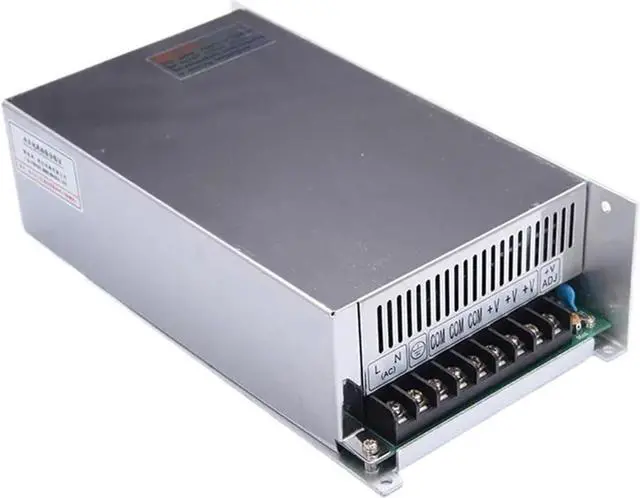

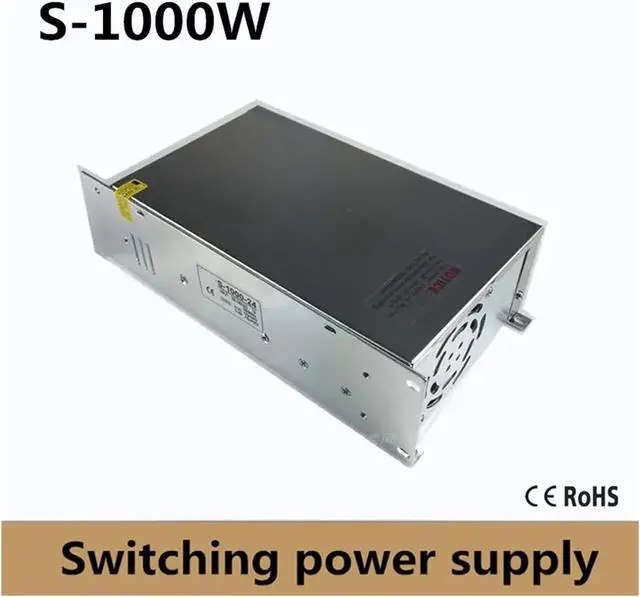

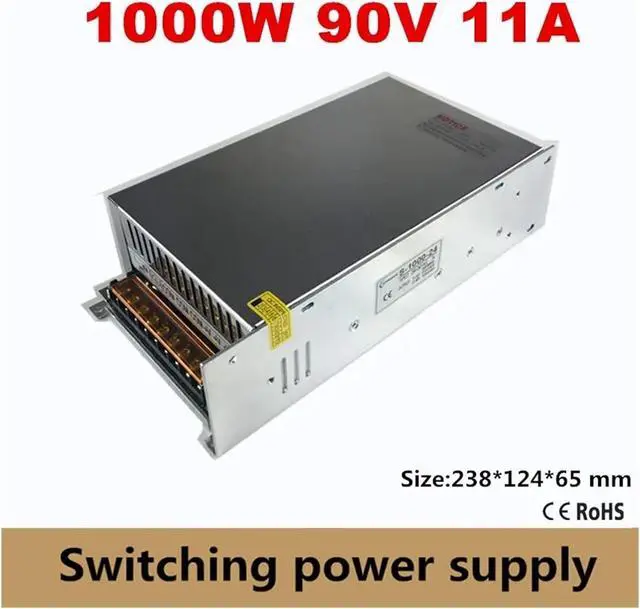

90v 11A Switching Power Supply 1000W Input 200V~240V or 100v~130VAC AC/DC SMPS S-1000-90VDC(100-130vac)

Industrial Power Suppl
90v 11A switching power supply 1000W input 200V~240V or 100v~130VAC AC/DC SMPS S-1000-90VDC
AC input
High efficiency, low operating temperature
Soft-start current can effectively reduce the impact of AC input
With short circuit and overload protection
Compact and light weight
100% full load burning test
Install filter, minimum wave
fan cooling
Specification:
Output voltage: DC 90V
Output current: DC 11A
Rated power: 1000W
Ripple & Noise 120mVpp
Setup time: 500ms, 20ms/230VAC
Input voltage range: AC 200-240V, or 100-130vac50Hz/60Hz 110VAC or 220VAC.
Frequency range: 47-63HZ
Output adjustment range: -/+10%
Efficiency (typ): > 80%
Environment: Working temperature -10~+60°C
Working humidity: 20-90%RH, non-condensing
Storage temperature and humidity: -20~+85°C, 10-95%RH
Shell material: metal shell/aluminum shell
=========
Output power: >500W
Output current: 0-10A
Model: S-1000-90
Output frequency: 50/60 HZ
Output type: single channel

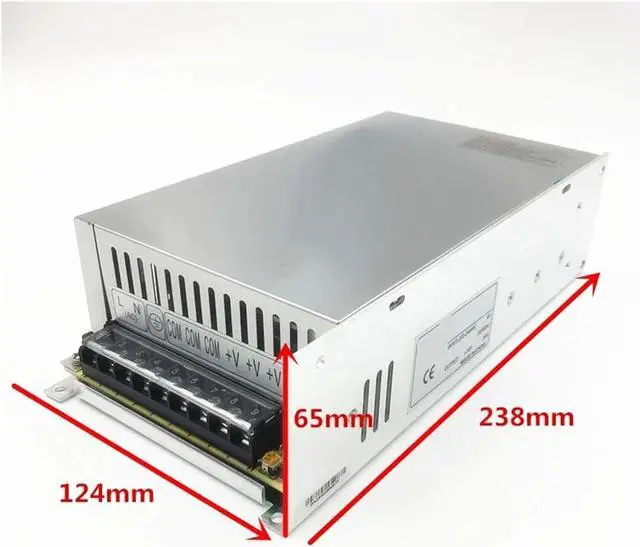

Product size: 238X124X65mm
Output power: 1000W
Output current: 11A
Output voltage: 90V
