LINOVISION Industrial 4 Ports Gigabit BT90W PoE Passthrough Switch and PoE Extender, IEEE802.3af/at/bt, Optional DC Power Supply, SFP Port, DIN Rail PoE Powed Switch Support 820ft Long Distance PoE
- INDUSTRIAL PoE PASSTHROUGH SWITCH -Powerd by POE Switch or PoE Injector, passes PoE power to other PoE devices, such as VoIP phones and cameras. Also know as PoE Powed Switch. No local power adapter is required
- 4CH BT90W PoE EXTENDER - 1 x IEEE 802.3af/at/bt POE Input Port, max 90W; 4 x IEEE 802.3at/af/bt PoE output Ports , 90W max for each port; Total POE budget is 75W max (90W POE input) or 120W max (DC input). Also provides 1 * 1000BASE-X SFP port and 1 * Relay port.
- OPTIONAL DC POWER SUPPLY - Dual DC48~57V redundant power inputs: Power 1 (Main), Power 2 (Backup)
- 820FT PoE EXTENSION- Extends PoE and Ethernet an additional 330ft (100 meters) at Gigabit speed or 820ft (250 meters) at 10Mbps in CCTV mode. Set the PoE Switch to CCTV mode through the DIP switch in the panel.
- STANDARD PoE - Unlike some software emulated PoE, this PoE Extender adopts hardware IEEE802.3af/at/bt PoE chipset and compatible to both Mode A and Mode B PD device. It follows PD Detection -> Classisication
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked. Powered by POE Switch or PoE Injector,passes PoE power to other PoE devices, such as VoIP phones and cameras. No local power adapter is required.
The 1~4 ports are BT90W Ports, deliver up to 90W power per port,suitable for high-power POE devices, like POE monitor, POE lighting, PTZcamera, etc.
Total PoE budget is 75W max (90W PoE input) or 120W max (DC input).

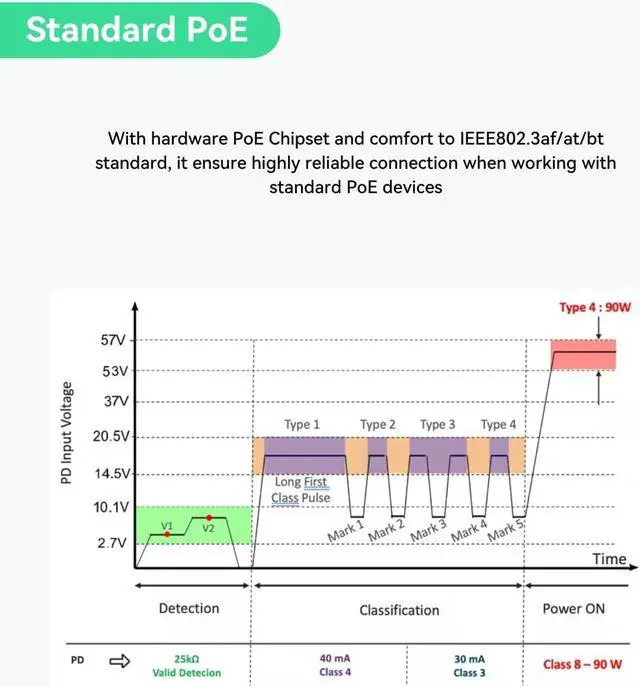

Unlike some software emulated PoE, this PoE Extender adopts hardware IEEE802.3af/at/bt PoE chipset and compatible to both Mode A and Mode B PD device. It follows PD Detection -> Classisication Type -> Power On procedures to prevent stanard PD device from damaging.

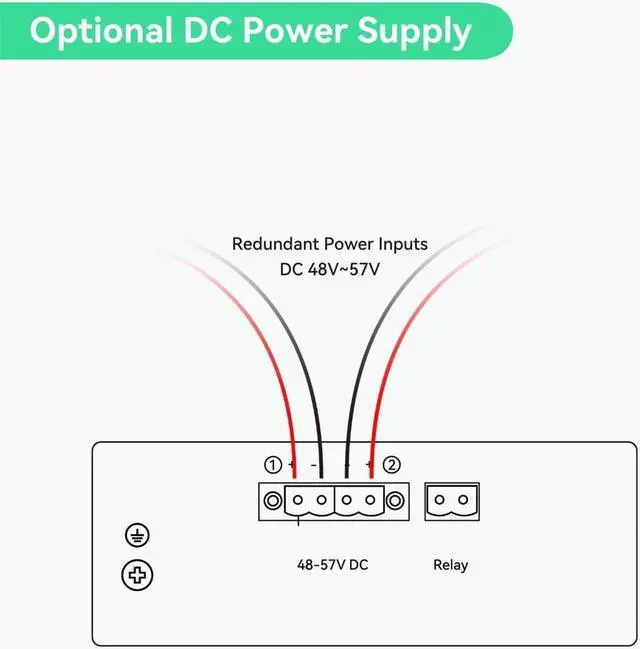

Optional Dual DC 48~57V redundant power inputs: Power 1 (Main),Power 2 (Backup)
Connection Diagram Outstanding Features Powered by POE 4 BT90W PoE Output Ports Standard PoE Optional DC Power Supply Extend PoE and Data Extra 330ft
The 1~4 ports are BT90W Ports, deliver up to 90W power per port,suitable for high-power POE devices, like POE monitor, POE lighting, PTZcamera, etc.
Total PoE budget is 75W max (90W PoE input) or 120W max (DC input).
Unlike some software emulated PoE, this PoE Extender adopts hardware IEEE802.3af/at/bt PoE chipset and compatible to both Mode A and Mode B PD device. It follows PD Detection -> Classisication Type -> Power On procedures to prevent stanard PD device from damaging.
Optional Dual DC 48~57V redundant power inputs: Power 1 (Main),Power 2 (Backup)
Connection Diagram Outstanding Features Powered by POE 4 BT90W PoE Output Ports Standard PoE Optional DC Power Supply Extend PoE and Data Extra 330ft
