EVERSECU 18 Channel AC 24V 10 Amp Reset Fuse CCTV AC Distributed Power Box with AC Plug and Lock for Security Cameras, DVRs, CCTV Power Supply
- Input: 100-240VAC; Output: 24V AC ; Supply Current: 10Amp; Max. Amp: 2Amp/Channel; AC24V Regulator CCTV Power Supply Box, 18 Outputs with PTC Fuse
- General protection: each output has independent PTC fuse and LED indicator, Lightning Protection, Life Time 100000 hours, when problem occurs, only affect the independent output, other outputs still working.
- Circuit short protection: when short condition occurs, independent PTC fuse will open the circuit,when condition removed, PTC fuse will automatically back to close. High voltage protection: when high voltage occurs, the surge protection will be hit through to protect the connected device.
- Over Current protection: when over current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal.

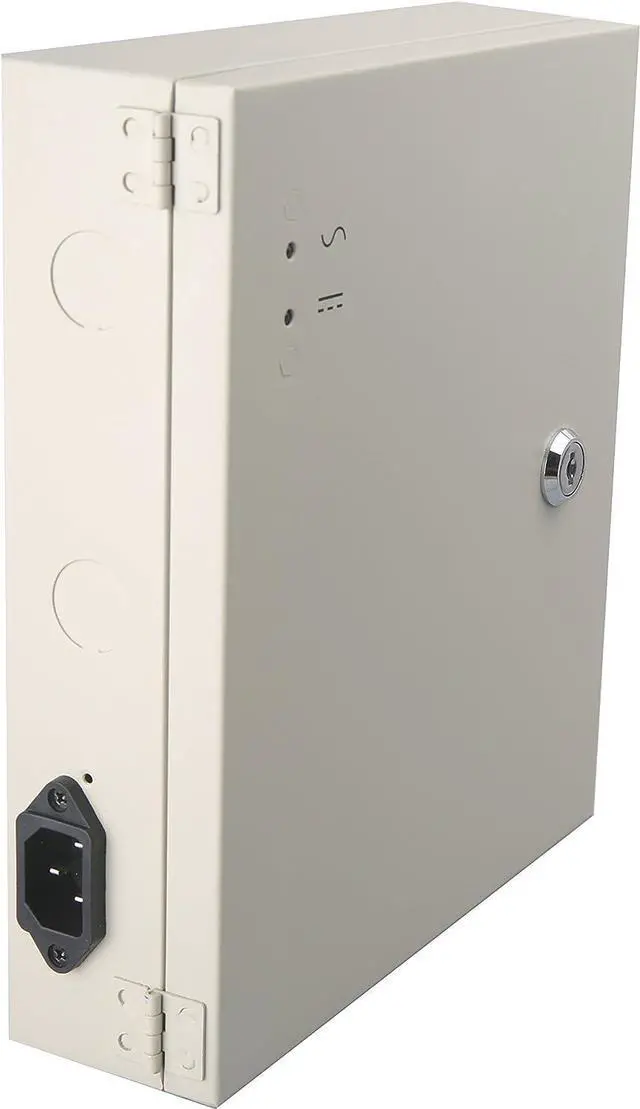

- New Metal housing, Compressive, Wear-resisting Reinforcement Enclosure Structure,Use more Safety and Convenience, Lock with keys and AC Plug are included
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features
General protection: each output has independent PTC fuse and LED indicator, when problem occurs, only affect the independent output, other outputs still working.
Circuit short protection: when short condition occurs, independent PTC fuse will open the circuit,when condition removed, PTC fuse will automatically back to close.
High voltage protection: when high voltage occurs, the surge protection will be hit through to protect the connected device.
Over Current protection: when over current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal.
Application CCTV Camera, PTZ, IR Illuminator, Video Processor Access Control , etc.
Specfication:
Model:CP2418-10A
Input Voltage:AC 110V or 220V, 60Hz or 50Hz
Output Voltage:AC24V
Total Output Current:10A
Total Output Channel:18CH
Fuse type:PTC Resettable
Fuse Rating:1.1A
Efficiency:>=70%
Storage Temperature:-4085
Operating Temperature:-2060
Product Net Weight:3.79kg
Product Dimension:206.4*242.3*84.8mm
Package Dimension:213*252*94mm
Certificate:CE,FCC
Warranty:2 Year
General protection: each output has independent PTC fuse and LED indicator, when problem occurs, only affect the independent output, other outputs still working.
Circuit short protection: when short condition occurs, independent PTC fuse will open the circuit,when condition removed, PTC fuse will automatically back to close.
High voltage protection: when high voltage occurs, the surge protection will be hit through to protect the connected device.
Over Current protection: when over current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal.
Application CCTV Camera, PTZ, IR Illuminator, Video Processor Access Control , etc.
Specfication:
Model:CP2418-10A
Input Voltage:AC 110V or 220V, 60Hz or 50Hz
Output Voltage:AC24V
Total Output Current:10A
Total Output Channel:18CH
Fuse type:PTC Resettable
Fuse Rating:1.1A
Efficiency:>=70%
Storage Temperature:-4085
Operating Temperature:-2060
Product Net Weight:3.79kg
Product Dimension:206.4*242.3*84.8mm
Package Dimension:213*252*94mm
Certificate:CE,FCC
Warranty:2 Year
