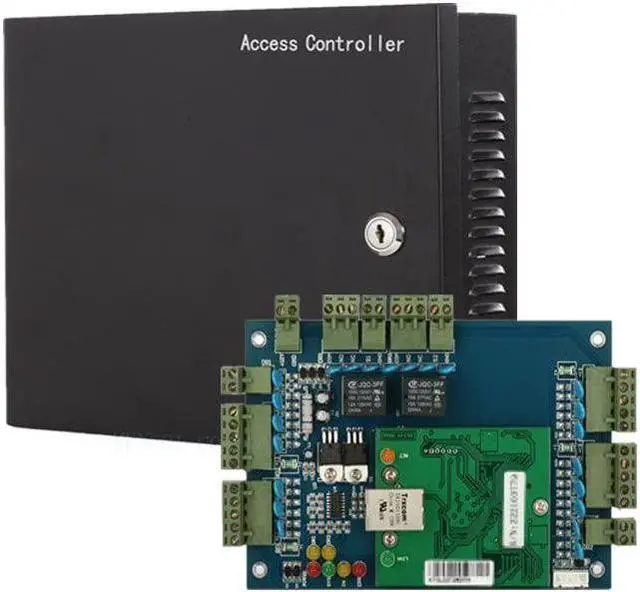

MENGQI-CONTROL 2 Doors Access Control System Core Control Components with Metal 5A 110V-240V Power Supply Box TCP/IP Network Access Control Panel Wiegand Controller,Computer Based Software,Remote Open
- Control 2 doors, get in door by swiping card, get out door by exit button or by swiping card,support 2 or 4 readers.Can Store/download/check Entry Detail records.
- User capacity: 20,000 user, record capacity:100,000. Auto open/close at any pre-set time during any day. Support "who" can enter which door at certain time, authorized access control.Also support swipe 4 times continuously to keep door open.
- Record never lost in case of power failure.The power supply box with 110-240V input, 5A output, powers the whole system,also act as the cabinet for the control board.Input format of reader Wiegand 26/Wiegand34 (all card reader with compatible protocol, RFID/Mifare/HID).
- Network communication via TCP/IP. Software supportable database: access & SQL server. Support Win7/Win8/Win10/Win11 both 32 & 64 bit ALL Windows system.
- This is Core part of a complete access control system, if you need full kits for lock/reader/exit button, etc,contact us freely, we have 20 years experience.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Software Supports Win7/Win8/Win10/Win11 both 32 & 64 bit ALL Windows system.
We provide video guide+Detail wire diagram,so you can easily setup system.
Package include:
1pc 2 door Network Access-Control-Panel-Controller
1pc Power supply box( 110-240V input, 5A output, to power the whole system)
1pc User manual with Detail Instruction/Wire diagram/Video Guide
Basic funtion: swipe card/key fob open door, can check/download/export the detail history entrance record.
Easily add/delete/activate/disable the user open privilege by professional management software.
Support phone app to open door locally or remotely.
Can be used for high security area, the control board as master unit is put inside room.
Allow access for certain door at certain time for different users.
Can keep door auto open during business hour and then auto close at set time.Support holiday security control.
Can swipe certain times to keep open and swipe certain times to close door.
Can be used for user attendance check also.
A lot other features such as anti-pass back, 1st card open, multi-card open .etc.
......
Power60W, Rated Current5A
Input Voltage110V-240V, can be used all over the world.
Output: DC12V to power on the whole System(1114V can be fine-tuned).
Color of the boxblack
Size of the box10.98*9.21*2.64(inch)/279 * 234 * 67(mm), Weight: 5.51lbs/2.5Kg
Unlock Adjustable Delay: 0-15s
External Remote Templates :Yes
Charging Overload :Yes
Also act as the cabinet for the control board.
With power cable to insert to electric outlet box.
Control 2 doors,get in by swipe card/key fob, input PIN code or use card + PIN, and get out door by exit button or motion sensor.
Door controlled : 2
Support 2-4 readers.
Control of user capacity up to 20,000 user / up to 100,000 history records.
Network communication via TCP/IP.
Application software support Win7/Win8/Win10/Win11 both 32 & 64 bit ALL Windows system, not support MAC.
Support phone app to open door even you are not there.
2 Doors Access Control System with Metal 5A 110V-240V Power Supply Box and Two door TCP/IP Network Access Control Panel Wiegand Controller,remote open What the system can do: Power Supply Box: 2 Doors Network Access Control Panel: Sofeware Diagram:
We provide video guide+Detail wire diagram,so you can easily setup system.
Package include:
1pc 2 door Network Access-Control-Panel-Controller
1pc Power supply box( 110-240V input, 5A output, to power the whole system)
1pc User manual with Detail Instruction/Wire diagram/Video Guide
Basic funtion: swipe card/key fob open door, can check/download/export the detail history entrance record.
Easily add/delete/activate/disable the user open privilege by professional management software.
Support phone app to open door locally or remotely.
Can be used for high security area, the control board as master unit is put inside room.
Allow access for certain door at certain time for different users.
Can keep door auto open during business hour and then auto close at set time.Support holiday security control.
Can swipe certain times to keep open and swipe certain times to close door.
Can be used for user attendance check also.
A lot other features such as anti-pass back, 1st card open, multi-card open .etc.
......
Power60W, Rated Current5A
Input Voltage110V-240V, can be used all over the world.
Output: DC12V to power on the whole System(1114V can be fine-tuned).
Color of the boxblack
Size of the box10.98*9.21*2.64(inch)/279 * 234 * 67(mm), Weight: 5.51lbs/2.5Kg
Unlock Adjustable Delay: 0-15s
External Remote Templates :Yes
Charging Overload :Yes
Also act as the cabinet for the control board.
With power cable to insert to electric outlet box.
Control 2 doors,get in by swipe card/key fob, input PIN code or use card + PIN, and get out door by exit button or motion sensor.
Door controlled : 2
Support 2-4 readers.
Control of user capacity up to 20,000 user / up to 100,000 history records.
Network communication via TCP/IP.
Application software support Win7/Win8/Win10/Win11 both 32 & 64 bit ALL Windows system, not support MAC.
Support phone app to open door even you are not there.
2 Doors Access Control System with Metal 5A 110V-240V Power Supply Box and Two door TCP/IP Network Access Control Panel Wiegand Controller,remote open What the system can do: Power Supply Box: 2 Doors Network Access Control Panel: Sofeware Diagram:
