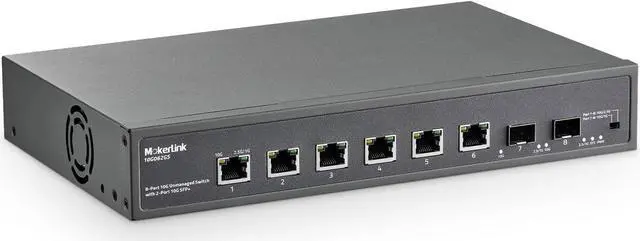

MokerLink 8 Port 10Gbps Ethernet Switch with 2x10G SFP+ Slot, 6 Port 10G RJ45 Support 10G/5G/2.5G/1000M/100M Auto-Negotiation, 160Gbps Bandwidth Unmanaged Plug and Play Desktop|RackMount Switch
- 10G Ethernet: 6 x 10Gbps ethernet ports, enable high-bandwidth connected, every port auto-adaptive 10G/5G/2.5G/1000M/100M, support wider rate range. 2 x 10Gbps SFP+ Slot, Compatible with 1G/2.5G/10G rate optical modules set by dip switches, support longer distance transmission through optical fiber.
- 160G Bandwidth: switching capacity is 160Gbps, 16K MAC address table, store and forward, MAC Auto-Learning and Aging, IEEE802.3X full-duplex flow control, Packet Forwarding Rate 119.04Mpps, all ports can achieve non-blocking 10G line speed forwarding, with excellent data performance.
- Network Protocol: Support IEEE 802.3ae (10G Ethernet), IEEE802.3bz (2.5G/5G Ethernet), IEEE802.3ab (Gigabit Ethernet), IEEE802.3x (Flow control), IEEE802.3az (Efficient and energy-saving). 1000Base-TX: Cat5 or above UTP(100m), 10000Base-T: Cat7 or above UTP(100m)
- Unmanaged Network Switch: Auto MDI/MDIX, auto-negotiation rate, just connect the power cord, and connect to the device through the network cable
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The 10G062GS is a full 10G unmanaged switch with 6x10GbE and 2x10GbE SFP+ open slots. 6 ethernet ports provide either 100M, 1G, 2.5G, 5G and 10G connectivity, as well as 2 SFP+ Fiber port with 1G or 10Gt connectivity. Each port automatically detects which speed is needed.

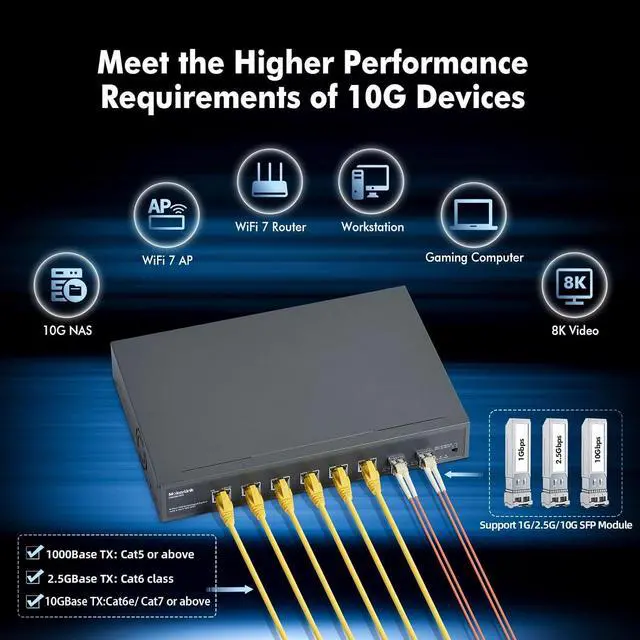

6× 10 Gbps ports smash the 10G barrier and unlock the full potential of WiFi 7/6 APs and NAS server.Supports cat5e and above cables, 10x faster network bandwidth.
2× 10 Gbps open SFP+ slots enable high-bandwidth, long-distance connectivity and non-blocking switching capacity. Adaptive 1G, 10G sfp modules that can connect to core servers and switches.
It supports the IEEE 802.3az Energy-Efficient Ethernetstandard(EEE). Switches automatically adjust power consumption according tothe link status and cable length, With metal housing and smart fan design, It can be placed virtually anywhere and operatesilently.
Flexible deployment options for rack-mount or desktip in your office and home, meet the network environment requirement.
Plug and play, unmanaged switch, No configuring is required. AutoMDI/MDI-X crossover on all ports eliminate the need for crossovercables.

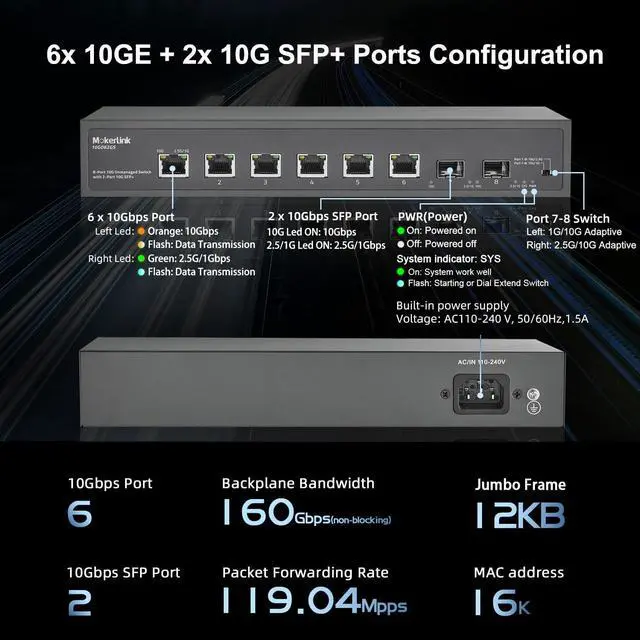

The port and power status LEDs on front panel provide a visual indication on what is physically wrong with the network switch.
Ports2*10G Base-X+6*1000/2500/5000/10000 Base-TSwitching Capacity160GbpsForwarding Rates119.04MppsMAC Address Table16KForwarding modeStore and forward Network StandardIEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab (Gigabit Ethernet) IEEE 802.3z (Gigabit Ethernet) IEEE 802.3ae (10 Gigabit Ethernet) IEEE802.3x (Flow Control)LED IndicatorsPWR, SYS, Link/ACT LED Power Input100-240V AC, 50-60 Hz, Internal Power SupplyMountingRack-mount / Desktop, Metal HousingStructure InformationProduct Dimensions 270*181*44mm, Packaging Dimensions :350*240*90mm, Product Net Weight: 1.30KG, Product Gross Weight:1.8KG EnvironmentOperating Temperature: 0~40°C, Storage Temperature: -40 °C to 70 °C, Operation Humidity: 10%~90%non condensing, Storage Humidity:5%~95%non condensing 10G switch
6× 10 Gbps ports smash the 10G barrier and unlock the full potential of WiFi 7/6 APs and NAS server.Supports cat5e and above cables, 10x faster network bandwidth.
2× 10 Gbps open SFP+ slots enable high-bandwidth, long-distance connectivity and non-blocking switching capacity. Adaptive 1G, 10G sfp modules that can connect to core servers and switches.
It supports the IEEE 802.3az Energy-Efficient Ethernetstandard(EEE). Switches automatically adjust power consumption according tothe link status and cable length, With metal housing and smart fan design, It can be placed virtually anywhere and operatesilently.
Flexible deployment options for rack-mount or desktip in your office and home, meet the network environment requirement.
Plug and play, unmanaged switch, No configuring is required. AutoMDI/MDI-X crossover on all ports eliminate the need for crossovercables.
The port and power status LEDs on front panel provide a visual indication on what is physically wrong with the network switch.
Ports2*10G Base-X+6*1000/2500/5000/10000 Base-TSwitching Capacity160GbpsForwarding Rates119.04MppsMAC Address Table16KForwarding modeStore and forward Network StandardIEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab (Gigabit Ethernet) IEEE 802.3z (Gigabit Ethernet) IEEE 802.3ae (10 Gigabit Ethernet) IEEE802.3x (Flow Control)LED IndicatorsPWR, SYS, Link/ACT LED Power Input100-240V AC, 50-60 Hz, Internal Power SupplyMountingRack-mount / Desktop, Metal HousingStructure InformationProduct Dimensions 270*181*44mm, Packaging Dimensions :350*240*90mm, Product Net Weight: 1.30KG, Product Gross Weight:1.8KG EnvironmentOperating Temperature: 0~40°C, Storage Temperature: -40 °C to 70 °C, Operation Humidity: 10%~90%non condensing, Storage Humidity:5%~95%non condensing 10G switch
