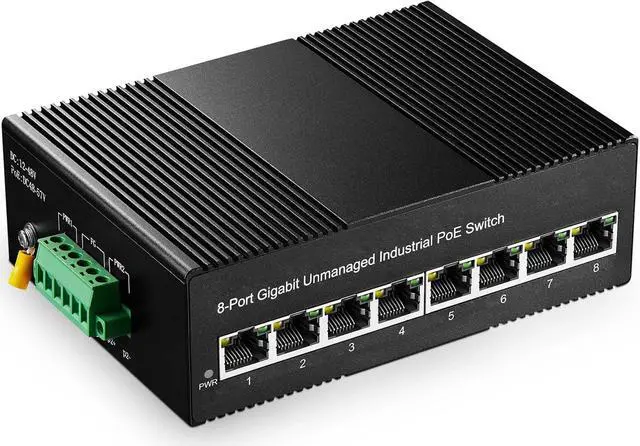

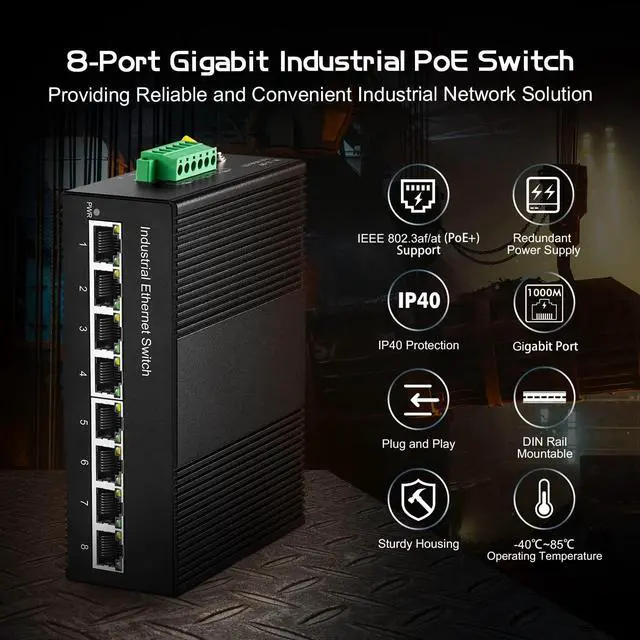

Binardat 8 Port Gigabit PoE Din Rail Industrial Ethernet Switch, 8 PoE IEEE802.3af/at, 16Gbps Switching Capacity, with One 96W PoE Power Supply

The ING08-080GP is a 8-port gigabit industrial PoE switch supports the IEEE 802.3af/at standard. Port 1-8 provide up to 30W via a single port. The switch is IP40-rated and DIN-rail/Wall mountable. It supports dual power input for power redundancy and wide working temperature range(-40 °C to 85 °C). The switch also provides high EFT and ESD protection for industrial networking applications such as outdoor security surveillance, ITS, power, factory and other outdoor or harsh environments.
Product characteristics
Ensure reliable data transmission and long service life.
Compliant with IEEE 802.3af(15.4W), IEEE802.3at(30W) PoE standards.
It supports full duplex or half duplex mode with automatic negotiation capability.
The network interface supports full-automatic intersection recognition
The built-in store and forward mechanism supports a variety of protocols.
Green energy saving, using low-power CPU.
Working power supply: DC48V-52V provides reverse connection protection and 4A overcurrent protection.
Lightning surge protection (power supply): 5000A (surge waveform is 8 / 20).
It meets the industrial operation standard, and the mean time between failures is more than 300000 Hour.

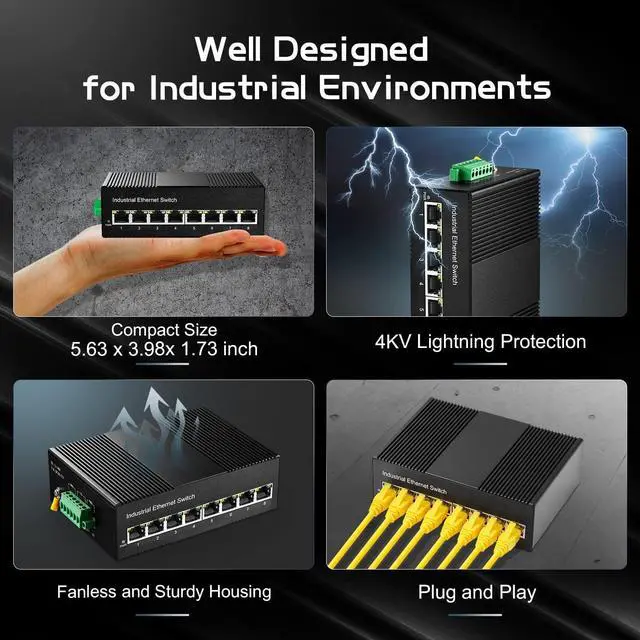

8-port industrial poe switch is equipped with rugged IP40 metal enclosure to withstand a high degree of vibration and shock, suitable for industrial environments.
The industrial poe switch is developed for challenging environments, such as outdoor security surveillance, ITS, power, factory. It is designed to withstand temperatures from -40 °C to 85 °C (-40 °F to 185 °F), making it perfect for high demanding installations.

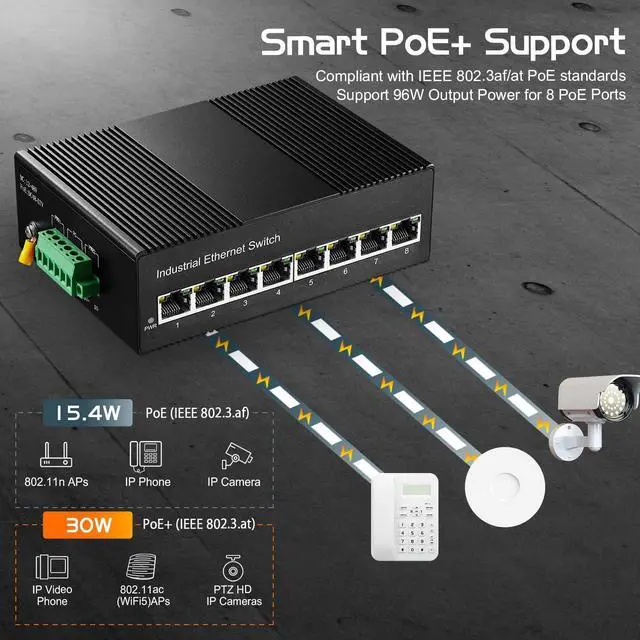

The 8 port industrial poe switch compliant with IEEE 802.3af/at PoE standards, it can automatically detect and provide the required power for your PoE devices, which can deliver up to 15.4W and 30W power on port 1-8.

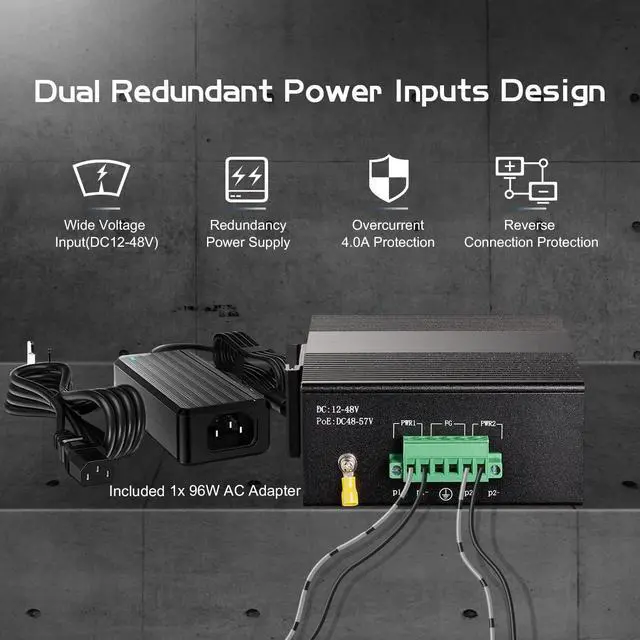

The industrial poe switch feature power redundancy design with overload current protection for enhanced reliability. A dual power input allows for a redundant power supply to ensure the network keeps running in the event of a primary power supply failure. (come with one 96W power supply)
The 8 port industrial poe switch features with fanless designthat ensures noiseless operation and greater reliability over time.
The 8port gigabit industrial PoE switch features non-blocking wire-speed architecture with 16Gbps switching capacity for maximum data throughput. It supports IEEE 802.3x flow control for full-duplex mode, and back pressure flow control for half-duplex mode alleviates traffic congestion and ensures reliable data transmission.
The industrial poe switch fetures with 4KV surge protection can adapt to harshoutdoor environment and ensure the reliability of the uninterruptednetwork system.
It is a unmanaged industrial switch. You can plug and play immediatelywith your network. There's no need to set anything up, and it has uniqueLED indicator design, you canquickly check working status.

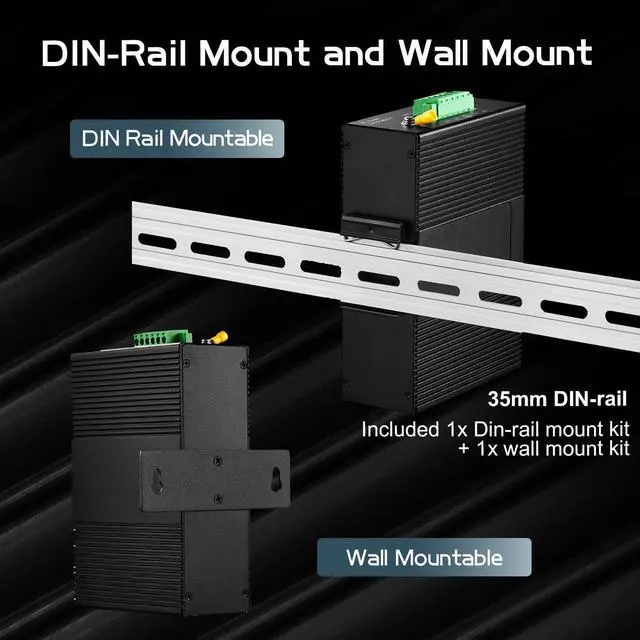

The industrial switch included 1* DIN-rail kit and 1*wall mount kit. It can be mounted on a 35mm din rail and wall easily.
ModelING08-080GPProduct Name8-port 10/100/1000Mbps Industrial Unmanaged PoE SwitchEthernet Port8* 1000Mbps PoE+ Ports Network ProtocolIEEE802.3 - CSMA/CD,IEEE802.3i - 10Base-T,IEEE802.3u - 100Base-TX/FX, IIEEE802.3x - flow controlPoE Standardmeet IEEE802.3af /IEEE802.3at, Single port maximum: 15.4W(IEEE 802.3af), Single port maximum: 30W (IEEE 802.3at), PoE Port output voltage: DC 48-57V, PoE Power supply core:1/2+ ; 3/6-Power SupplyInput voltage: DC48V-52V(dual power supply redundant backup),Access terminal: Phoenix terminal Support dual power redundancy, Support built-in overcurrent 4.0A protect, Support reverse grounding protectionSwitch PropertiesSwitching capacity: 14Gbps application level: layer 2, Overall packet forwarding rate: 2.976Mpps, Mac table : 8K, Package buffer: 1M, Delay time : < 4s, Switching mode: store forwar
