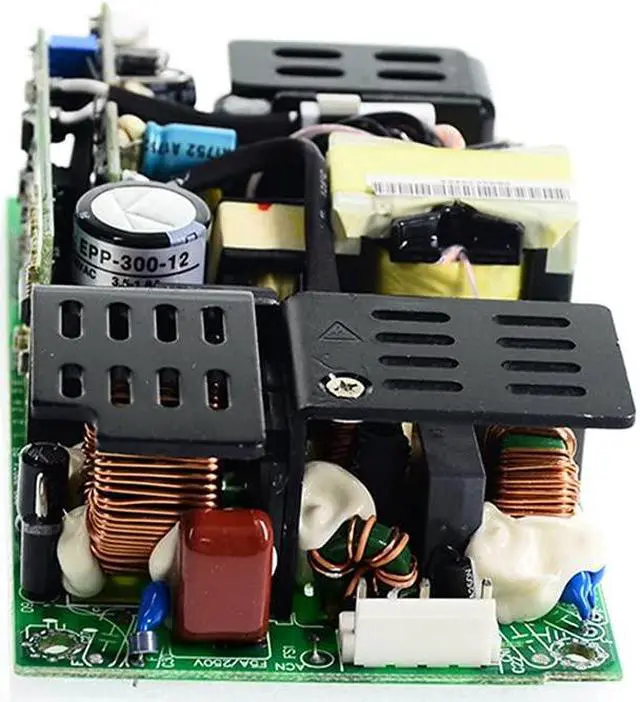

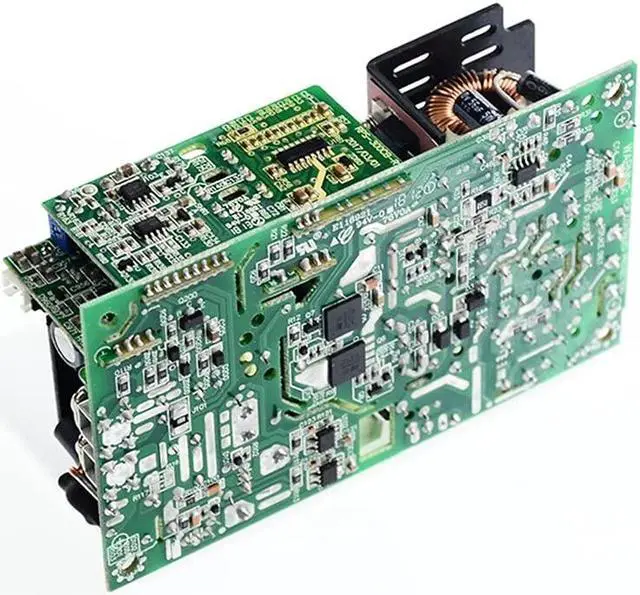

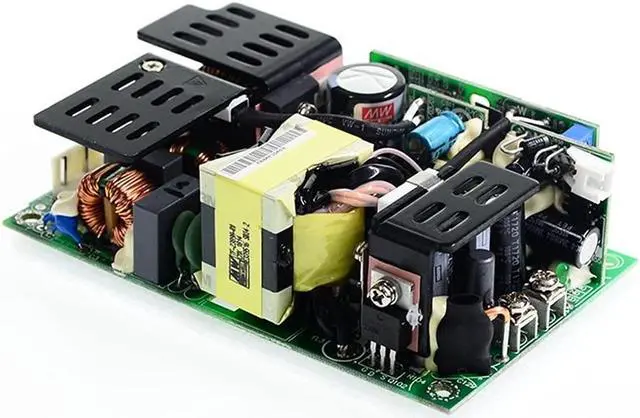

Original Mean Well EPP-300 Series 300W 12V Industrial Open Frame Power Supply 110V/220VAC to 12V DC 25A Green PCB Power Unit PSU Transformer with PFC
- Model EPP-300-12 PCB type power supply, 25A 300W(20.5CFM), 16.67A 200W(Convection)
- 5x 3 compact size
- Full range 90~264VAC input with built-in PFC function
- Free air convection for 200W and 300W with 20.5CFM forced air
- Built-in remote sense function
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features
5x 3compact size
Full range 90~264VAC input with built-in PFC function
Withstand 300VAC surge input for 5 seconds
High efficiency up to 93%
Protections: short circuit/overload/over voltage/over temperature
Free air convection for 200W and 300W with 20.5CFM forced air
Built-in 12V/0.5A auxiliary output
With power good and fail signal output
Built-in remote sense function
No load power consumption under 0.5W by PS-ON control
Standby 5V@1A with fan, @0.6A without fan
Operating altitude up to 5000 meters
3 years warranty
5x 3compact size
Full range 90~264VAC input with built-in PFC function
Withstand 300VAC surge input for 5 seconds
High efficiency up to 93%
Protections: short circuit/overload/over voltage/over temperature
Free air convection for 200W and 300W with 20.5CFM forced air
Built-in 12V/0.5A auxiliary output
With power good and fail signal output
Built-in remote sense function
No load power consumption under 0.5W by PS-ON control
Standby 5V@1A with fan, @0.6A without fan
Operating altitude up to 5000 meters
3 years warranty
