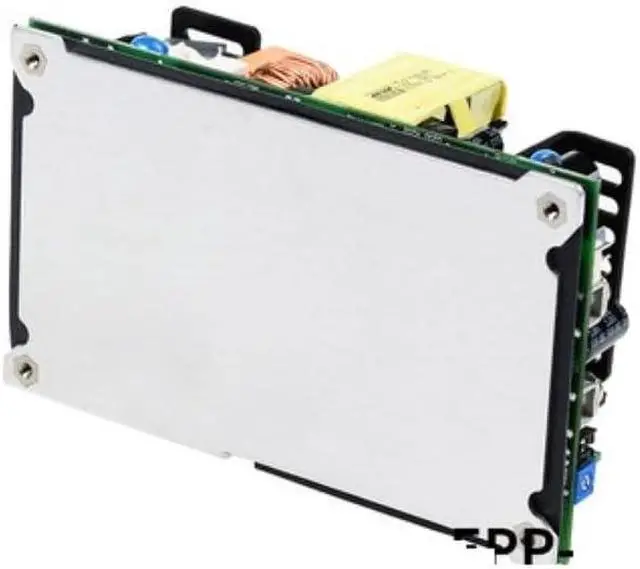

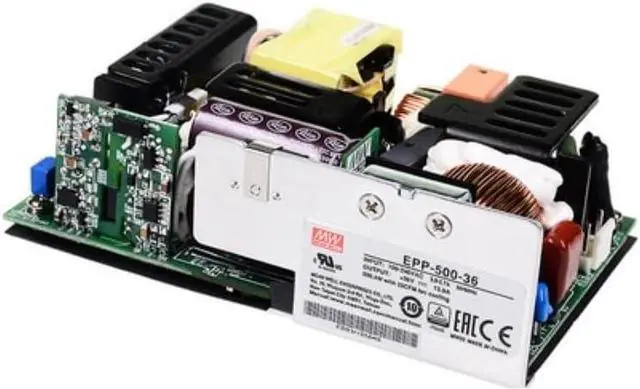

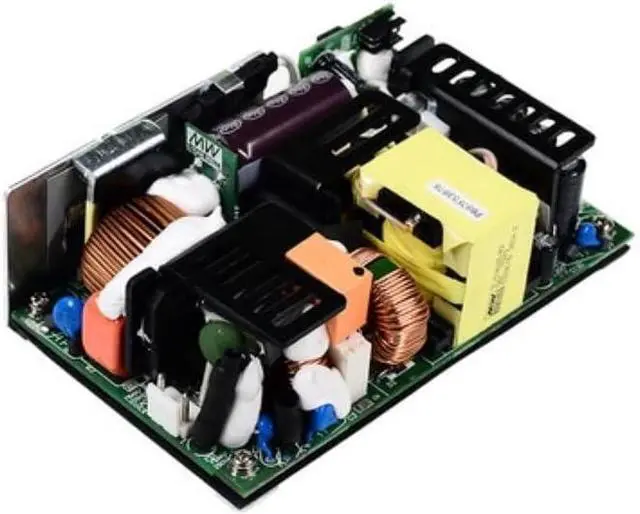

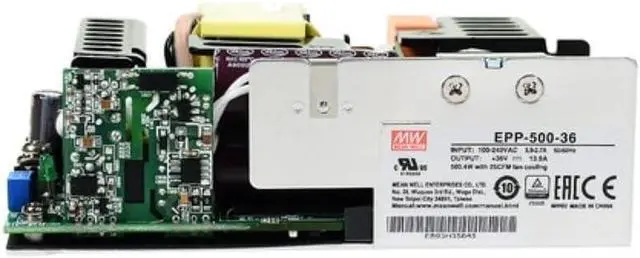

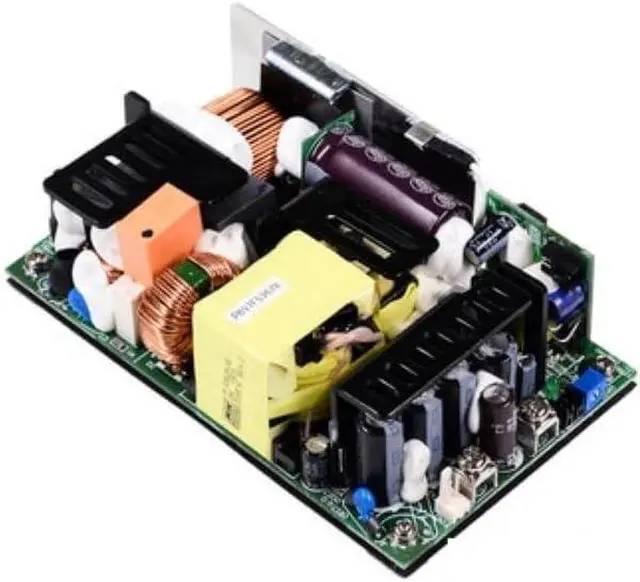

MW Mean Well EPP-500-27 5"x3"Green Open Frame Power Supply EPP-500
- 550W peak power (3sec.)
- EMl for both Class I & Class Il configuration
- -30~+70 wide range operating temperature
- No load power consumption<0.5W by PS_ON control
- High efficiency up to 94%
- Protections: Short circuit / Overload / Over voltage /Over temperature
- 5Vdc standby output,12Vdc fan supply, Power Good,Power Fail and remote sense
- Operating altitude up to 5000 meters (Note.5)
- LED indicator for power on
- Welcome to visit, the main picture above the product specifications, please read carefully, have any questions can consult us, we will answer for you.If you need to purchase more quantities, please contact customer service.
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
EPP-500 is a 500W highly reliable green PCB type power supply with a high power density on the 5" by 3"footprint. It accepts 80~264VAC input and offers various output voltages between 12V and 54V. The working efficiency is up to 94% and the extremely low no load power consumption is down below 0.5w.EPP-500 is able to be used for both Class I (with FG) and Class ll (no FG) system design.EPP-500has complete protection functions; it is complied with the international safety regulations such as TuvBS EN/EN62368-1,TUV BS EN/EN60335-1,UL62368-1 and lEC62368-1.EPP-500 series serves as ahigh price-to-performance power supply solution for various industrial applications.
