20A Power Supply Module DC-DC 6V-40V to 1.2V-35V Step Down Buck Converter Adjustable Buck Adapter CVCC Constant Voltage Constant Current Converter LED Driver

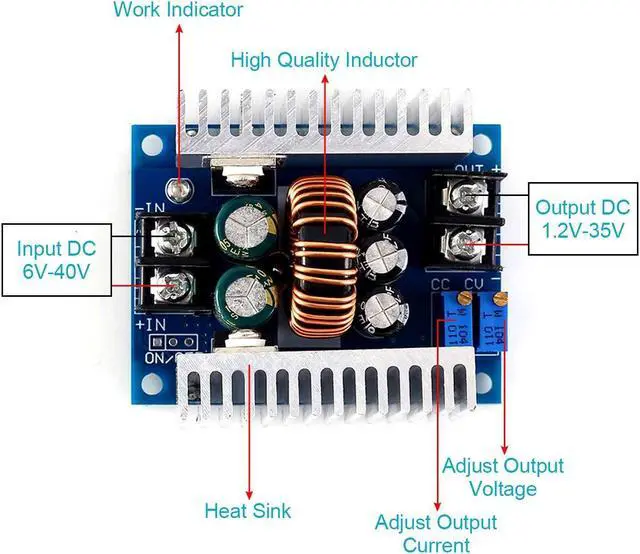

Adopting 75V / 80A large current dual MOS tube designed step-down board, Input and output use high frequency low resistance electrolytic capacitor, low ripple, and gives a stable output. Large current 30A connection screw terminals, more convenient to install

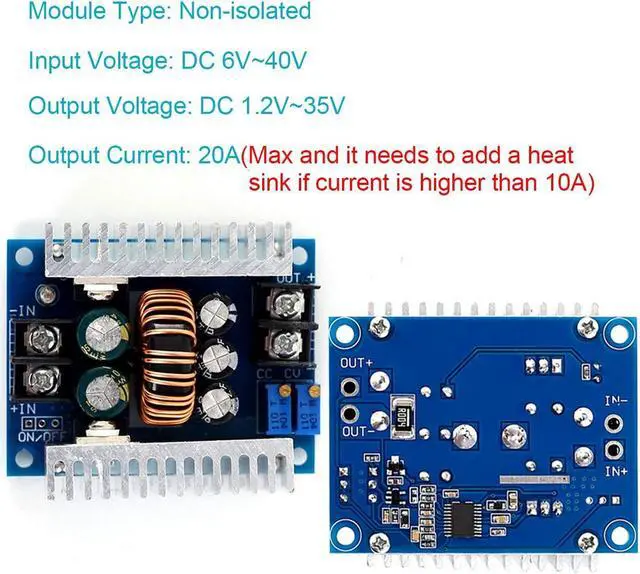

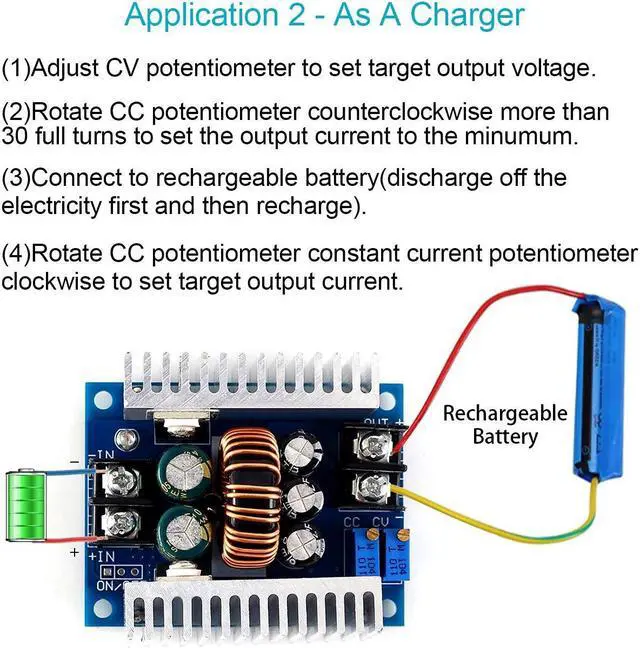

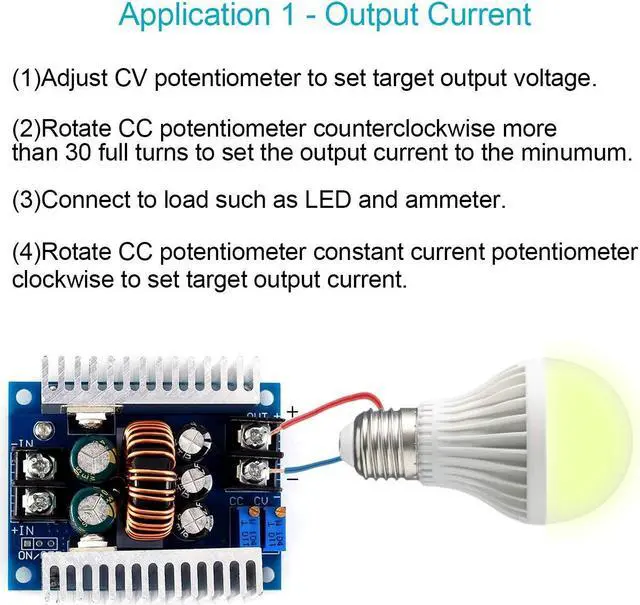

Converter input voltage range is DC 6-40V, adjustable output voltage range is DC 1.2 -35V, can be used to convert 24v to 12v 5v, adjustable output current range is 0-20A, max output power is 300W. The step down regulator can apply to constant output current
With a wide input voltage range from 6V to 40V, the step-down converter can accurately adjust output voltage and current. The efficiency can be up to 95%, (measured at 20A, converting 24V to 12V).
Short Circuit Protection: Self-recovery (cannot short circuit for long time). Plus, when input and output is common grounded, no-load CV output constant voltage, CC output constant current
Application: Fit for DIY stabilized voltage supply, LED car display, mobile power, industrial equipment appliances, LED driver, monitor, solar energy, fans, photovoltaic energy, motor, and more
Package Includes: 1x 20A Power Supply Module
