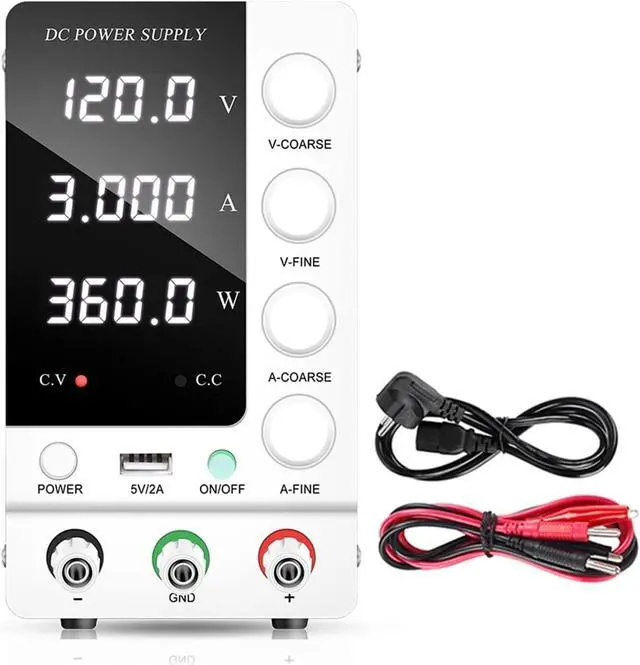

Regulated Power Supply, 120V 3A USB DC Switching Power Supply Lab Adjustable Voltage Regulator 30V 10A Stabilizer Switch Bench Power Source Reliability and Safety (Color : GU-SPS-C1203-White, Size :
- Working environment: -10 - + 40 Relative humidity 20% -80% (non-condensing)
- Storage Environment: -20 - + 80 Relative humidity 20% -70% (non-condensing)
- Pressure test: Input - Output: 1.5KVAC / 1 Minute
- Input - Housing: 1.5KVAC / 1 Minute
- Output - Housing: 500VAC / 1 Minute
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Display Accuracy:
1% 1 word (three / three and a half digital display, voltage resolution 0.1V, current resolution 0.1A)
0.1% 1 word (four / four semi-digital display, voltage resolution 0.01V, current resolution 0.01A)
Boot delay: 1-2S Shutdown Delay: 1-6S (depending on the load)
Voltage Stability: 0.05% + 1mV
The current stability: 0.1% + 10mA
Load stability: CV0.05% + 1mV
CC0.05% + 10mA
Ripple and Noise: CV10mV
Overall efficiency: 80% (under full load test)
Working environment: -10 - + 40 Relative humidity 20% -80% (non-condensing)
Storage Environment: -20 - + 80 Relative humidity 20% -70% (non-condensing)
Pressure test: Input - Output: 1.5KVAC / 1 Minute
Input - Housing: 1.5KVAC / 1 Minute
Output - Housing: 500VAC / 1 Minute
<;20m
1.Have complete operating protection function
2.Highly efficient, low ripple, small volume, light weight

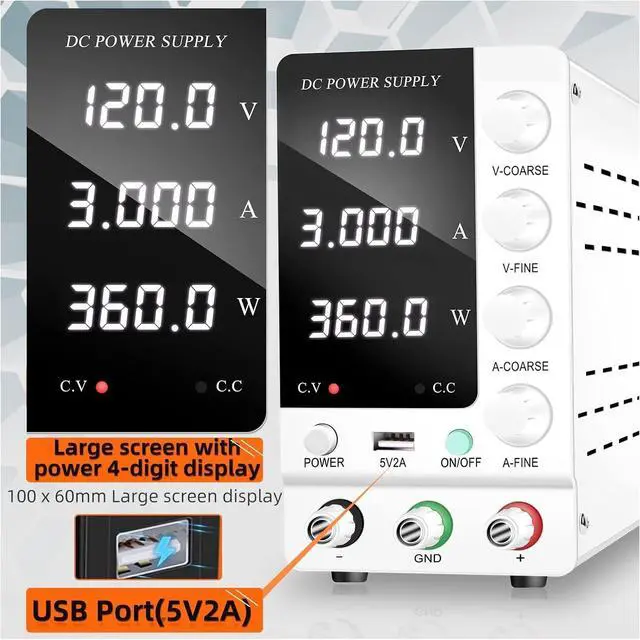

3.Double display voltage, current, and high precision
4.Voltage stabilization, current limiting, simple operation
5.Dual voltage input and convenient choice

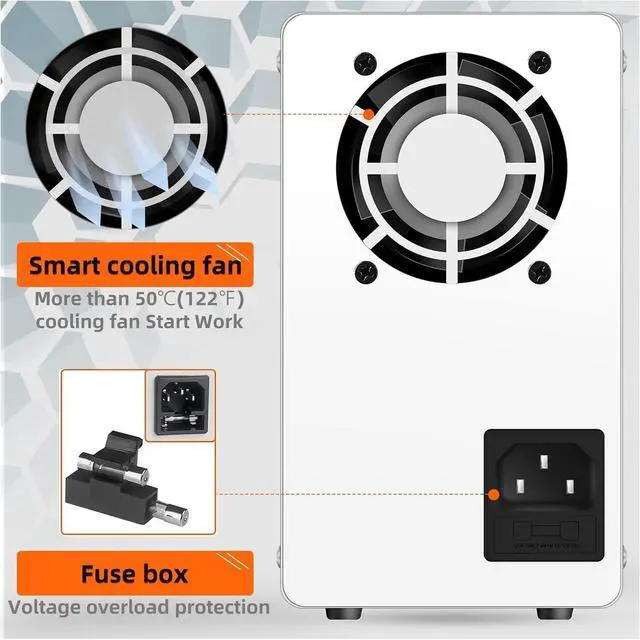

6.Temperature control fan heat dissipation, low noise

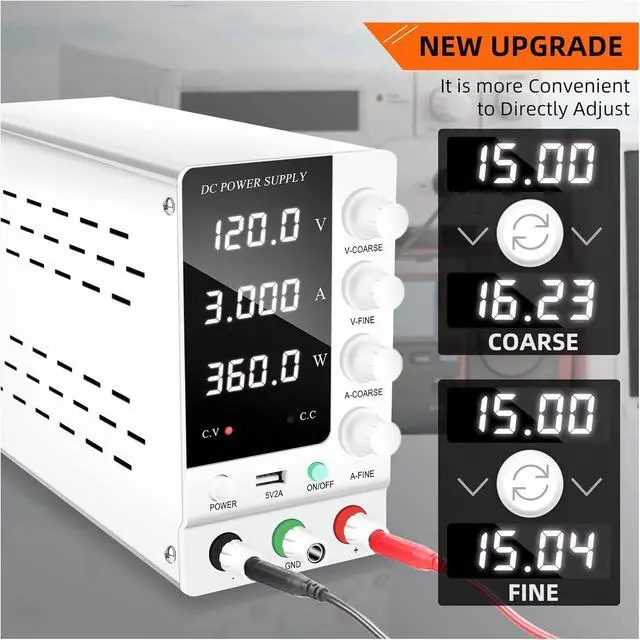

7.Double potentiometer more precise adjustment

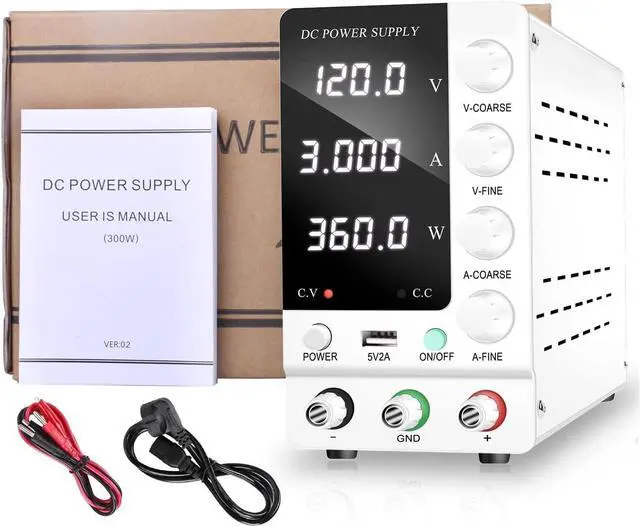

1X Power supply
1X Power cable
1X output line
1X Instruction Book
1X Box
1% 1 word (three / three and a half digital display, voltage resolution 0.1V, current resolution 0.1A)
0.1% 1 word (four / four semi-digital display, voltage resolution 0.01V, current resolution 0.01A)
Boot delay: 1-2S Shutdown Delay: 1-6S (depending on the load)
Voltage Stability: 0.05% + 1mV
The current stability: 0.1% + 10mA
Load stability: CV0.05% + 1mV
CC0.05% + 10mA
Ripple and Noise: CV10mV
Overall efficiency: 80% (under full load test)
Working environment: -10 - + 40 Relative humidity 20% -80% (non-condensing)
Storage Environment: -20 - + 80 Relative humidity 20% -70% (non-condensing)
Pressure test: Input - Output: 1.5KVAC / 1 Minute
Input - Housing: 1.5KVAC / 1 Minute
Output - Housing: 500VAC / 1 Minute
<;20m
1.Have complete operating protection function
2.Highly efficient, low ripple, small volume, light weight
3.Double display voltage, current, and high precision
4.Voltage stabilization, current limiting, simple operation
5.Dual voltage input and convenient choice
6.Temperature control fan heat dissipation, low noise
7.Double potentiometer more precise adjustment
1X Power supply
1X Power cable
1X output line
1X Instruction Book
1X Box
