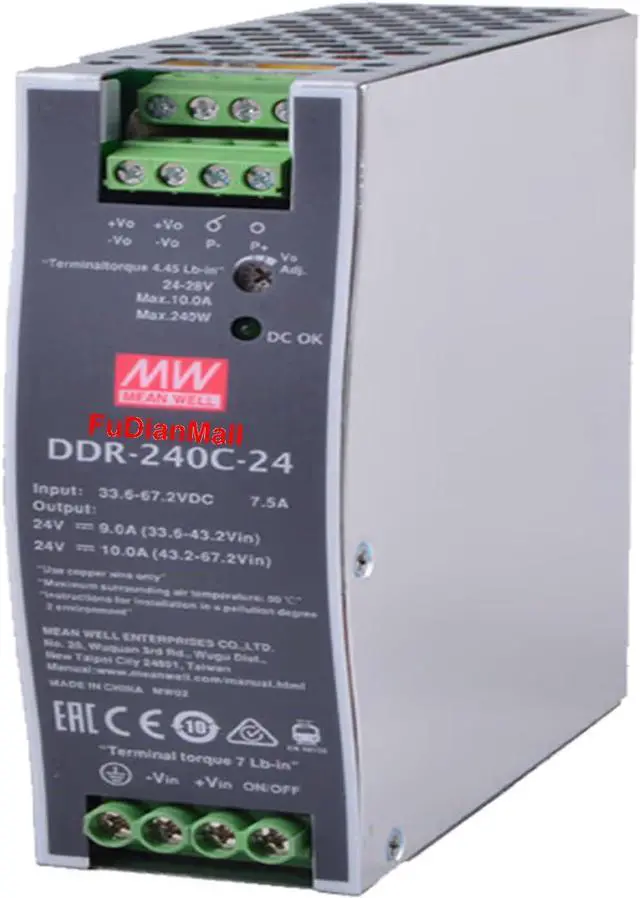

Mean Well DDR-240C-24 240W DIN Rail Type DC-DC Converter 24V 10A Power Supply
- Ultra Slim Design: Width only 40mm for space-saving installation in compact DIN rail applications
- Wide Operating Temperature Range: Functions reliably in extreme conditions from -40C to +70C for demanding industrial environments
- Peak Load Capability: Delivers 150% peak load capacity to handle temporary power surges and startup requirements

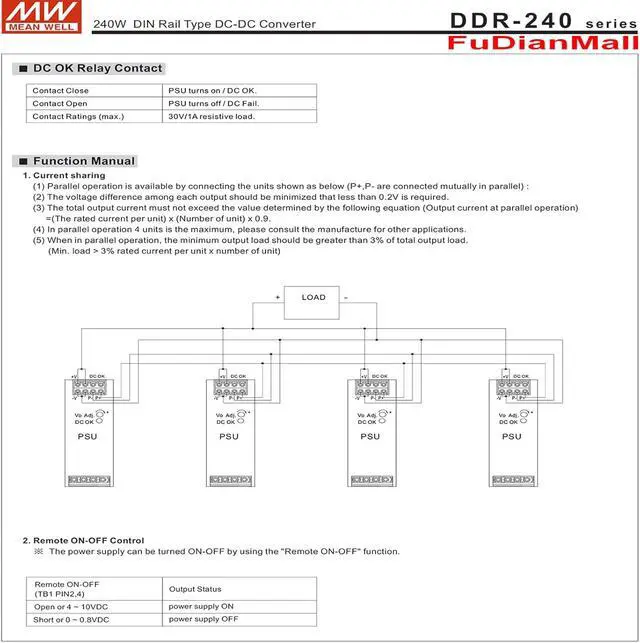

- Current Sharing Function: Supports parallel operation with current sharing up to 960W in 3+1 configuration for increased power output

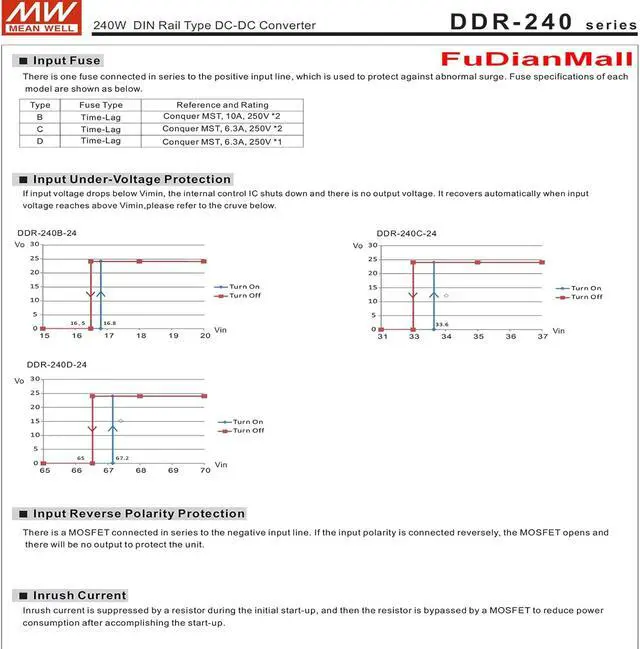

- Comprehensive Protection Features: Includes short circuit, overload, over voltage, over temperature, input reverse polarity, and input under voltage protection
- High Isolation Rating: Features 4KVdc input to output isolation for enhanced safety and system reliability
- Flexible Input Voltage: 2:1 wide input voltage range accommodates various DC power sources for versatile applications
- Fanless Design: Silent operation with natural convection cooling eliminates noise and maintenance requirements
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Ultra Slim Design: Width only 40mm for space-saving installation in compact DIN rail applications
Wide Operating Temperature Range: Functions reliably in extreme conditions from -40C to +70C for demanding industrial environments
Peak Load Capability: Delivers 150% peak load capacity to handle temporary power surges and startup requirements
Current Sharing Function: Supports parallel operation with current sharing up to 960W in 3+1 configuration for increased power output
Comprehensive Protection Features: Includes short circuit, overload, over voltage, over temperature, input reverse polarity, and input under voltage protection
High Isolation Rating: Features 4KVdc input to output isolation for enhanced safety and system reliability
Flexible Input Voltage: 2:1 wide input voltage range accommodates various DC power sources for versatile applications
Fanless Design: Silent operation with natural convection cooling eliminates noise and maintenance requirements
Wide Operating Temperature Range: Functions reliably in extreme conditions from -40C to +70C for demanding industrial environments
Peak Load Capability: Delivers 150% peak load capacity to handle temporary power surges and startup requirements
Current Sharing Function: Supports parallel operation with current sharing up to 960W in 3+1 configuration for increased power output
Comprehensive Protection Features: Includes short circuit, overload, over voltage, over temperature, input reverse polarity, and input under voltage protection
High Isolation Rating: Features 4KVdc input to output isolation for enhanced safety and system reliability
Flexible Input Voltage: 2:1 wide input voltage range accommodates various DC power sources for versatile applications
Fanless Design: Silent operation with natural convection cooling eliminates noise and maintenance requirements
