Mean Well DDR-480B-12 480W DIN Rail Type DC-DC Converter 12V 33.4A Fully Modular Power Supply
- Wide Operating Temperature Range: Functions reliably in extreme conditions from -40C to +80C for demanding industrial environments
- Peak Load Capability: Delivers 150% peak load capability to handle temporary power surges and startup requirements

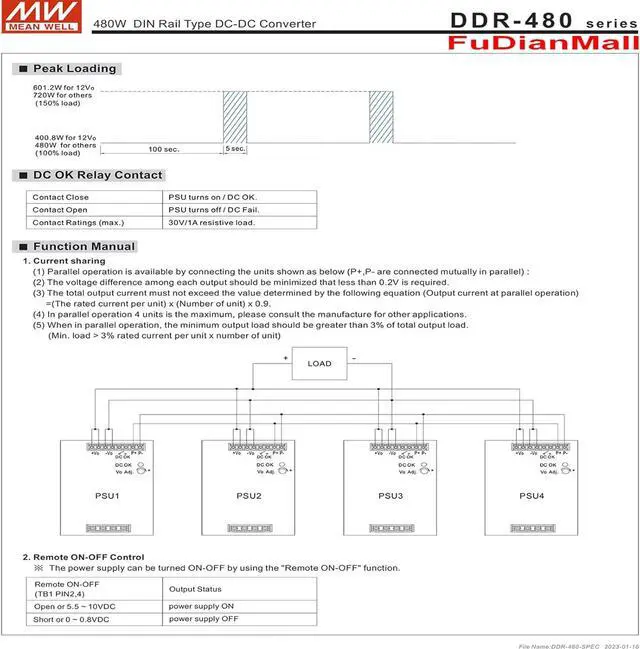

- Current Sharing Function: Supports current sharing up to 1920W with 3+1 configuration for expanded power capacity
- DIN Rail Installation: Can be easily installed on standard DIN rail TS-35/7.5 or 15 for convenient mounting
- Reinforced Isolation: Features 4KVdc input/output isolation with reinforced isolation for enhanced safety and protection
- Ultra Slim Design: Compact width of 85.5mm allows space-saving installation in tight cabinet configurations
- Fanless Operation: Operates without a fan for silent performance and maintenance-free reliability
- Multiple Voltage Options: Available in 12V 33.4A, 24V 20A, and 48V 10A output configurations to suit various applications
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Wide Operating Temperature Range: Functions reliably in extreme conditions from -40C to +80C for demanding industrial environments
Peak Load Capability: Delivers 150% peak load capability to handle temporary power surges and startup requirements
Current Sharing Function: Supports current sharing up to 1920W with 3+1 configuration for expanded power capacity
DIN Rail Installation: Can be easily installed on standard DIN rail TS-35/7.5 or 15 for convenient mounting
Reinforced Isolation: Features 4KVdc input/output isolation with reinforced isolation for enhanced safety and protection
Ultra Slim Design: Compact width of 85.5mm allows space-saving installation in tight cabinet configurations
Fanless Operation: Operates without a fan for silent performance and maintenance-free reliability
Multiple Voltage Options: Available in 12V 33.4A, 24V 20A, and 48V 10A output configurations to suit various applications
Peak Load Capability: Delivers 150% peak load capability to handle temporary power surges and startup requirements
Current Sharing Function: Supports current sharing up to 1920W with 3+1 configuration for expanded power capacity
DIN Rail Installation: Can be easily installed on standard DIN rail TS-35/7.5 or 15 for convenient mounting
Reinforced Isolation: Features 4KVdc input/output isolation with reinforced isolation for enhanced safety and protection
Ultra Slim Design: Compact width of 85.5mm allows space-saving installation in tight cabinet configurations
Fanless Operation: Operates without a fan for silent performance and maintenance-free reliability
Multiple Voltage Options: Available in 12V 33.4A, 24V 20A, and 48V 10A output configurations to suit various applications
