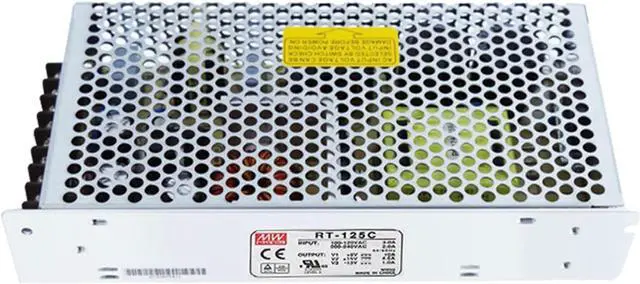

Mean Well 125W Triple Output Switching Power Supply Laboratory Convert-A-Bench Dc Power Supply Semi Modular PSU Variable Transformer (RT-125C 132.5W/Triple Output Switching)

NEW, MEAN WELL Power Supply.
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3.Tolerance : includes set up tolerance, line regulation and load regulation. (ln order to meet tolerance, it is recommended that CH1 load > 15% rated current for A, B,D type and CH1 load > 20% rated current for C type.)
4.Line regulation is measured from low line to high line at rated load.
5.Load regulation is measured from 20% to 100% rated load, and other output at 60% rated load.
6.Each output can work within current range. But total output power can't exceed rated output power.
7.The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to EMl testing of component power supplies.
8.Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up time.
9.Testing harmonic current at 85%load.
10.The ambient temperature derating of 3.5/1000m with fanless models and of 5/1000m with fan models for operating altitude higher than 2000m(6500ft).
