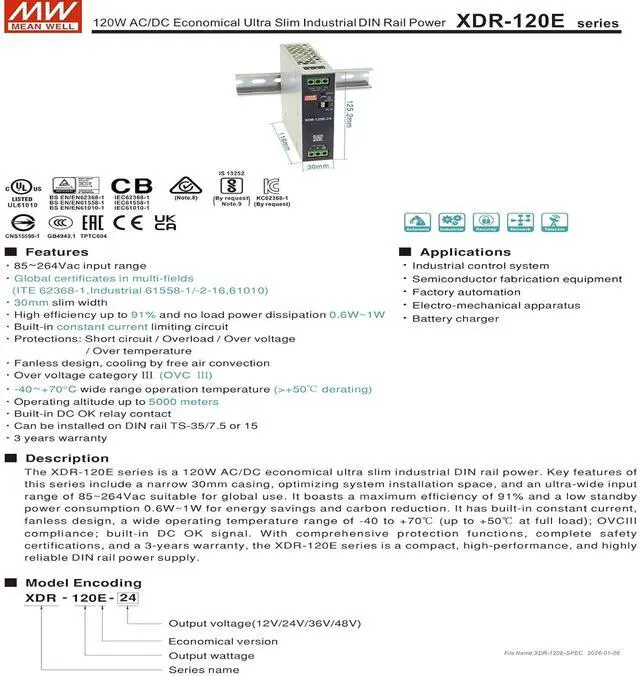

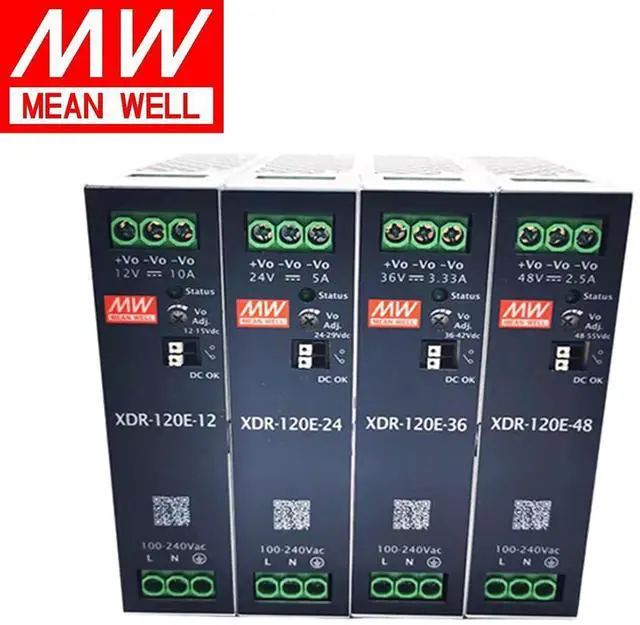

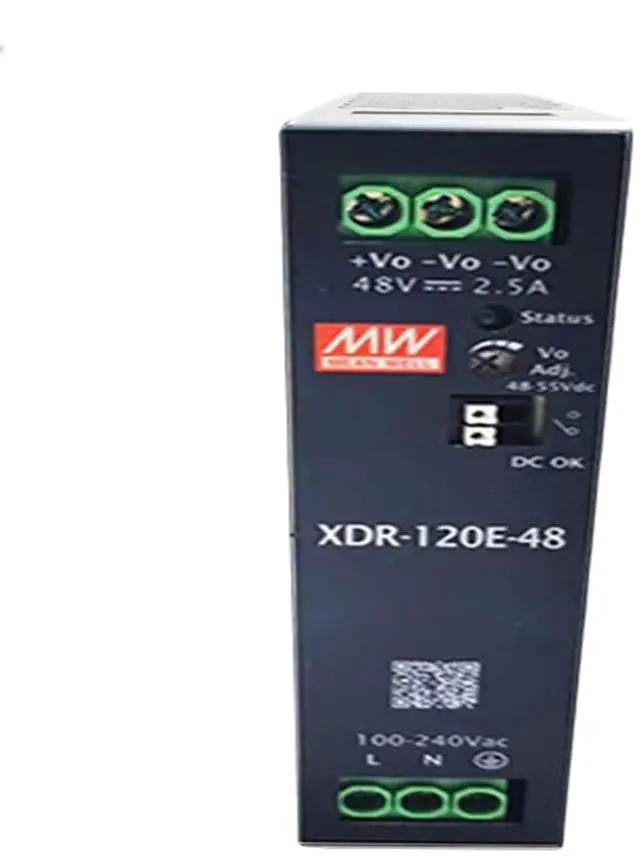

Mean Well 120W AC/DC Economical Ultra Slim Industrial DIN Rail Power Supply 48V 2.5A Semi-Modular (XDR-120E-48)
- High Efficiency Performance: Achieves up to 91% efficiency with minimal no load power dissipation of only 0.6W to 1W for optimal energy savings
- Built-in Protection Circuit: Features constant current limiting circuit to protect against overload conditions and ensure safe operation
- Fanless Cooling Design: Operates silently with natural free air convection cooling, eliminating the need for noisy fans and moving parts
- Over Voltage Category III Compliance: Meets OVC III standards for enhanced electrical safety in industrial and commercial applications
- Wide Operating Temperature Range: Functions reliably in extreme conditions from -40C to +70C with derating above +50C for extended lifespan
- Ultra Slim DIN Rail Design: Features a narrow 30mm casing that optimizes installation space on standard DIN rails in control panels
- Universal Input Voltage: Accepts ultra-wide input range of 85 to 264Vac making it suitable for global use across different power grids
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
High Efficiency Performance: Achieves up to 91% efficiency with minimal no load power dissipation of only 0.6W to 1W for optimal energy savings
Built-in Protection Circuit: Features constant current limiting circuit to protect against overload conditions and ensure safe operation
Fanless Cooling Design: Operates silently with natural free air convection cooling, eliminating the need for noisy fans and moving parts
Over Voltage Category III Compliance: Meets OVC III standards for enhanced electrical safety in industrial and commercial applications
Wide Operating Temperature Range: Functions reliably in extreme conditions from -40C to +70C with derating above +50C for extended lifespan
Ultra Slim DIN Rail Design: Features a narrow 30mm casing that optimizes installation space on standard DIN rails in control panels
Universal Input Voltage: Accepts ultra-wide input range of 85 to 264Vac making it suitable for global use across different power grids
Built-in Protection Circuit: Features constant current limiting circuit to protect against overload conditions and ensure safe operation
Fanless Cooling Design: Operates silently with natural free air convection cooling, eliminating the need for noisy fans and moving parts
Over Voltage Category III Compliance: Meets OVC III standards for enhanced electrical safety in industrial and commercial applications
Wide Operating Temperature Range: Functions reliably in extreme conditions from -40C to +70C with derating above +50C for extended lifespan
Ultra Slim DIN Rail Design: Features a narrow 30mm casing that optimizes installation space on standard DIN rails in control panels
Universal Input Voltage: Accepts ultra-wide input range of 85 to 264Vac making it suitable for global use across different power grids
