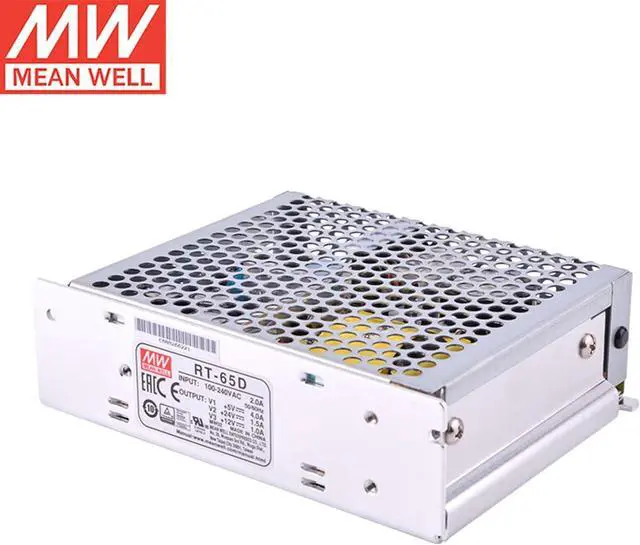

Mean Well 65W Triple Output Switching Power Supply Bench Variable Power Supply Micro ATX Power Supplies (RT-65D 68W/Triple Output Switching)
- Efficient Cooling System: Cooling by free air convection ensures reliable operation without the need for additional fans
- Power Status Indicator: LED indicator for power on provides clear visual confirmation of operational status
- Rigorous Quality Testing: 100% full load burn-in test ensures reliability and performance under maximum operating conditions
- Long-Life Components: All using 105 long life electrolytic capacitors for extended durability and stable performance
- Surge Protection: Withstand 300VAC surge input for 5 seconds providing robust protection against power fluctuations
- Triple Output Configuration: 68W triple output switching design delivers versatile power distribution for multiple device connections
- Compact Design: Micro ATX form factor allows for easy integration into space-constrained applications and equipment
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
NEW, MEAN WELL Power Supply.

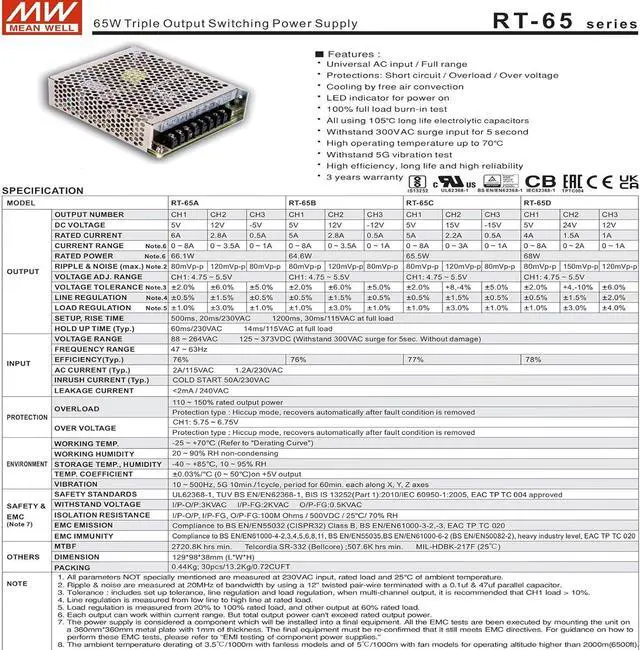

1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3.Tolerance : includes set up tolerance, line regulation and load regulation, when multi-channel output, it is recommended that CH1 load > 10%.
4.Line regulation is measured from low line to high line at rated load.
5.Load regulation is measured from 20% to 100% rated load, and other output at 60% rated load.
6.Each output can work within current range. But total output power can't exceed rated output power.
7.The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to EMI testing of component power supplies.
8.The ambient temperature derating of 3.5/1000m with fanless models and of 5/1000m with fan models for operating altitude higher than 2000m(6500ft).
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3.Tolerance : includes set up tolerance, line regulation and load regulation, when multi-channel output, it is recommended that CH1 load > 10%.
4.Line regulation is measured from low line to high line at rated load.
5.Load regulation is measured from 20% to 100% rated load, and other output at 60% rated load.
6.Each output can work within current range. But total output power can't exceed rated output power.
7.The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to EMI testing of component power supplies.
8.The ambient temperature derating of 3.5/1000m with fanless models and of 5/1000m with fan models for operating altitude higher than 2000m(6500ft).
