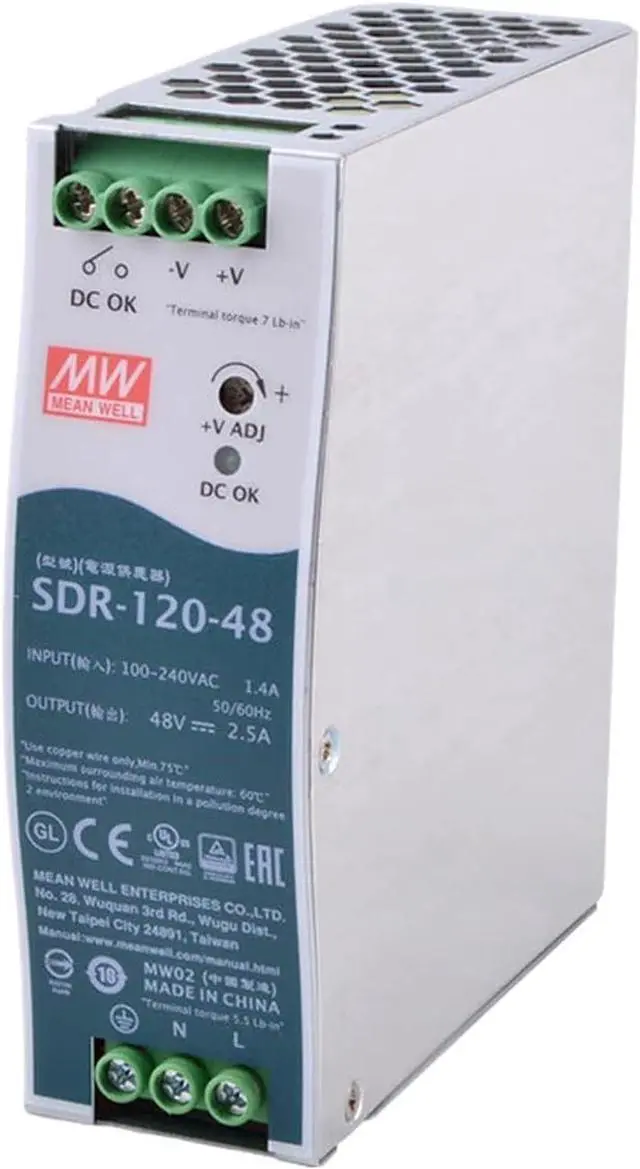

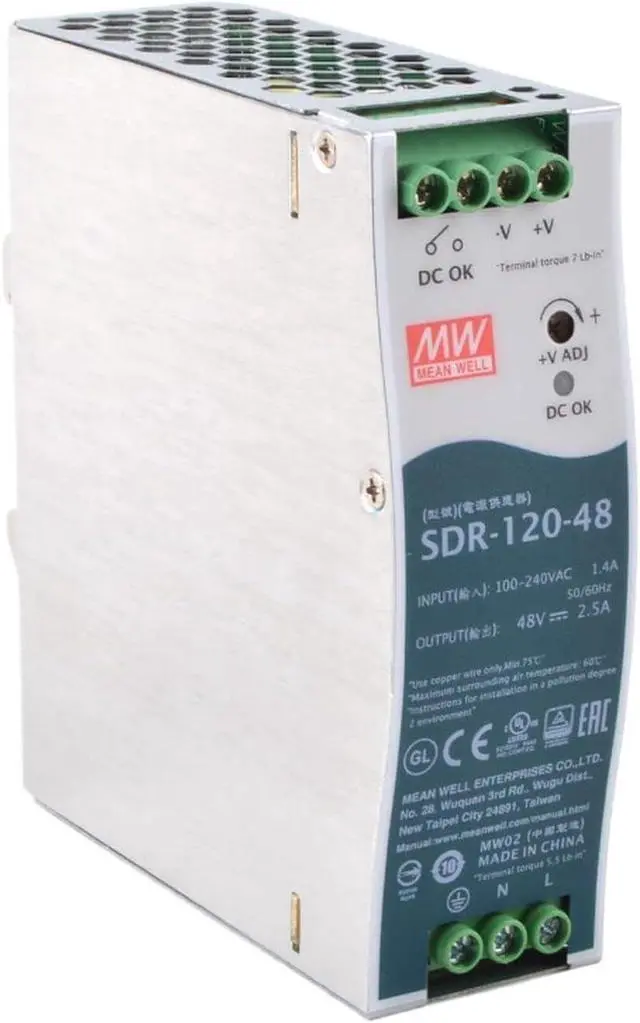

SDR-120-48 48V 2.5A 120W DIN-Rail Power Supply 91% Efficiency / UL508 Certified/DC OK Relay Output for Industrial PoE Switches, CCTV Security, Telecommunication Equipment, Stepper Motors
- Industrial-Grade Reliability & Long Lifespan MTBF up to 1.76 million hours, UL508 certified, full-load burn-in test, fanless natural cooling, 3-year warranty
- 91% High Efficiency & 150% Peak Power Efficiency of 90.5%. 150% peak power (180W for 3 seconds) easily handles motor startup and PoE camera PTZ surges
- Native 48V Output Ideal for PoE 48V/2.5A (adjustable to 55V), directly compliant with IEEE 802.3af/at/bt standards. Suitable for industrial PoE switches, 5G routers, and stepper drivers. Ripple 120mVp-p
- Wide Temperature Operation & Full Protection Operating temperature -25 ~ +70. Quadruple protection: overload, over-voltage, over-temperature, short circuit. Passed heavy industrial immunity EN61000-6-2

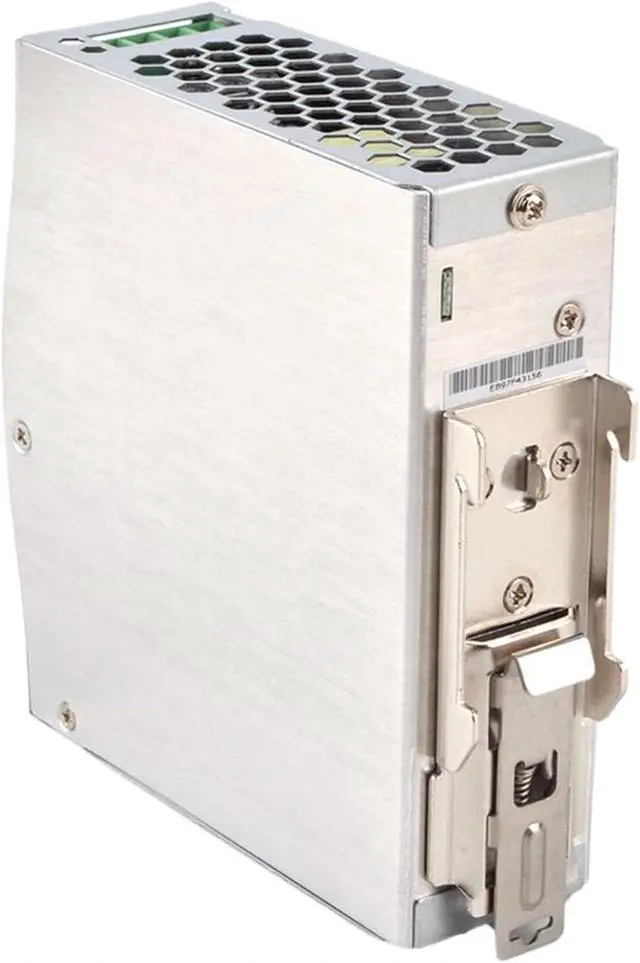

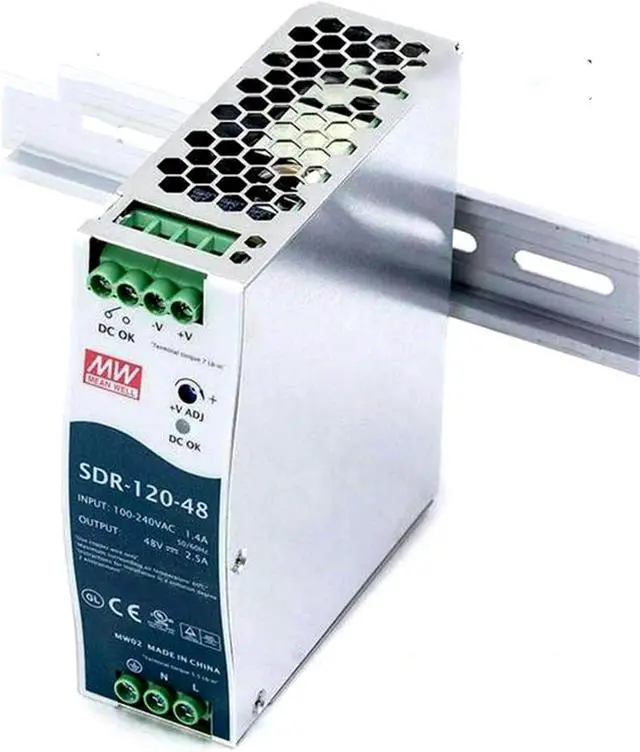

- Compact DIN-Rail Mount & Intelligent Monitoring Ultra-slim 40mm body, TS-35 DIN-rail mounting. Built-in DC OK relay contact (30VDC/1A), connectable to PLC or alarm lamp for real-time monitoring
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Industrial-Grade Reliability & Long Lifespan MTBF up to 1.76 million hours, UL508 certified, full-load burn-in test, fanless natural cooling, 3-year warranty
91% High Efficiency & 150% Peak Power Efficiency of 90.5%. 150% peak power (180W for 3 seconds) easily handles motor startup and PoE camera PTZ surges
Native 48V Output Ideal for PoE 48V/2.5A (adjustable to 55V), directly compliant with IEEE 802.3af/at/bt standards. Suitable for industrial PoE switches, 5G routers, and stepper drivers. Ripple 120mVp-p
Wide Temperature Operation & Full Protection Operating temperature -25 ~ +70. Quadruple protection: overload, over-voltage, over-temperature, short circuit. Passed heavy industrial immunity EN61000-6-2
Compact DIN-Rail Mount & Intelligent Monitoring Ultra-slim 40mm body, TS-35 DIN-rail mounting. Built-in DC OK relay contact (30VDC/1A), connectable to PLC or alarm lamp for real-time monitoring
91% High Efficiency & 150% Peak Power Efficiency of 90.5%. 150% peak power (180W for 3 seconds) easily handles motor startup and PoE camera PTZ surges
Native 48V Output Ideal for PoE 48V/2.5A (adjustable to 55V), directly compliant with IEEE 802.3af/at/bt standards. Suitable for industrial PoE switches, 5G routers, and stepper drivers. Ripple 120mVp-p
Wide Temperature Operation & Full Protection Operating temperature -25 ~ +70. Quadruple protection: overload, over-voltage, over-temperature, short circuit. Passed heavy industrial immunity EN61000-6-2
Compact DIN-Rail Mount & Intelligent Monitoring Ultra-slim 40mm body, TS-35 DIN-rail mounting. Built-in DC OK relay contact (30VDC/1A), connectable to PLC or alarm lamp for real-time monitoring
