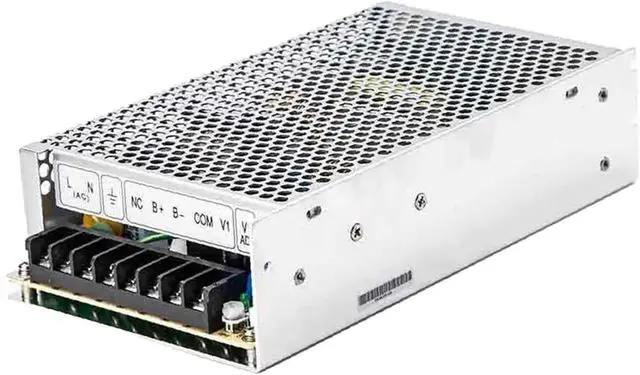

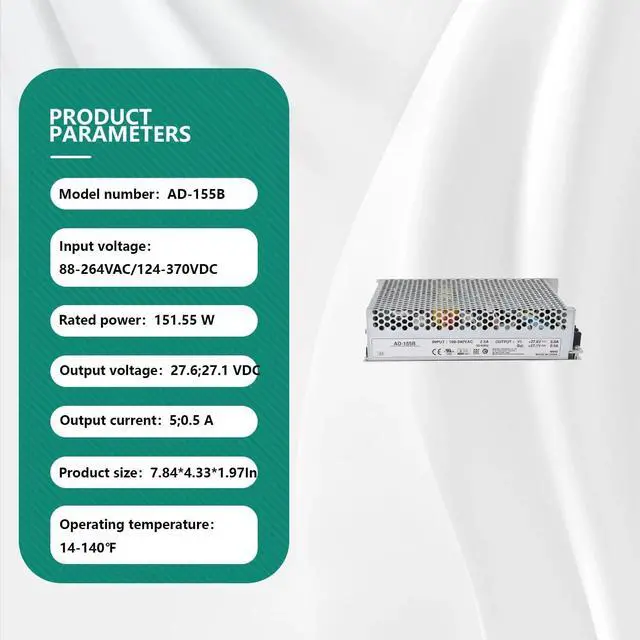

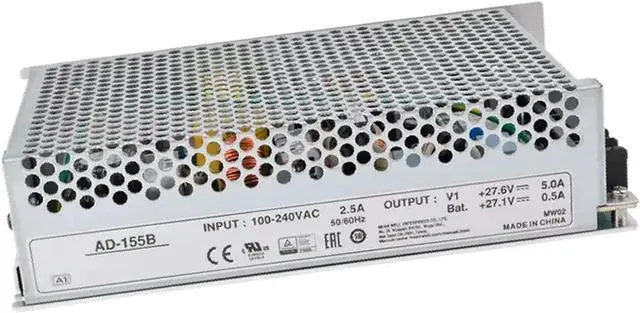

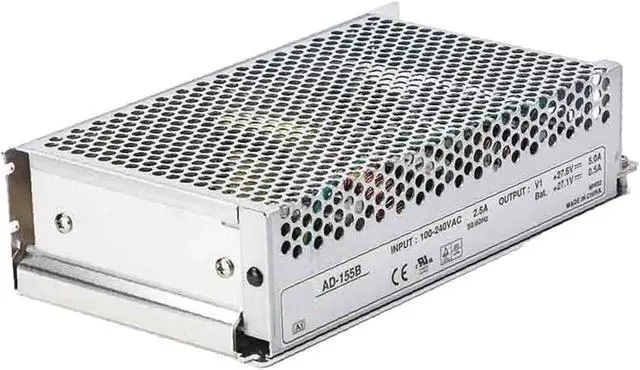

AD-155B 155W UPS Switching Power Supply 27.6V/5A Dual Output - Industrial Grade for CCTV Security Systems, Battery Backup & Charging, Wide Input 88-264V with PFC
- UPS Function Built-in intelligent battery charging circuit with automatic switchover to battery power during mains failure. 27.6V main output continuously powers surveillance equipment while 27.1V charging output charges 24V lead-acid batteries. Ensures uninterrupted recording.
- Industrial Grade Quality 151W output with 84% high conversion efficiency, low heat generation. Wide temperature range from -10 to +60, suitable for harsh environments. Full burn-in test passed, MTBF >1,800K hours, built to last.
- Multiple Protection Battery under-voltage protection (19.5V±1V) prevents over-discharge damage. Overload protection (105%-135%), over-voltage protection, short-circuit protection, and reverse polarity protection ensure safe and reliable operation.
- Universal Input 88V-264V AC wide voltage input compatible with global power grids. PFC function with power factor >0.92 for energy efficiency. Compliant with EMC standard CISPR32 Class B.
- International Certifications Certified by U
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
UPS Function Built-in intelligent battery charging circuit with automatic switchover to battery power during mains failure. 27.6V main output continuously powers surveillance equipment while 27.1V charging output charges 24V lead-acid batteries. Ensures uninterrupted recording.
Industrial Grade Quality 151W output with 84% high conversion efficiency, low heat generation. Wide temperature range from -10 to +60, suitable for harsh environments. Full burn-in test passed, MTBF >1,800K hours, built to last.
Multiple Protection Battery under-voltage protection (19.5V±1V) prevents over-discharge damage. Overload protection (105%-135%), over-voltage protection, short-circuit protection, and reverse polarity protection ensure safe and reliable operation.
Universal Input 88V-264V AC wide voltage input compatible with global power grids. PFC function with power factor >0.92 for energy efficiency. Compliant with EMC standard CISPR32 Class B.
International Certifications Certified by UL62368-1, TUV, and CE. 3KVAC high-voltage insulation design, 100M insulation resistance. Suitable for CCTV cameras, NVRs, access control systems, and alarm panels.
Industrial Grade Quality 151W output with 84% high conversion efficiency, low heat generation. Wide temperature range from -10 to +60, suitable for harsh environments. Full burn-in test passed, MTBF >1,800K hours, built to last.
Multiple Protection Battery under-voltage protection (19.5V±1V) prevents over-discharge damage. Overload protection (105%-135%), over-voltage protection, short-circuit protection, and reverse polarity protection ensure safe and reliable operation.
Universal Input 88V-264V AC wide voltage input compatible with global power grids. PFC function with power factor >0.92 for energy efficiency. Compliant with EMC standard CISPR32 Class B.
International Certifications Certified by UL62368-1, TUV, and CE. 3KVAC high-voltage insulation design, 100M insulation resistance. Suitable for CCTV cameras, NVRs, access control systems, and alarm panels.
