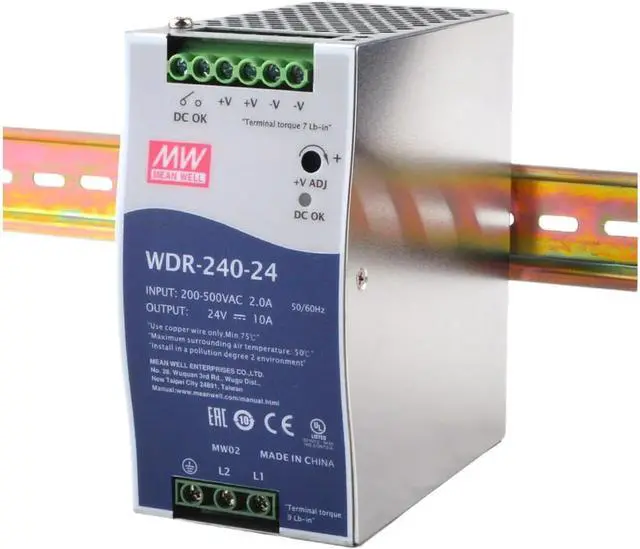

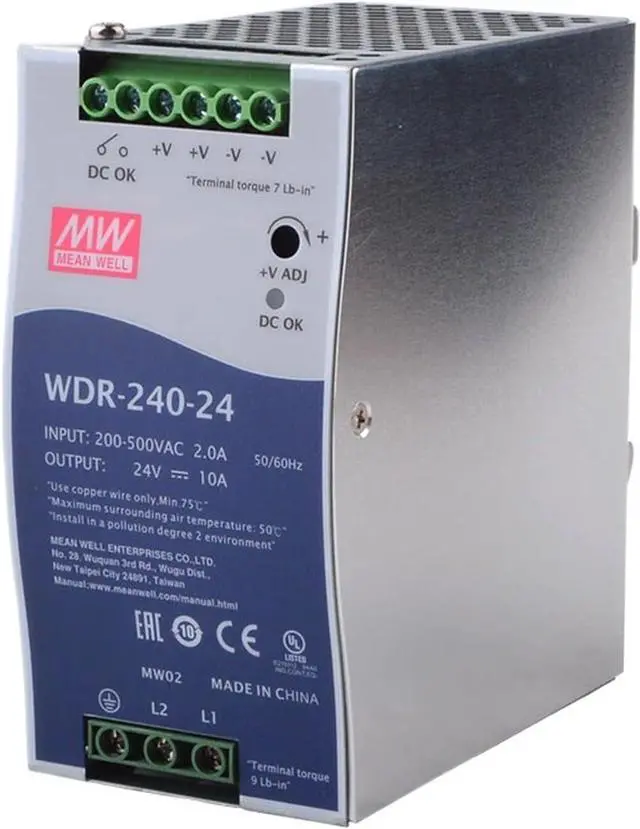

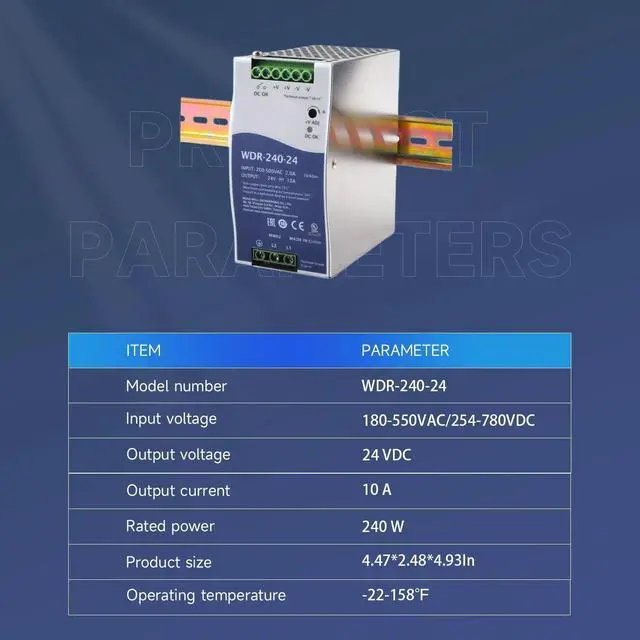

WDR-240-24 240W 24V 10A Single Output Switching Power Supply, 180-550VAC Wide Input, UL508 Certified, 3-Year Warranty for Industrial Automation
- Wide Input & High EfficiencyWDR-240-24 features 180-550VAC single/dual-phase wide input (254-780VDC), covering global grids. With 91% high efficiency and active PFC (meets BS EN/EN61000-3-2), it cuts energy costs and heat. Natural convection cooling enhances reliability
- Comprehensive Protection & High ReliabilityEquipped with short-circuit, overload (constant current limit, auto-recovery), over-voltage (auto-recovery) and over-temperature (90±5, auto-recovery) protections. Full-load aging test, MTBF up to 1062.8K hrs (MIL-HDBK-217F), ensuring 7×24h stable operation
- UL508 Certified & ComplianceCertified by UL508, IEC62368-1 CB & EAC TP TC 004. Meets BS EN/EN55032 & BS EN/EN61000-6-2 (heavy industry EMC), resisting complex industrial electromagnetic interference
- Rail Mount & Easy MaintenanceTS-35/7.5/15 rail installation with compact 63×125.2×113.5mm size, saving cabinet space. Built-in DC OK relay contact enables remote status monitoring, lowering m
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Wide Input & High EfficiencyWDR-240-24 features 180-550VAC single/dual-phase wide input (254-780VDC), covering global grids. With 91% high efficiency and active PFC (meets BS EN/EN61000-3-2), it cuts energy costs and heat. Natural convection cooling enhances reliability
Comprehensive Protection & High ReliabilityEquipped with short-circuit, overload (constant current limit, auto-recovery), over-voltage (auto-recovery) and over-temperature (90±5, auto-recovery) protections. Full-load aging test, MTBF up to 1062.8K hrs (MIL-HDBK-217F), ensuring 7×24h stable operation
UL508 Certified & ComplianceCertified by UL508, IEC62368-1 CB & EAC TP TC 004. Meets BS EN/EN55032 & BS EN/EN61000-6-2 (heavy industry EMC), resisting complex industrial electromagnetic interference

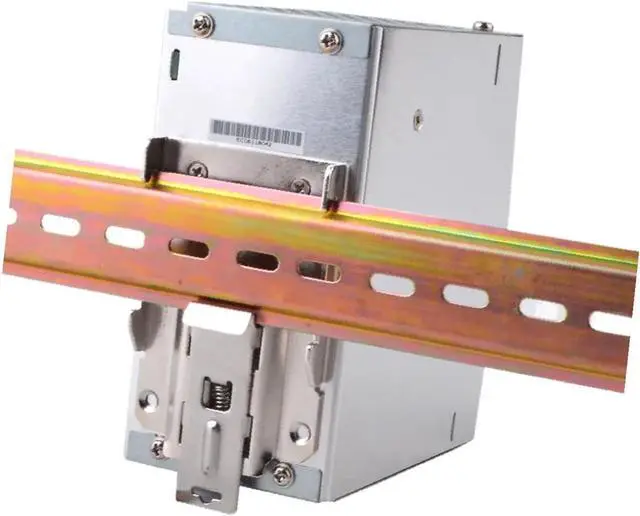

Rail Mount & Easy MaintenanceTS-35/7.5/15 rail installation with compact 63×125.2×113.5mm size, saving cabinet space. Built-in DC OK relay contact enables remote status monitoring, lowering maintenance difficulty and labor costs
Rugged for Harsh Environments-30 to +70 wide operating temperature, adapting to rail transit and outdoor industrial sites. Meets IEC60068-2-6 vibration standard (2G resistance), ensuring stable work in extreme conditions and extending service life
Comprehensive Protection & High ReliabilityEquipped with short-circuit, overload (constant current limit, auto-recovery), over-voltage (auto-recovery) and over-temperature (90±5, auto-recovery) protections. Full-load aging test, MTBF up to 1062.8K hrs (MIL-HDBK-217F), ensuring 7×24h stable operation
UL508 Certified & ComplianceCertified by UL508, IEC62368-1 CB & EAC TP TC 004. Meets BS EN/EN55032 & BS EN/EN61000-6-2 (heavy industry EMC), resisting complex industrial electromagnetic interference
Rail Mount & Easy MaintenanceTS-35/7.5/15 rail installation with compact 63×125.2×113.5mm size, saving cabinet space. Built-in DC OK relay contact enables remote status monitoring, lowering maintenance difficulty and labor costs
Rugged for Harsh Environments-30 to +70 wide operating temperature, adapting to rail transit and outdoor industrial sites. Meets IEC60068-2-6 vibration standard (2G resistance), ensuring stable work in extreme conditions and extending service life
