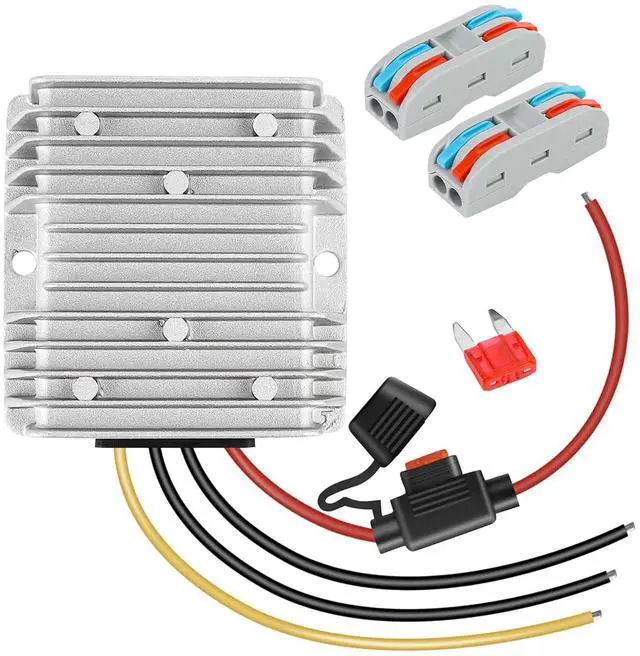

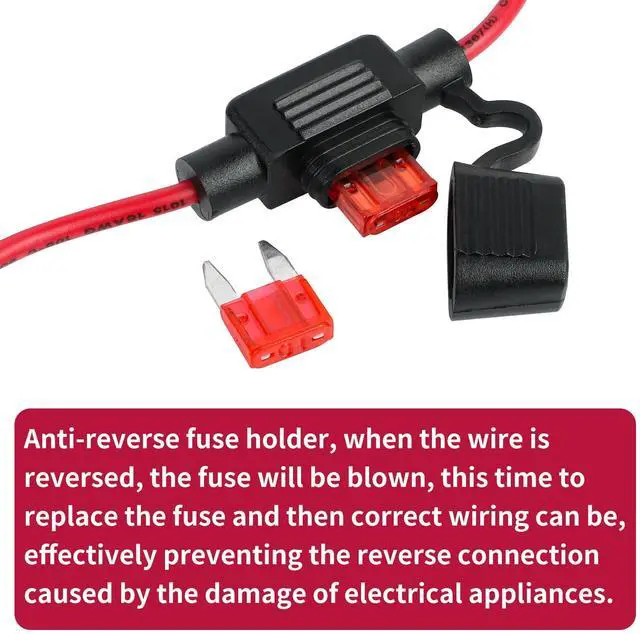

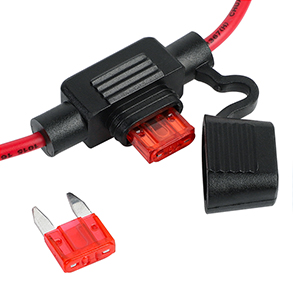

This DC 36V/48V to 12V 120W voltage reducer converters are high reliability power transformers. They feature wide input voltage, low power consumption, high efficiency, high reliability, with anti-reverse fuse holder.
We provide different power voltage converters for all kinds of application devices.

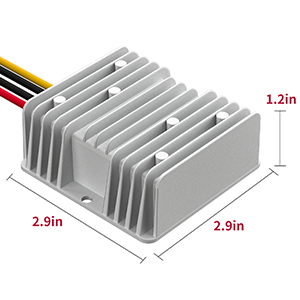

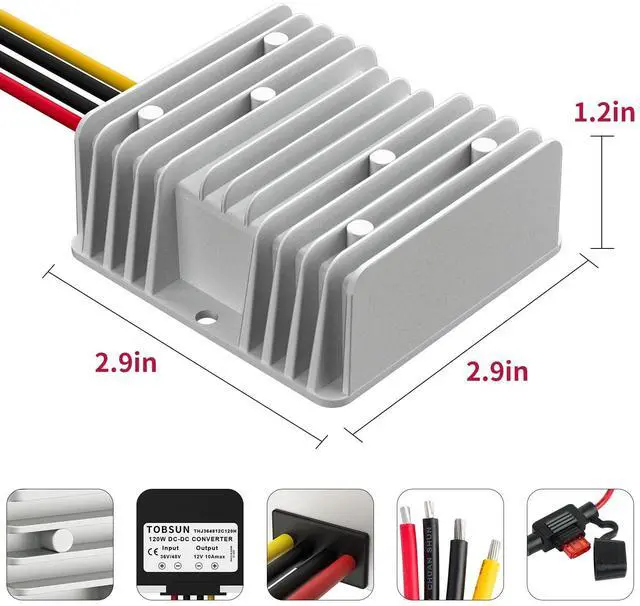

Compact Size
Compact aluminium shell with epoxy potting is anti-shock, damp-proof ,anti-dust protections and better heat dissipation
Intelligent Protection
Assembled with smart chip--has features of Over-current /Over-load /Low-load /Short-circuit /Over-heat intelligent/anti-reverse connection protection

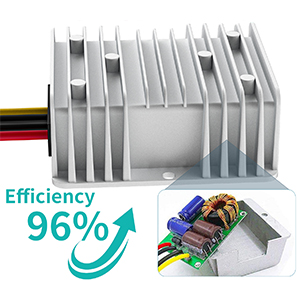

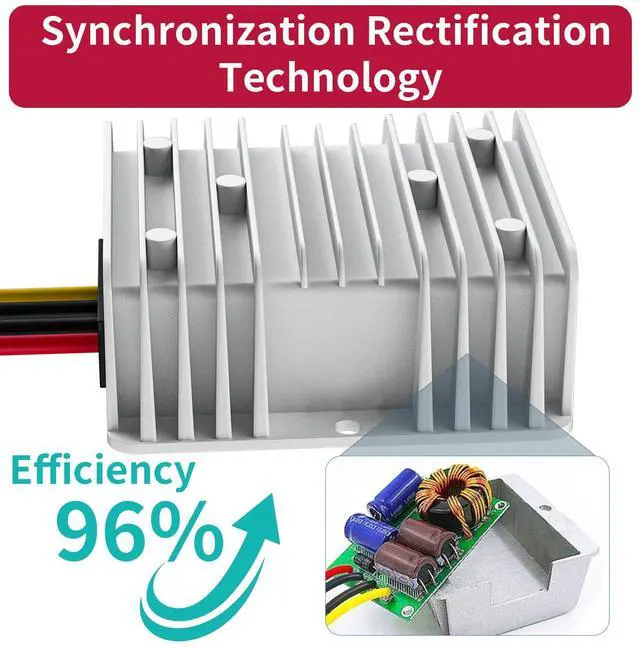

Synchronous Rectification Technology
The synchronous rectifier circuit use MOSFET instead of rectifier diode to greatly reduce the loss of the rectifier and improve the converter efficiency
Features
Non-Isolated Module
- Input Voltage: 36V/48V nominal; Input range: 30V to 60V
- Input Current: 10A (max) ; No-load input current: =10mA
- Output Voltage: DC 12V ±2% ; Output Current: 10A
- Ripple Wave: 50Mv
- Starting Delay time: = 2S
- Efficiency: =95%
- Operating Temperature:-40 ~ 80?
- Weight: 248g / 8.75oz

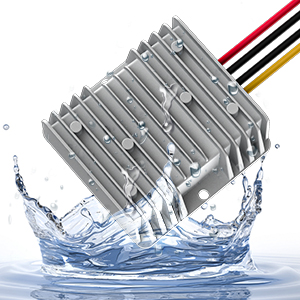

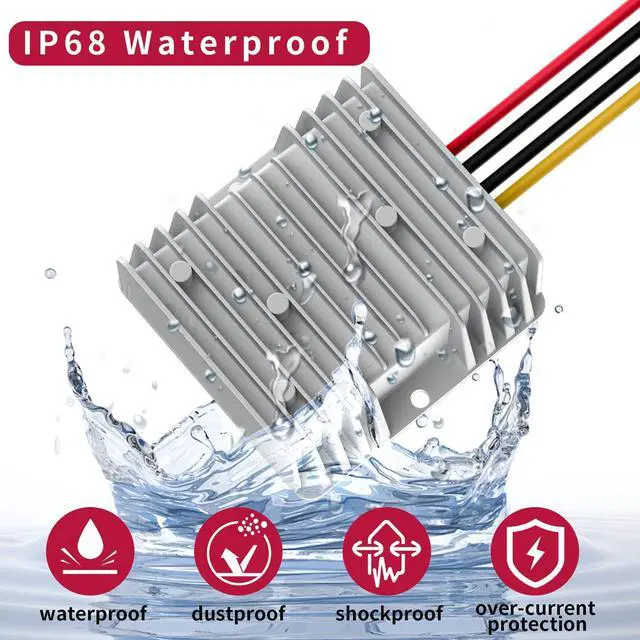

IP68 Waterproof Module
Better Heat Dissipation
Aluminium shell improve better heat dissipation effect and sturdiness to extend service life.
FR-4 multilayer lines, resistors, capacitors and switch MOS tube are SMD components with high integration, high reliability, high stability.
Notes: It's normal that the case is hot when converter inside temp is over 113?, converter will protect itself when inside temp is over 185?.
This DC 36V/48V to 12V 120W voltage reducer converters are high reliability power transformers. They feature wide input voltage, low power consumption, high efficiency, high reliability, with anti-reverse fuse holder.
We provide different power voltage converters for all kinds of application devices.
Compact Size
Compact aluminium shell with epoxy potting is anti-shock, damp-proof ,anti-dust protections and better heat dissipation
Intelligent Protection
Assembled with smart chip--has features of Over-current /Over-load /Low-load /Short-circuit /Over-heat intelligent/anti-reverse connection protection
Synchronous Rectification Technology
The synchronous rectifier circuit use MOSFET instead of rectifier diode to greatly reduce the loss of the rectifier and improve the converter efficiency
Features
Non-Isolated Module
- Input Voltage: 36V/48V nominal; Input range: 30V to 60V
- Input Current: 10A (max) ; No-load input current: =10mA
- Output Voltage: DC 12V ±2% ; Output Current: 10A
- Ripple Wave: 50Mv
- Starting Delay time: = 2S
- Efficiency: =95%
- Operating Temperature:-40 ~ 80?
- Weight: 248g / 8.75oz
IP68 Waterproof Module
Better Heat Dissipation
Aluminium shell improve better heat dissipation effect and sturdiness to extend service life.
FR-4 multilayer lines, resistors, capacitors and switch MOS tube are SMD components with high integration, high reliability, high stability.
Notes: It's normal that the case is hot when converter inside temp is over 113?, converter will protect itself when inside temp is over 185?.
