KEHIPI 10PCS DC-DC Boost Converter Module, 0.9-5V to 5V Step Up Power Module Voltage Boost Converter Board

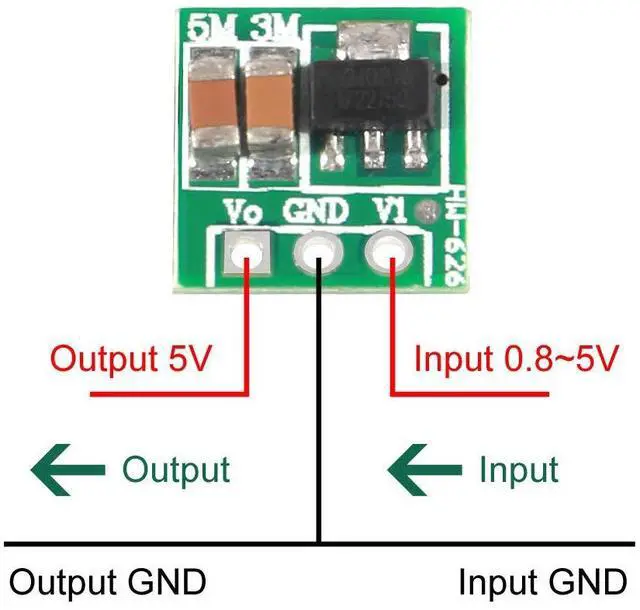

- Input voltage: 0.9-5V, output voltage: 5V, maximum output current: 480 mA
- DC-DC boost converter module, operating frequency 150KHZ, typical conversion efficiency of 85%.
- Pin 2.54MM pitch; Dimensions: 11mm x 10.5mm x 7.5mm (ultra-small module, 1mm=0.0393inch); Weight: about 1g
- Widely support: mini DC-DC voltage converter can support 1.5V 1.8V 2.5V 3V 3.3V 3.7V 4.2V to 5V
- Wide application: it is convenience for your life.The DC to DC boost converter can be powered by any suitable DC power source, such as a battery, solar panel, rectifier, DC generator and so on,
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Voltage and current correspondence:
Starting voltage 0.8V, output current 7MA
Input 1-1.5V, output 5V 40-100MA
Input 1.5-2V, output 5V 100-150MA
Input 2-3V, output 5V 150-380MA
Input more than 3V, output 5V 380-480MA
Specifications:
Output voltage: 5V
Output current: 480mA max
operating frequency: 150KHZ
Conversion efficiency: 85%
Pin grid spacing: 2.54 mm
Size:11mm x 10.5mm x 7.5mm
Attention:
the input voltage must not be greater than nominal voltage, otherwise it will burn out the template; The input power must be greater than the output power, or the output voltage will be less than the nominal voltage
Package included:

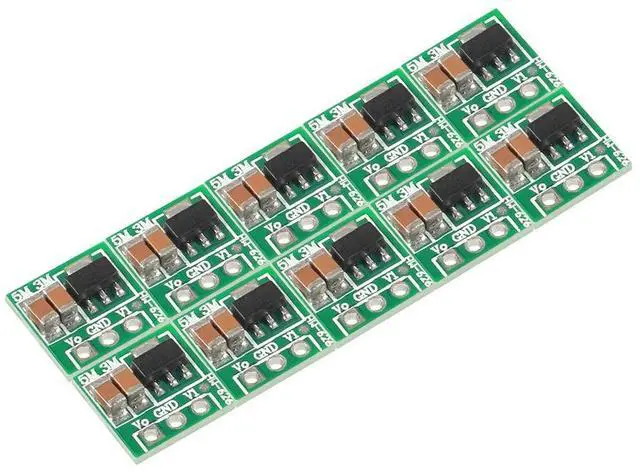

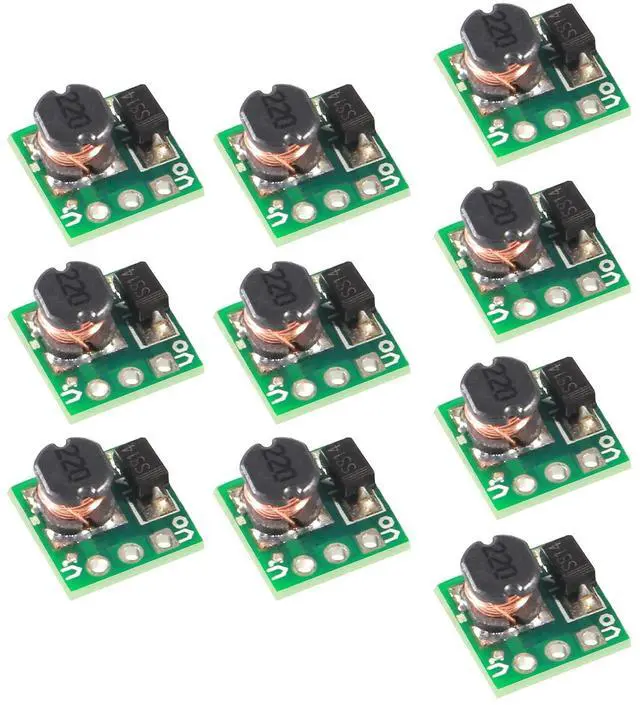

10 x DC-DC step up power modules
