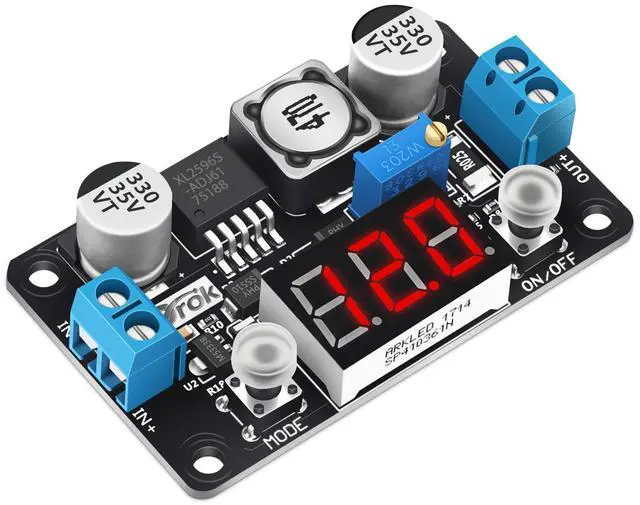

KEHIPI LED Display LM2596 Buck Converter - DC 4-32V to 1.25-30V 3A Step Down Converter Adjustable Voltage Regulator Power Supply, Pack of 2

Parameter:

Input voltage range: DC 4.0V-32.0V

Output voltage range: DC 1.25V-30.0V adjustable (output voltage should be at least 2V less than input voltage)

Max output current: 3A

Continuous operating current: 1.5A (total output power within 20W)

Voltage Measurement Accuracy: ± (1% + 2 digits)

Current Measurement Accuracy: ± 2 digits

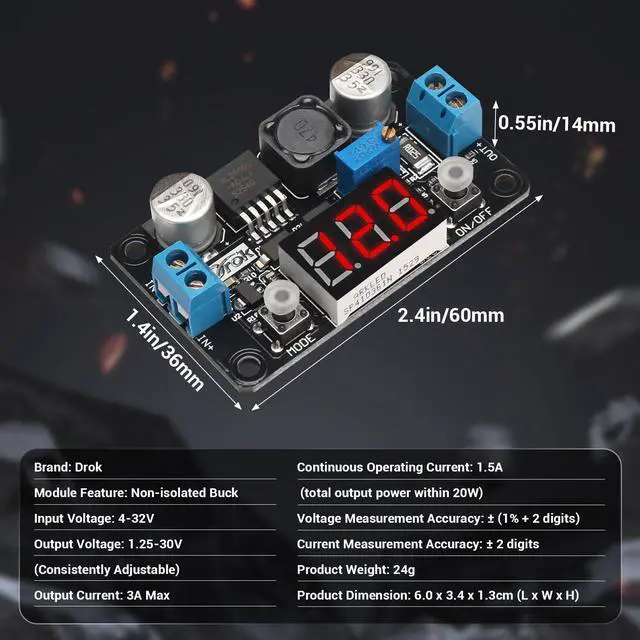

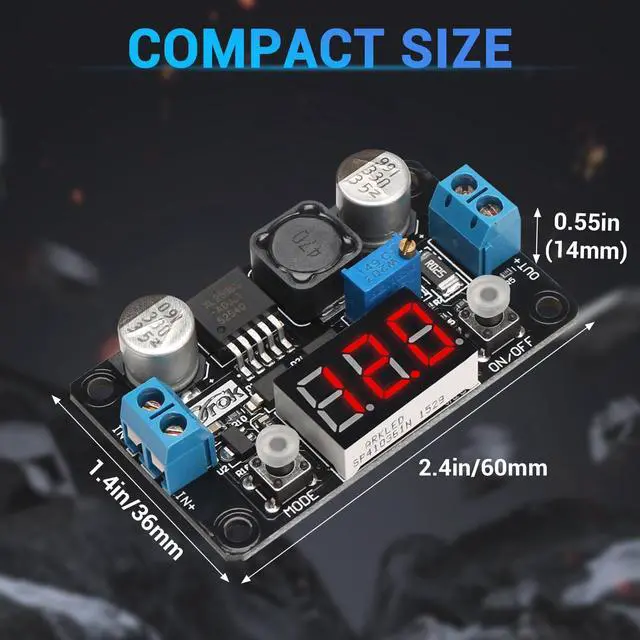

Product Dimension: 6.0*3.4*1.3cm/2.3*1.3*0.5 inch

Display: LED screen

Display value:

Input voltage;

Output voltage;

Output current

Button:

MODE button: switch displaying value

- Press it to circularly display output voltage, output current, input voltage, and it will automatically memorize the default display mode.

ON/OFF button: turn on/off output voltage

- Press it to alternately turn on/off the output, and it will automatically memorize the default switch status.

- When the output is off, the display will display OFF.

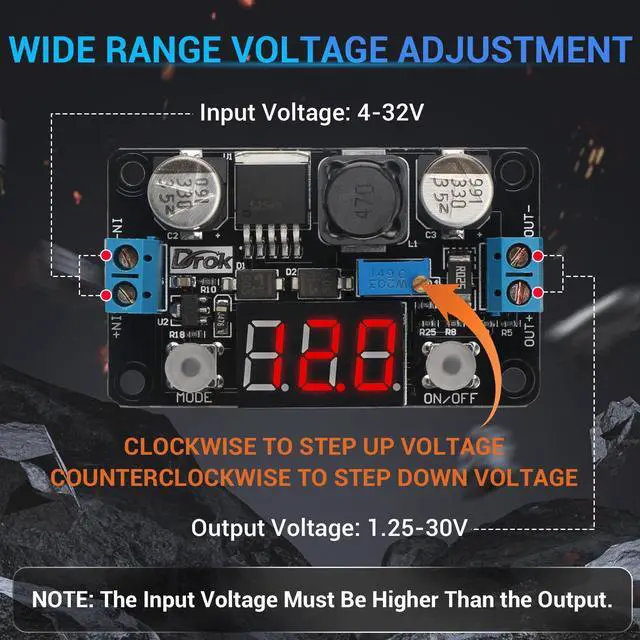

Output voltage adjustment:

Increase/decrease the output voltage by adjusting the screw on top of the potentiometer clockwise/counterclockwise.

Protection:

Input reverse connection protection;

Short circuit protection

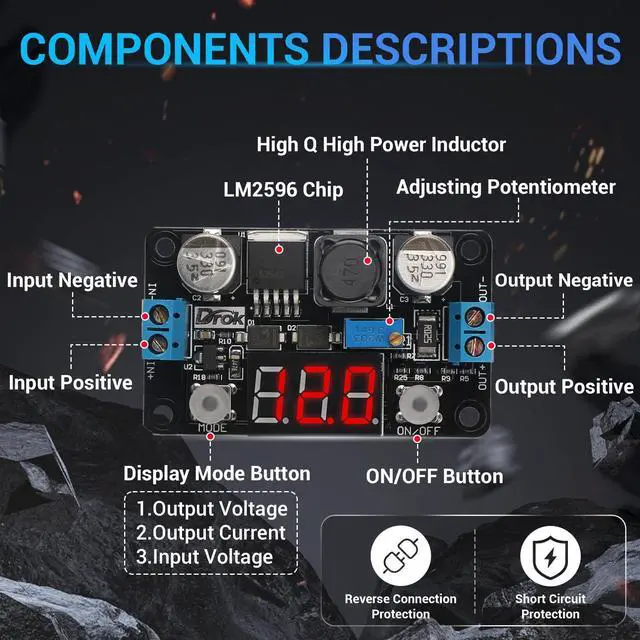

Wiring:

IN+Input Positive

IN-Input Negative

OUT +Output Positive

OUT-Output Negative

Package Included:

2x Step Down Converter
