JVFYI DC 24V 15A 360W Power Supply Universal Regulated Switching Transformer Adapter Driver 110V/220V AC Input for LED Strip CCTV Radio Computer Project
Limited time offer, ends 02/24 By BRIGHTOR

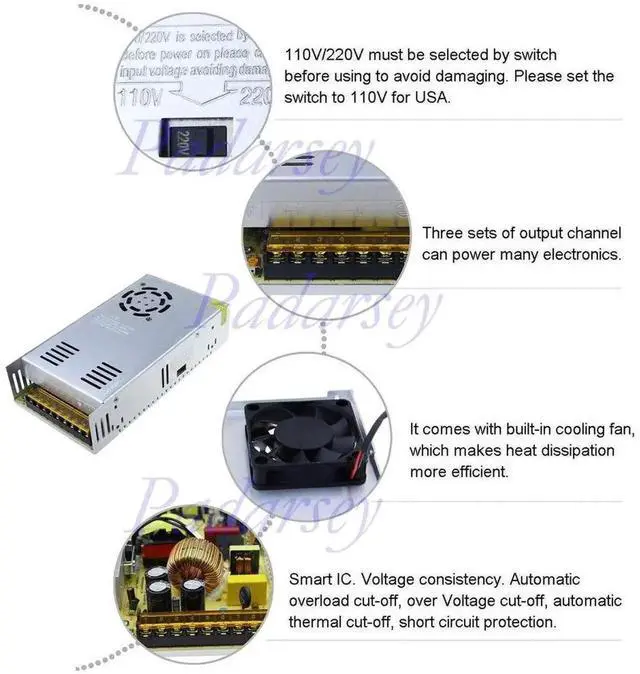

- 1) Input:110V/220V AC; Output: DC 24V 15A max. Output voltage is adjustable 15%. Three sets of output Channel
- 2) Safety features: Automatic overload cut-off, over Voltage cut-off, automatic thermal cut-off, short circuit protection.
- 3) Voltage consistency: There is no voltage fluctuations to speak of at power on, during transmit, receive, or at power off.

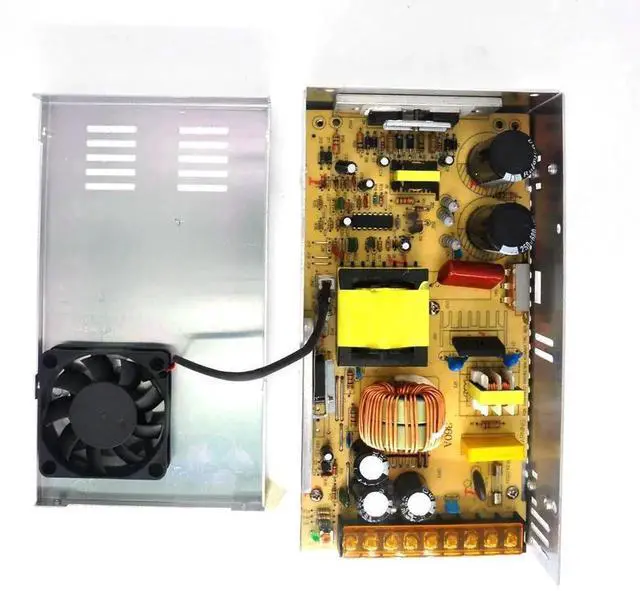

- 4) It comes with built-in cooling fan and many holes on the metal case, which makes heat dissipation more efficient.
- 5) Compact small size, high efficiency, high reliability and stable performance. Indoor use only!
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Parameter
Input: AC110V/220V 50/60Hz
Output : DC 24V 15A 360W max
Fix Screw Hole Diameter: 2.5mm (0.1inch)
Working temperature: -10 to 50 degree Celsius
Storage temperature: -20 to 60 degree Celsius
Environmental humidity: 10-95%
Material: Metal, Electronic Parts
Safety Compliance: CCC/ FCC / CE

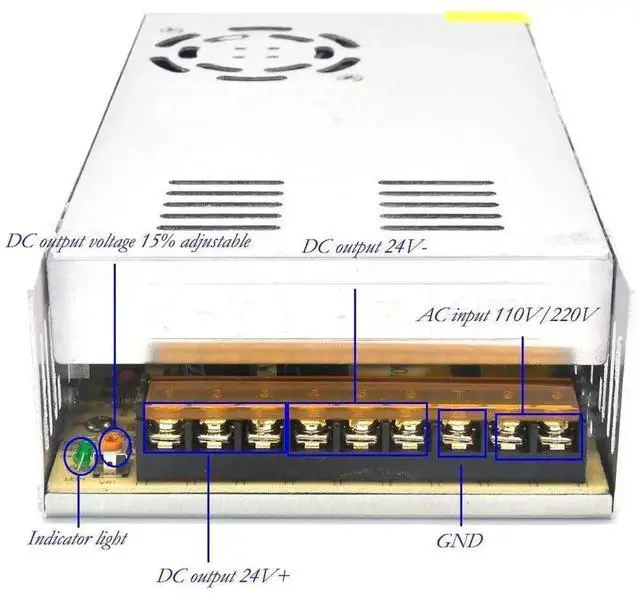

Connection instruction
L/N: AC power input
+V: DC power output +
COM: DC power output -
+V ADJ: Adjust the output voltage (15%)
Kindly note
1) High Voltage inside, do not remove the cover.
2) 110V/220V must be selected by switch before using to avoid damaging. Please set the switch to 110V for USA.
3) It comes without installation instruction, wiring cable, on/off switch and screws. Professional Installation of qualified
electrician is highly recommended.
4) The power supply fan does make a noise and the speed of the fan is load based. So the higher the load, the faster the fan
runs, the louder the noise.
Package included
1 x LED Switching Power Supply
