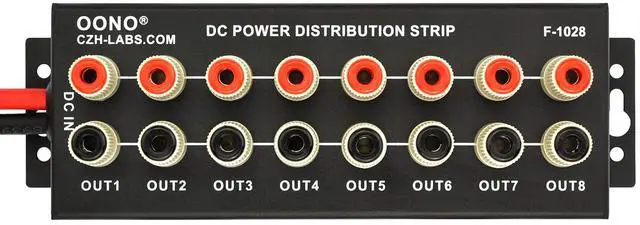

Banana Jack 8 Outlet DC Power Distribution Strip (with Cable)
Limited time offer, ends 07/28 By Jeronrtion

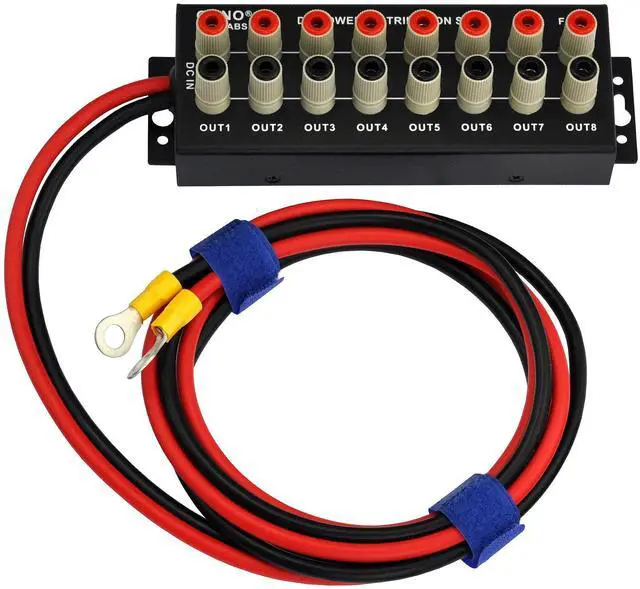

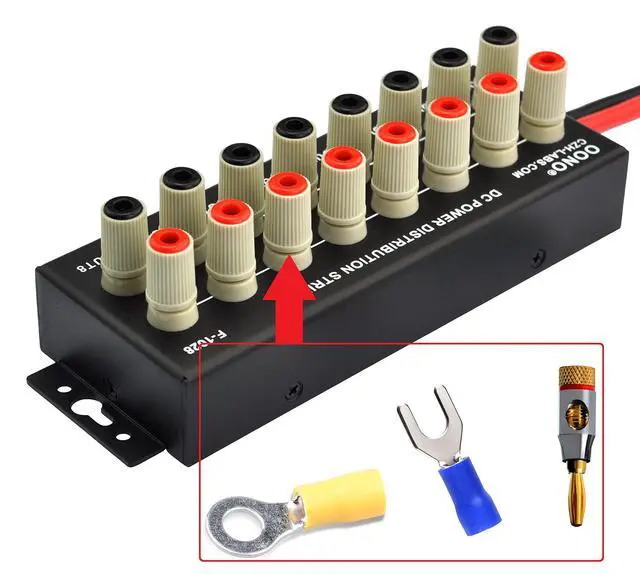

- The F-1028 DC power distribution outlet strip is a robust power distribution strip. It provides 8 position positive and negative banana jack outputs. Operating voltage: 0 ~ 60VDC. Maximum allowable input current: 50 Amp. No-load current: 0mA. Maximum output current per position: 24 Amp. Total maximum current: 50 Amp. Comes with red (+) and black (-) DC input cables, length 1.5m / 5ft. Conductor cross-sectional diameter: 10mm square (approximately equivalent to 7AWG). 5/16 (8.4mm) ring terminals. 2 x 8 positions high current brass (nickel-plated) standard banana jacks, which accept standard banana plugs and 1/4 (6.4mm) ring / spade terminals. (Note: the unit does not include banana plugs or 1/4 ring / spade terminals). High quality aluminum housing with a material thickness of 1.5mm / 0.06". Supports screw mounting and wall mounting, and can also be placed on a desktop. If purchased together with the CASE-015 DIN adapter bracket, it can also be installed on 35mm, 32mm, or 15mm DIN rail
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The F-1028 DC power distribution outlet strip is a robust power distribution strip. It provides 8 position positive and negative banana jack outputs. Operating voltage: 0 ~ 60VDC. Maximum allowable input current: 50 Amp. No-load current: 0mA. Maximum output current per position: 24 Amp. Total maximum current: 50 Amp. Comes with red (+) and black (-) DC input cables, length 1.5m / 5ft. Conductor cross-sectional diameter: 10mm square (approximately equivalent to 7AWG). 5/16 (8.4mm) ring terminals. 2 x 8 positions high current brass (nickel-plated) standard banana jacks, which accept standard banana plugs and 1/4 (6.4mm) ring / spade terminals. (Note: the unit does not include banana plugs or 1/4 ring / spade terminals). High quality aluminum housing with a material thickness of 1.5mm / 0.06". Supports screw mounting and wall mounting, and can also be placed on a desktop. If purchased together with the CASE-015 DIN adapter bracket, it can also be installed on 35mm, 32mm, or 15mm DIN rail
