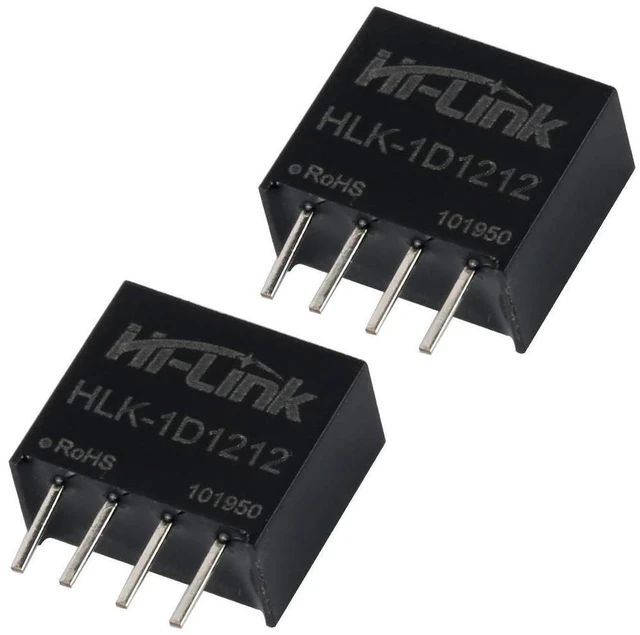

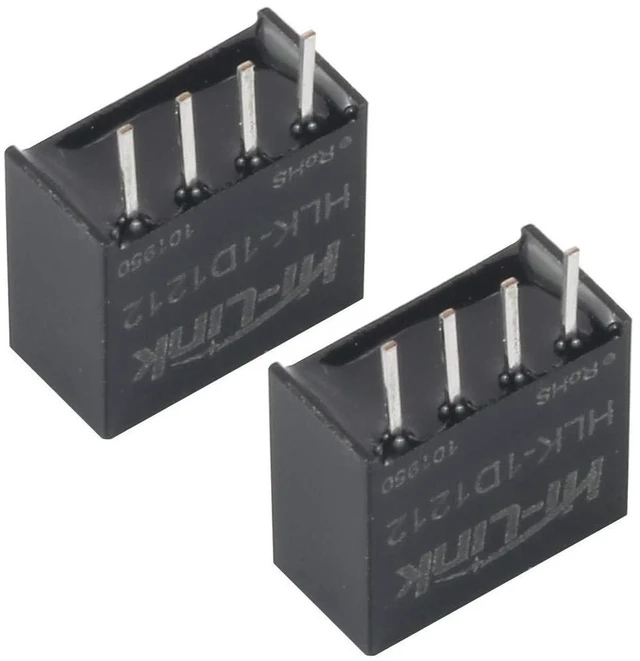

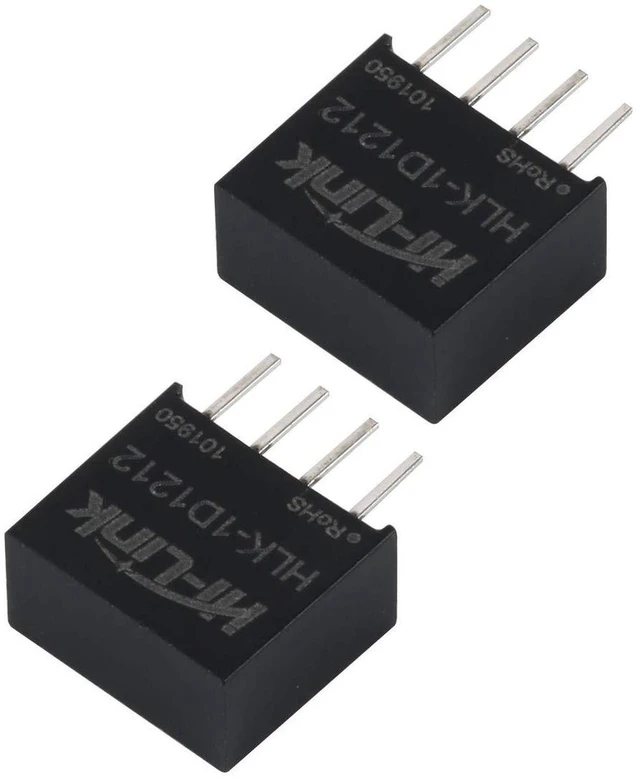

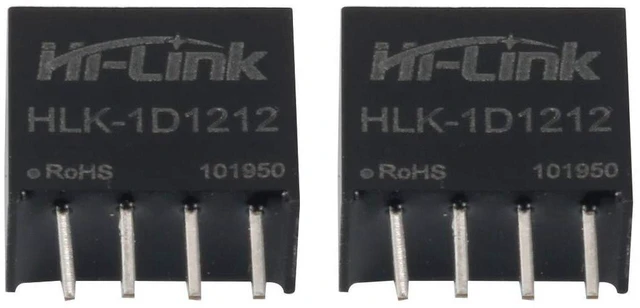

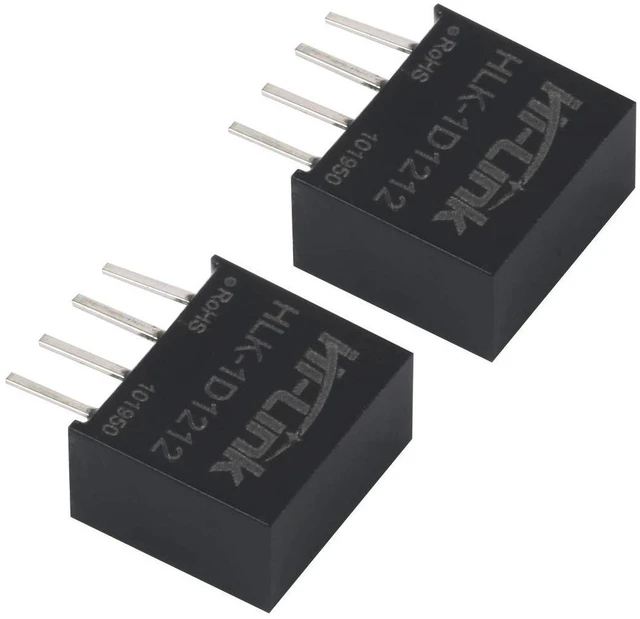

AJMRTC HLK-1D1212 DC-DC Isolated Power Supply Module, 12V to 12V 1W 84mA Unregulated Isolation Converter, SIP Single Output Switching Power Module for Smart Home, Industrial Circuit, PCB Design, 6 PCS
- - 12V fixed input, isolated 12V unregulated single output, rated 1W, max 84mA output current
- - 1500VDC isolation voltage between input and output, separates ground loop interference
- - Mini SIP through-hole package, compact 11.5*10*6mm size for direct PCB soldering
- - Built-in multi-protection: short circuit, over-current and over-temperature auto-recovery
- - High conversion efficiency up to 80%, wide working temperature -40 ~ +85
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
AJMRTC HLK-1D1212 DC-DC isolated switching module is designed to isolate power grounds for digital circuits, low-frequency analog circuits, relay drive and signal transmission circuits. It breaks ground loops and suppresses noise interference in smart home switches, sensors and industrial control boards. It is unregulated output, suitable for isolation power supply instead of voltage adjustment. Standard pin layout for quick assembly. RoHS compliant for electronic product integration.
Specifications
- Brand: AJMRTC
- Model: HLK-1D1212
- Input Voltage: 12V DC (10.8V~13.2V)
- Output: 12V DC, 84mA, 1W
- Isolation Voltage: 1500VDC
- Output Type: Unregulated single channel
- Package: SIP 4-pin through hole
- Dimension: 11.5 × 10 × 6 mm
- Efficiency: Typical 80%
- Operating Temperature: -40 ~ +85
- Quantity: 6 PCS per pack
- Protection: Short circuit, OCP, OTP, auto recovery
- Certification: RoHS
- Application: Smart home switch, relay drive, signal isolation, industrial control, IoT circuit
- Note: Unregulated output, not for precise voltage regulation scenarios
