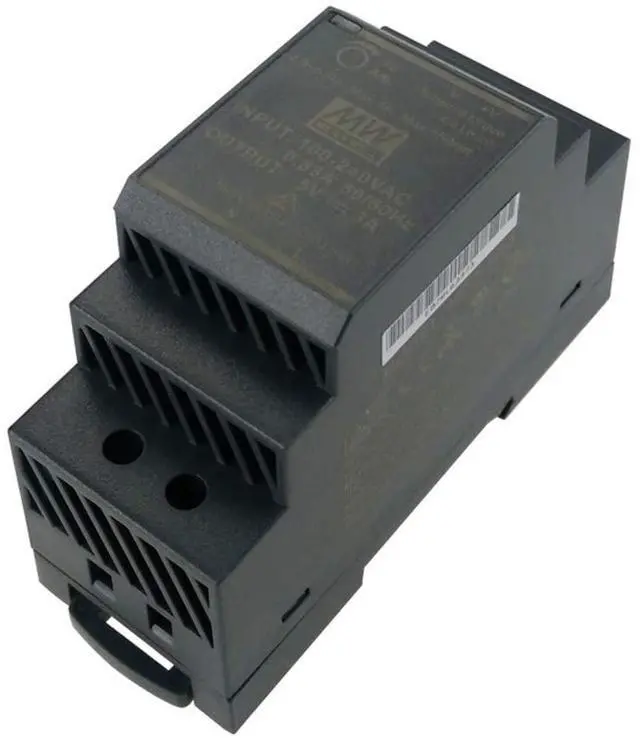

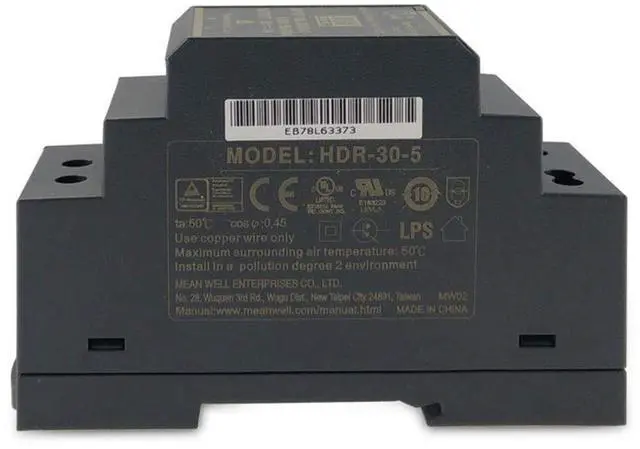

Original Mean Well HDR-30 Series DIN Rail Power Supply 110V/220VAC to 5V 12V 15V 24V 48V DIN Rail Ultra Slim Step Shape Power Supply Isolated LPS CE UL Transformer (HDR-30-5(5V 3A))

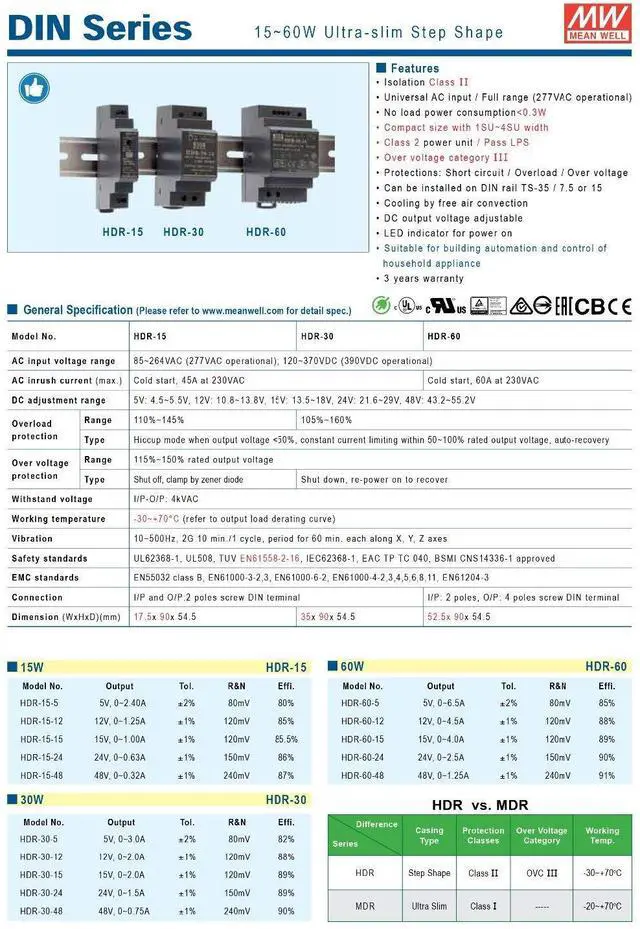

Features Ultra slim design with 35mm (2SU) width Universal input 85~264VAC (277VAC operational) No load power consumption< 0.3W Isolation class II Pass LPS (Limited power source) DC output voltage adjustable
Protections: Short circuit/ Overload/ Over voltage Cooling by free air convection (working temperature: 30~+70*C) DIN rail TS-35/ 7.5 or 15 mountable Over voltage category III LED indicator for power on 3 years warranty Application Household control system Building automation Industrial control system Factory automation Electro-mechanical apparatus Description HDR-30 is one economical ultra slim 30W DIN rail power supply series, adapt to be installed on TS-35/ 7.5 or TS-35/15 mounting rails. The body is designed 35mm (2 SU) in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 85VAC to 264VAC (277VAC operational) and conforms to EN61000-3-2, the norm the European Union regulates for harmonic current. HDR-30 is designed with plastic housing that it can effectively prevent user from electric hazards. With working efficiency up to 90%, the entire series can operate at the ambient temperature between -30°C and 70°C under air convection. It is equipped with constant current mode for overload protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for home automations and industrial control apparatus (IEC60950-1, UL508, UL60950-1, EN61558-2-16) make HDR-30 a very competitive power supply solution for household and industrial applications.
