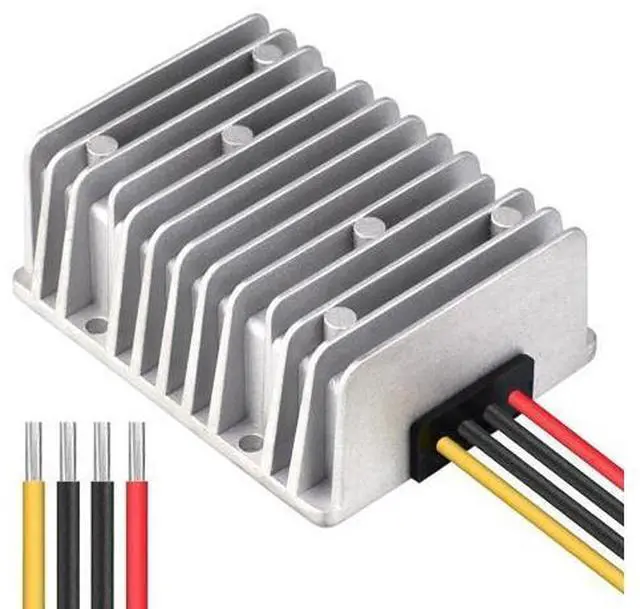

DC/DC 24V 36V to 48V Boost Converter 10A 480W Step Up Voltage Regulator Module Car Power Supply Voltage Transformer (Input 20V-42V)
- Input voltage range: DC 20V-42V; Output voltage: DC 48V(non-adjustable); Output current: 10A (rated working current); Output power 480W.; High conversion efficiency: The conversion efficiency may reach 95%; Its dynamic response speed is 5 percent 200US, please lower the power or enhance heat radiation when temperature over 40; Protections: Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage.; Aluminum shell and silicone sealed design: Waterproof, Anti-shock, Anti-humidity and Dust-proof, more durable.; Wide application: Trucks, taxi radio, emu, car audio, LCD TV, advertising screen, LED lights, monitoring system, motors, electronic systems etc.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

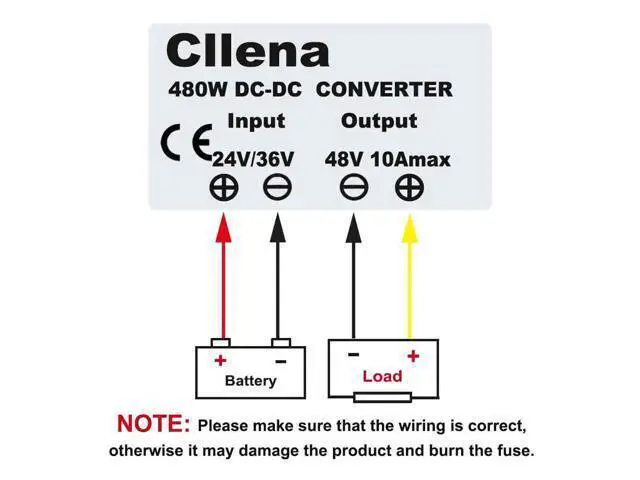

Wiring: OUTPUT+ to LOAD+, OUTPUT- to LOAD-; INPUT+ to BAT+, INPUT- to
BAT- Note: * Never connect to solar panel, PWM/MPPT charge controller, inverter or wind turbine. * Never charge the battery. Keep good air convection. * Never reverse the polarity. * Use the enough big cable to avoid the voltage drop.
Application: 24V/36V DC battery as input power to 48V DC appliances as output load.
Rated Voltage: 24V/36V DC
Input Voltage Range: 20V-42V DC
Output voltage: 48V DC
Output Current: 10 Amp
Output Rated Power: 480W
Efficiency: 97% (half load); 95% (full load)
Ripple: 200mVp
Line Regulation: ± 0.2 %
Load Regulation: ± 0.2 %
Voltage Accuracy: ± 1.5 %
Enclosures: IP68 Case
Operating Temperature: -40~85°C
Weight: 550g
Features: 1. 100% full power and stable current output, non-isolated module.
2. Industry grade DC 24V 36V to DC 48V step up converter, efficiency up to 95%.
3. Die-cast aluminum shell, epoxy potting, cooling by free air convection; Waterproof level IP68 and anti-shock protection.
4.
Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating.
5.
Certificates: CE/RoHS, 1 year warranty, lifetime up to 100, 000 hours.
Package included: 1 x DC 24V/36V - 48V 10A Step up
Converter Questions: How to choose the correct current for loads? For example, if the max current of your load device is 10A, then choose 10A/ 0.8 = 12.5A at least for resistive loads according to international sta
BAT- Note: * Never connect to solar panel, PWM/MPPT charge controller, inverter or wind turbine. * Never charge the battery. Keep good air convection. * Never reverse the polarity. * Use the enough big cable to avoid the voltage drop.
Application: 24V/36V DC battery as input power to 48V DC appliances as output load.
Specifications
: InputRated Voltage: 24V/36V DC
Input Voltage Range: 20V-42V DC
Output voltage: 48V DC
Output Current: 10 Amp
Output Rated Power: 480W
Efficiency: 97% (half load); 95% (full load)
Ripple: 200mVp
Line Regulation: ± 0.2 %
Load Regulation: ± 0.2 %
Voltage Accuracy: ± 1.5 %
Enclosures: IP68 Case
Operating Temperature: -40~85°C
Weight: 550g
Features: 1. 100% full power and stable current output, non-isolated module.
2. Industry grade DC 24V 36V to DC 48V step up converter, efficiency up to 95%.
3. Die-cast aluminum shell, epoxy potting, cooling by free air convection; Waterproof level IP68 and anti-shock protection.
4.
Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating.
5.
Certificates: CE/RoHS, 1 year warranty, lifetime up to 100, 000 hours.
Package included: 1 x DC 24V/36V - 48V 10A Step up
Converter Questions: How to choose the correct current for loads? For example, if the max current of your load device is 10A, then choose 10A/ 0.8 = 12.5A at least for resistive loads according to international sta
