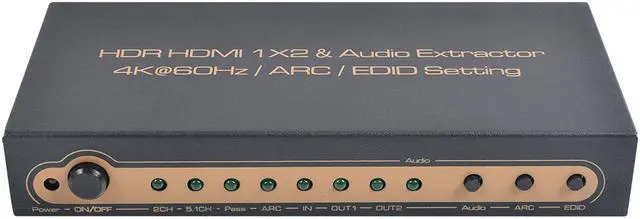

HDR HDMI 1X2 & Audio Extractor 4K@60Hz/ ARC/ EDID Setting

Mode No :HDCN0054M1.
Mode name:HDR HDMI 1X2 & Audio Extractor.
Input channel:HDMI port x1.

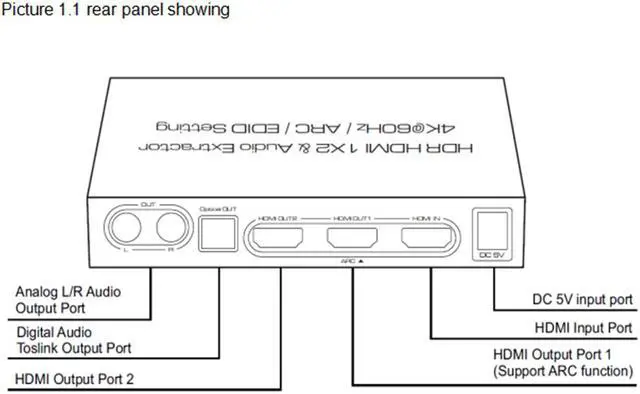

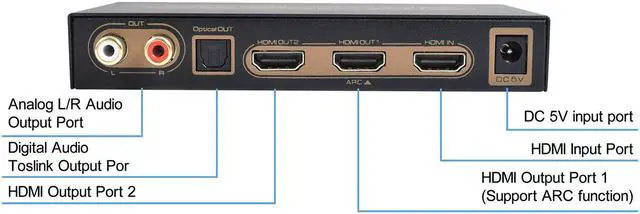

Output channel:HDMI port x2?Toslink port x1?L/R port x1.
ARC features:Support Toslink .
Video format:HDR?UHD?HLG?Dolby?Vision.
Resolution format:480P/720P/1080P/2160P@60/50/30/25/24(Support1080P@120).
Scale down format:Supports 4K@60/50/30/25/24(RGB/YCbCr444/422/420) scale down to 1080P.
Deep color:8/10/12Bit@480P/720P/1080P 8Bit@2160P.
Digital audio output supported audio format:LPCM2.0/DTS/DOLBY-AC3……
HDMI Input cable length:2160P/AWG 26 =5m ; 1080P/AWG 26 =10m.
HDMI Output cable length:2160P/AWG 26 =5m ; 1080P/AWG 26 =10m.
DAC sample frequency range:32~192 KHz.
HDMI transmission?bandwidth:25~600MHz.
HDMI transmission rate:0.75~18Gbps.
Power adapter specification: Input-AC 100~240V ; Output-DC 5V/1A.
Max working current:400mA.
Working temperature range: 0 ~ +40?.
Working humidity range:5 to 85%RH(No Condensation).
Storage temperature:-15 to 55?.
Storage humidity:5 ~95%RH(No Condensation).
Size:139x64.5x22.3 (mm).
Weight:216g.
Accessories:Manual, Power Adaptor.
Before you buy, we are happy to send you the English version of the manual.

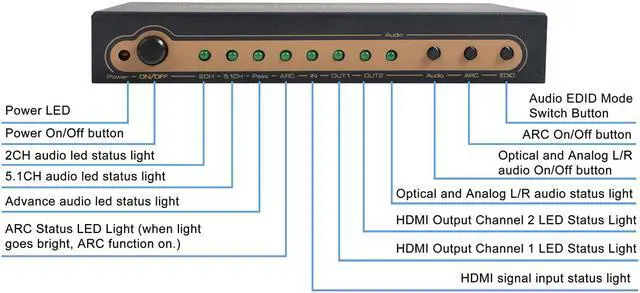

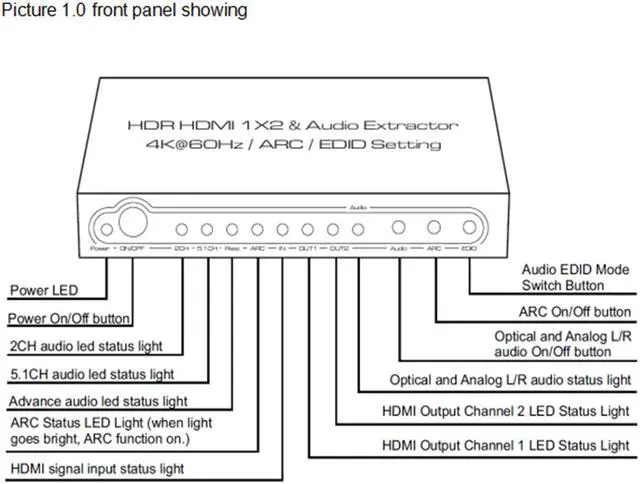

1?Press the EDID button of the device,it can choose 2CH?5.1CH?PASS three kinds of audio output mode by circulate switching
(When switch to 5.1CH audio mode output, the digital audio signal receiving terminal must can support DTS/DOLBY-AC3 decode,
or the output audio signal receiving terminal will have no sound output; If pls switch to 2CH audio mode. the audio signal receiving terminal can output the audio.
When audio output switch to the PASS mode, the audio output format will be decided by the audio signal receiving machine audio decode ability.
The device will output 7.1 channel audio signal while the output end connects the AV receiver with HDMI port that support 7.1 channel audio decode. (The HD Source signal itself is 7.1 channels)
2?After pressing the ARC button , the ARC function is enabled and the matched ARC led light will go bright, the Toslink output port will output the TV ARC audio.
(Please make sure that your TV can support ARC function); after pressing the ARC button again,
the ARC function is closed and the ARC led light will go dark,and the Toslink and L/R port output port output the extracted audio from the HDMI input.

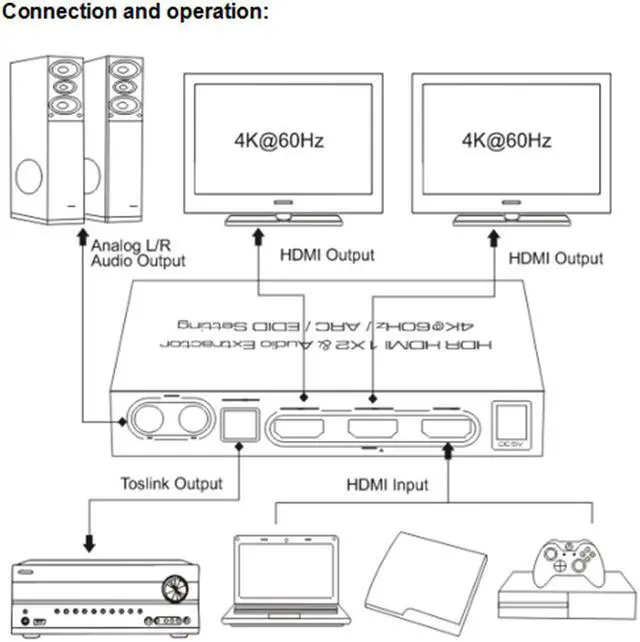

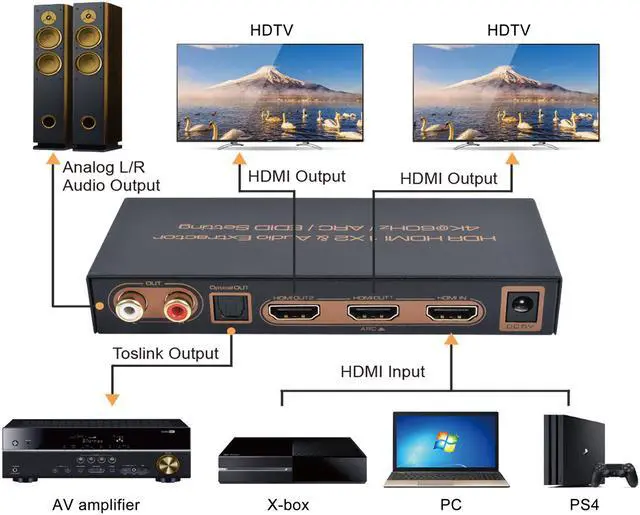

3. Scale Down function description:When using 4K signal source input, one output port is connected to a 4K TV and the other output port is connected to a Full HD TV.
At this time, The Scale Down feature will allow one port to output 4K signals and another port to automatically scale down the resolution to 1080P.
This feature is on by default, and both output ports support scale down.
Audio explanation:
2CH:L/R, SPDIF and HDMI have output.
5.1CH:SPDIF and HDMI support DTS/DOLBY-AC3
Pass:HDMI supports the highest audio format 7.1 channels(support Dolby-HD, DTS-HD, Dolby Atoms,LPCM 7.1 high quality audio format). Before you buy, we are happy to send you the English version of the manual.
