4K HD-Video Capture-HDMI In USB3.0 out 3840x2160@30Hz or 4096x2160@24Hz Max Support 3840x2160@60Hz YUV420
- 4K HD-Video Capture-HDMI In USB3.0 out 3840x2160@30Hz or 4096x2160@24Hz Max Support 3840x2160@60Hz YUV420
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model No:HDCN0053M1.

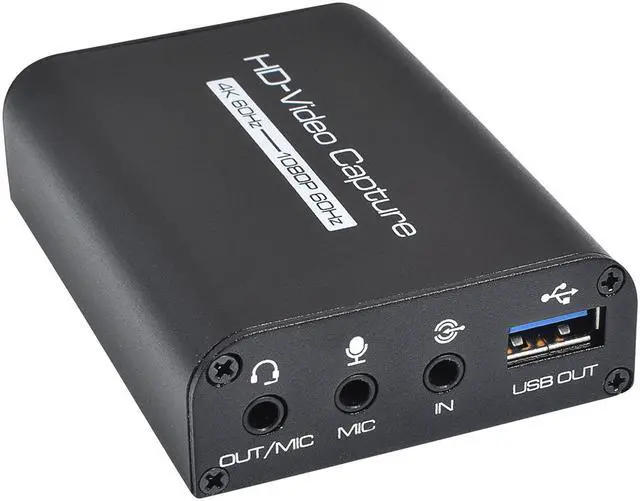

Model name:4K HD-Video Capture.

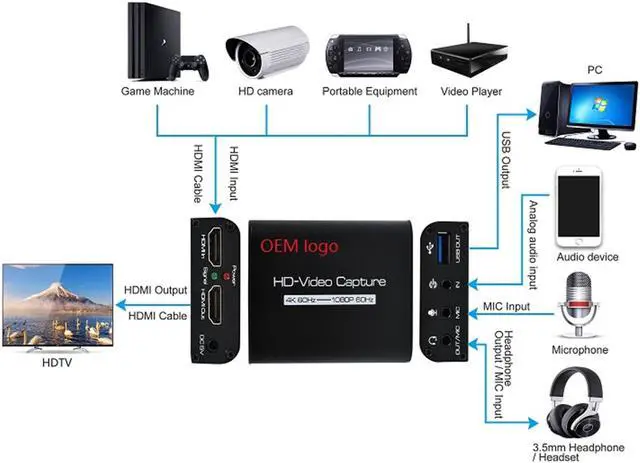

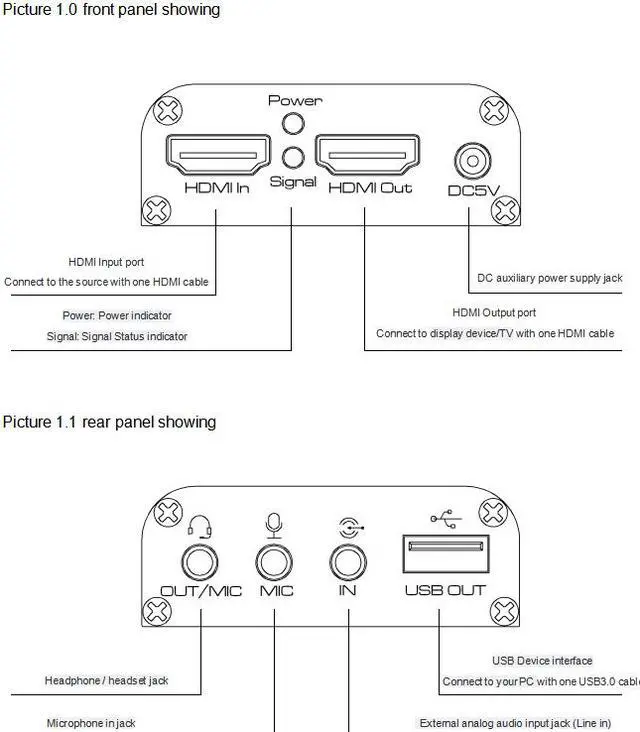

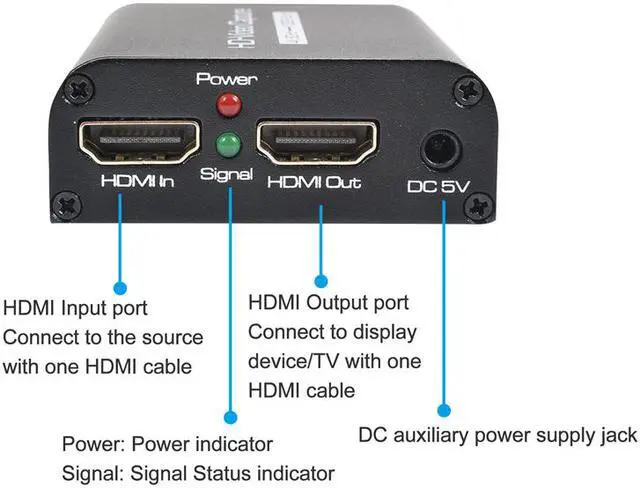

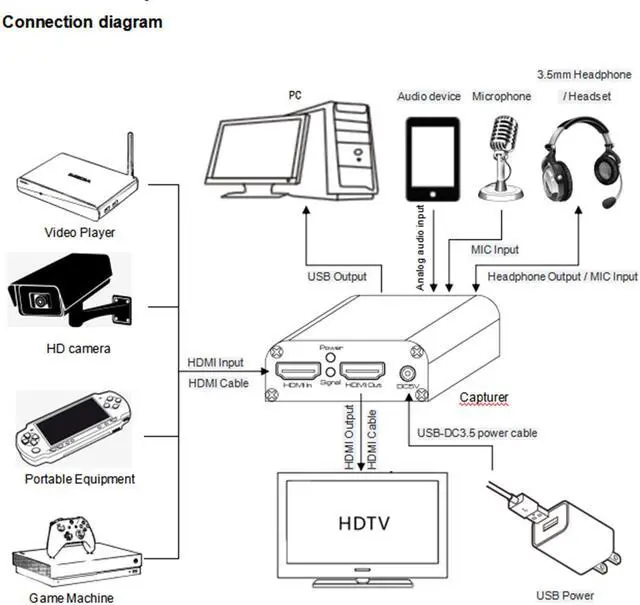

Input ports:HDMI2.0 x1,LINE IN x1,MIC x1,DC3.5 x1.

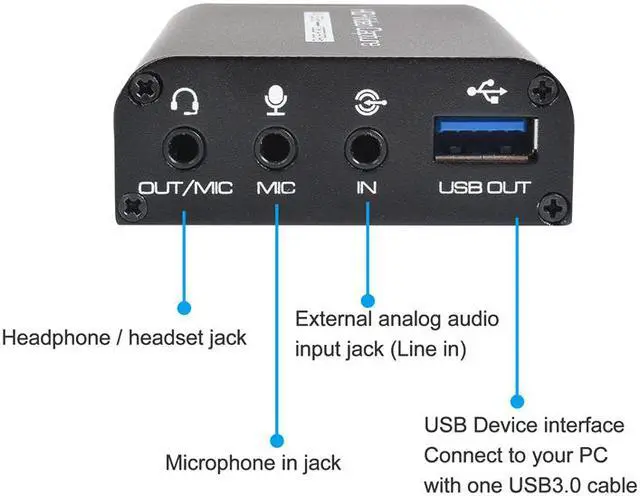

Output ports:HDMI2.0 x1,USB3.0 x1, Headset x1.
HDMI video resolution:720P/1080P/2160P@24/30/50/60Hz.
Audio format:LPCM2.0/32~192KHz/16/20/24Bit.
Input color space:RGB?YUV444?YUV422?YUV420.
Video output resolution:1920x1080@30Hz Max.
Video output format:YUV or JPEG.
HDMI input cable length:2160P/AWG 26 =5m or1080P/AWG 26 =10m.
HDMI output cable length:2160P/AWG 26 =5m or1080P/AWG 26 =10m.

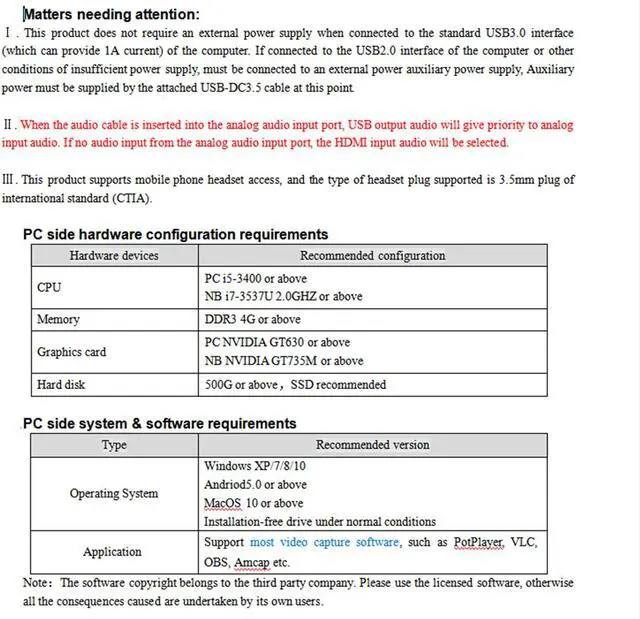

Power supply mode:USB power supply / DC5V auxiliary power supply.
Max working current:600mA.
Working temperature range:-5 ~+40?.
Working humidity range:5 to 85%RH(No Condensation).
Storage temperature:-15 to 55?.
Storage humidity:5 ~95%RH(No Condensation).
Size:67*26*13 (mm).
Weight:79g.
Accessories:Manual x1, USB-DC3.5 power cable x1, 3.5mm audio cable x1,USB3.0(Type A) cable x1.
Before you buy, we are happy to send you the English version of the manual..
Model name:4K HD-Video Capture.
Input ports:HDMI2.0 x1,LINE IN x1,MIC x1,DC3.5 x1.
Output ports:HDMI2.0 x1,USB3.0 x1, Headset x1.
HDMI video resolution:720P/1080P/2160P@24/30/50/60Hz.
Audio format:LPCM2.0/32~192KHz/16/20/24Bit.
Input color space:RGB?YUV444?YUV422?YUV420.
Video output resolution:1920x1080@30Hz Max.
Video output format:YUV or JPEG.
HDMI input cable length:2160P/AWG 26 =5m or1080P/AWG 26 =10m.
HDMI output cable length:2160P/AWG 26 =5m or1080P/AWG 26 =10m.
Power supply mode:USB power supply / DC5V auxiliary power supply.
Max working current:600mA.
Working temperature range:-5 ~+40?.
Working humidity range:5 to 85%RH(No Condensation).
Storage temperature:-15 to 55?.
Storage humidity:5 ~95%RH(No Condensation).
Size:67*26*13 (mm).
Weight:79g.
Accessories:Manual x1, USB-DC3.5 power cable x1, 3.5mm audio cable x1,USB3.0(Type A) cable x1.
Before you buy, we are happy to send you the English version of the manual..
