HDMI to IP/UVC POE Encoder Supports H.264/H.265/AVC
Versatile Connection Options | High-Quality Video Processing | Audio Support

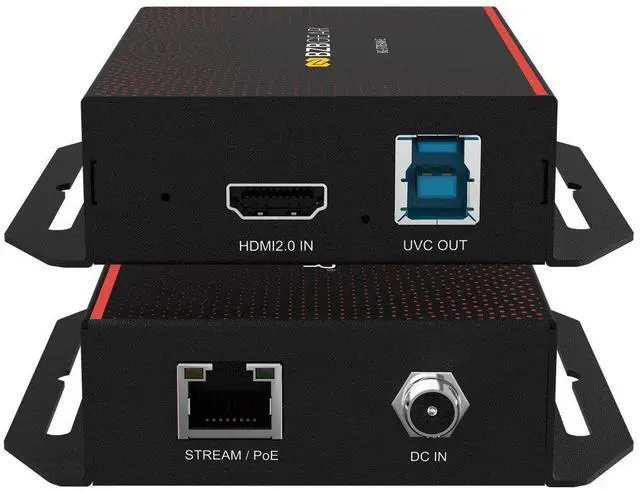

The BG-STREAM-E HDMI to IP/UVC is a compact and efficient video converter that provides a seamless connection between HDMI inputs and IP or USB 3.0 UVC outputs. This device is ideal for high-definition video streaming and recording, offering robust features such as hardware compression, real-time recording, and support for multiple streaming protocols.
Versatile Connection Options
HDMI, USB 3.0, and IP connections, including support for Dante AV-H (specific model only) and NDI|HX3 (specific model only)
High-Quality Video Processing
Capable of resolutions up to 1920x1080p at 60/50fps
Audio Support
Features AAC-LC audio codec with configurable bit rate range
Network Capabilities
Includes DHCP support and Power over Ethernet (POE) functionality
User-Friendly Interface
Accessible web UI for easy system configuration
Extensive Protocol Support
Compatible with RTSP, RTMP, HLS, TS, SRT, Dante AV-H (specific model only), and NDI|HX3 (specific model only)
UVC Device Support
Ensures compatibility with a wide range of UVC devices
Hardware Compression & Recording
Supports hardware compression and real-time recording mode; enables real-time recording for instant capture and playback
Easy Integration
Designed for smooth integration with existing AV infrastructure
Compact and Durable Design
Measuring 103.8mm x 71.2mm x 26mm with a secure locking DC jack power input for reliable operation
Efficient Encoding
Utilizes H.265/H.264/AVC encoding for high-quality video compression
Firmware Upgradeable
Easily updateable firmware to keep the device current with the latest features and improvements
Connection Diagram
An HDMI source (BG-ADAMO-JR camera) connects to the BG-STREAM-E, which sends the stream over a PoE network switch to a BG-STREAM-D connected to a display.

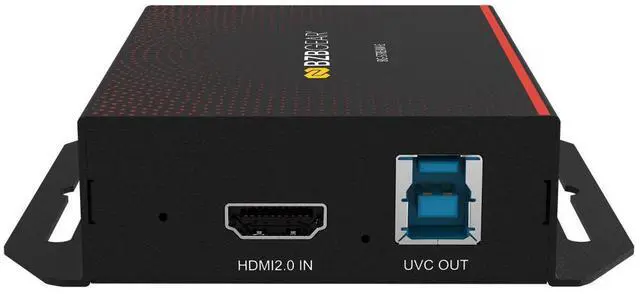

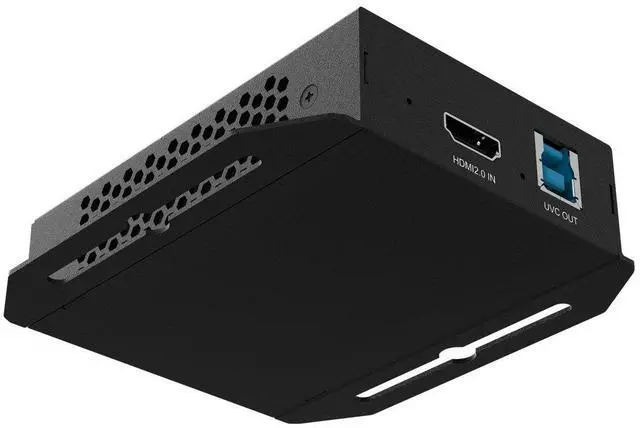

Interfaces

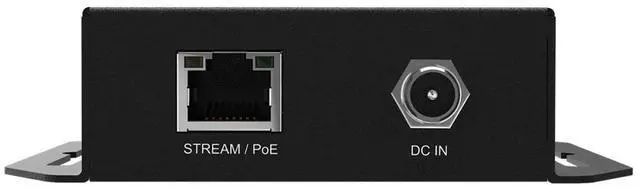

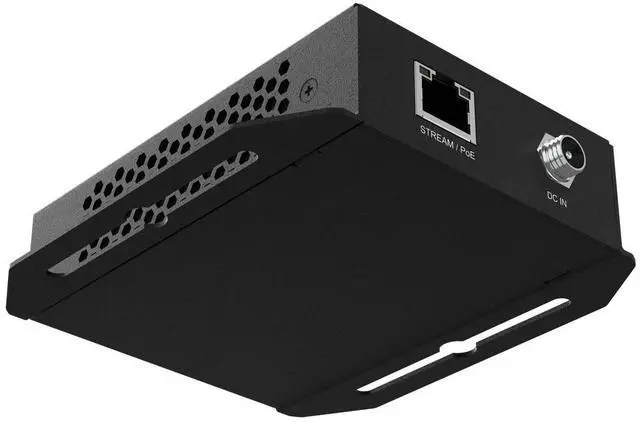

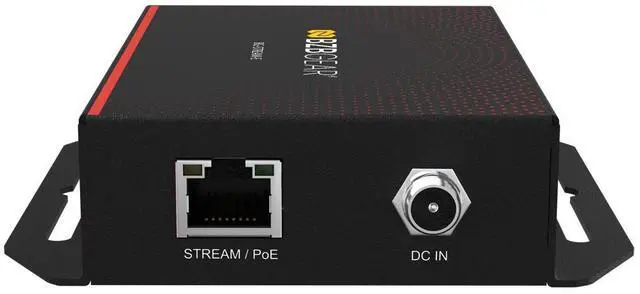

1. RJ45 Out / PoE In - Connect to a network or directly to a PC. (Note: A PoE-enabled network device is required for PoE functionality.)
2. Locking DC Power Adapter - Securely connect the power supply
3. Factory Reset - Use a pin to press and hold for a complete factory reset

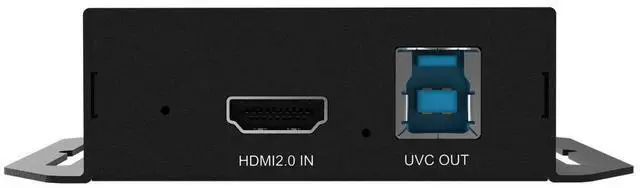

4. HDMI 2.0 In - Connect any compatible HDMI video source
5. UVC Out - Transmit video and audio via USB
| Input Interface | Video: 1x HDMI |
|---|---|
| Output Interface | Video: 1x RJ45 (RTSP/RTMP/HLS/TS/SRT/NDI HX/Dante AV-H Support); 1x USB 3.0 Type B (UVC) output |
| Video Support | H.265/H.264/AVC, Baseline/Main/High Profile Supported HDMI output Resolutions: 1920x1080p@60/50fps; 1920x1080p@30/25/24fps; 1920x1080i@60/50fps; 1280x720p@60/50fps; 1280x1024p@60fps; 1280x960p@60fps; 1024x768p@60fps; 800x600p@60fps; 640x480p@60fps; 720x480p@60fps; 720x576p@50fps |
| Audio Support | AAC-LC; Configurable bit rate range from 32Kbps to 384Kbps; Sample rate: 48KHz, 16bit |
| Max. FPS | 1920x1080p@60/50fps |
| Network / Ethernet Support | 1x RJ45 for 10/100/1000Mbps Ethernet; DHCP Client |
| Streaming Protocol Support | NDI Support (Separate License with NDI Required); Dante AV-H (Separate License with Dante AV-H Required); RTSP over UDP/TCP/Multicast/HTTP; RTMP (Publish); TS over IP; HLS |
| Additional Features | UVC Device Supported; Web UI for System Configuration; Firmware Upgradable |
| Power Supply | DC Input; PoE Support |
| Unit Dimensions | 4.1in x 2.8in x 1in [103.8mm x 71.2mm x 26mm] |
| Package Contents | 1x BG-STREAM-E; 1x DC Power Adapter |
