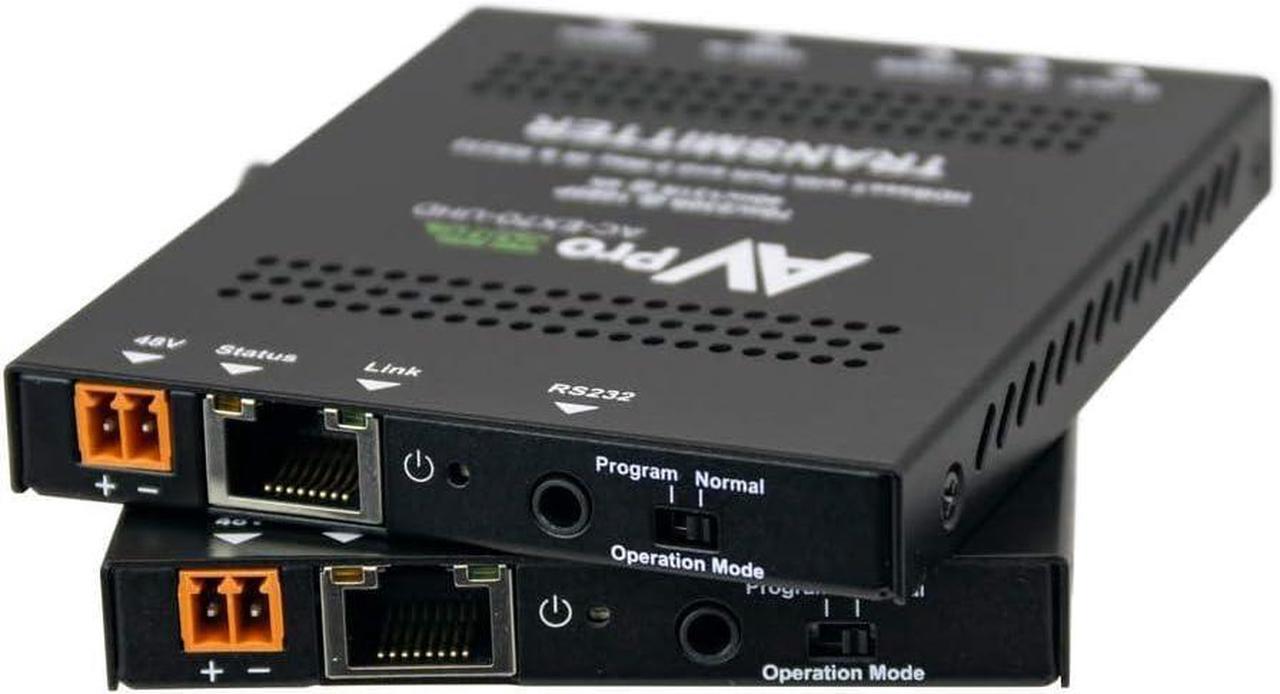

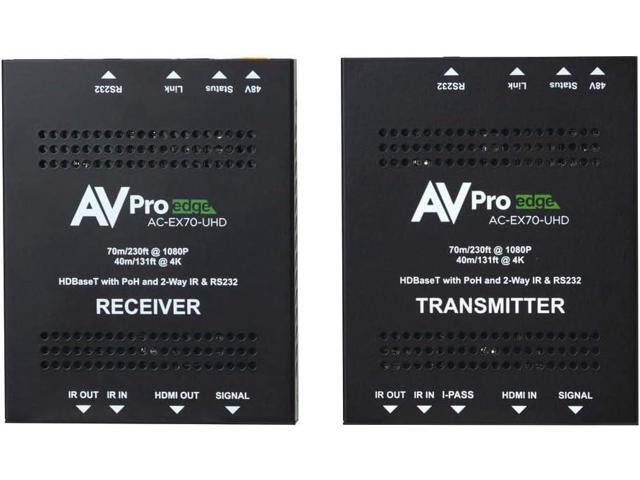

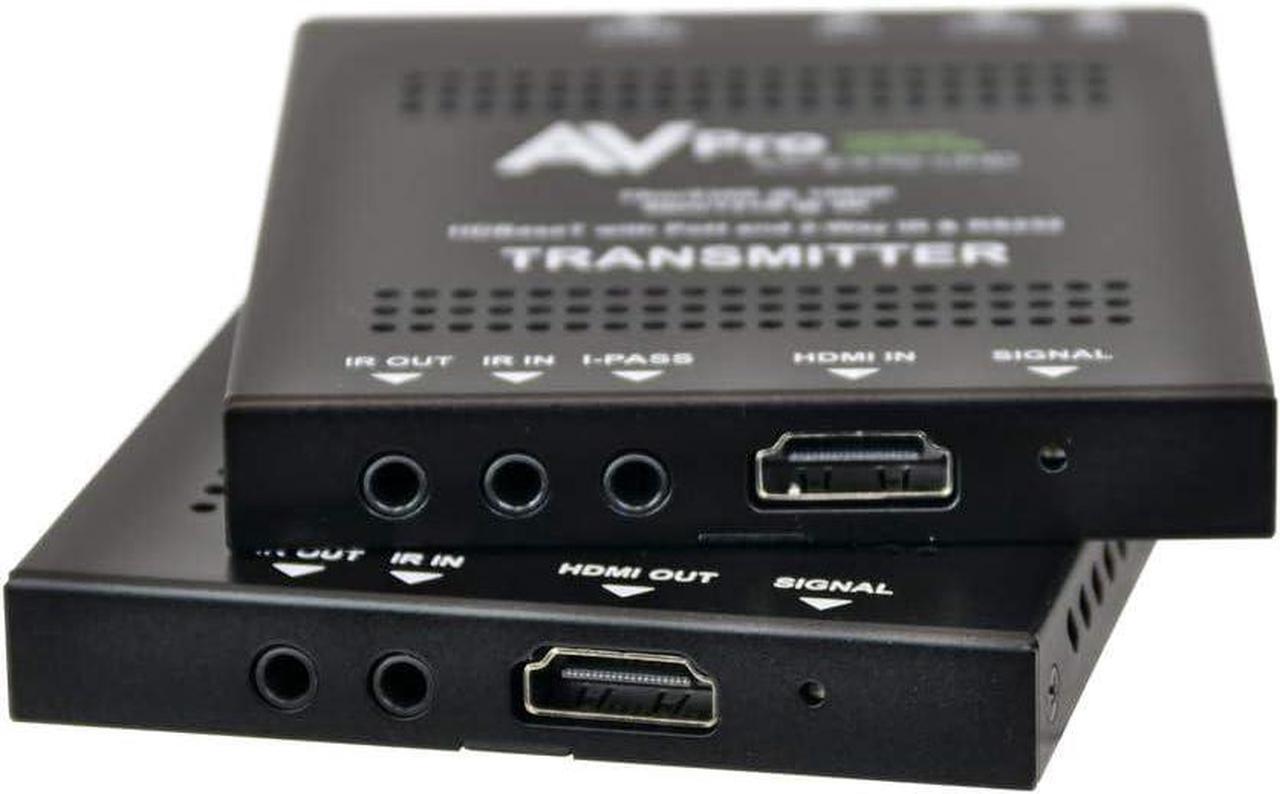

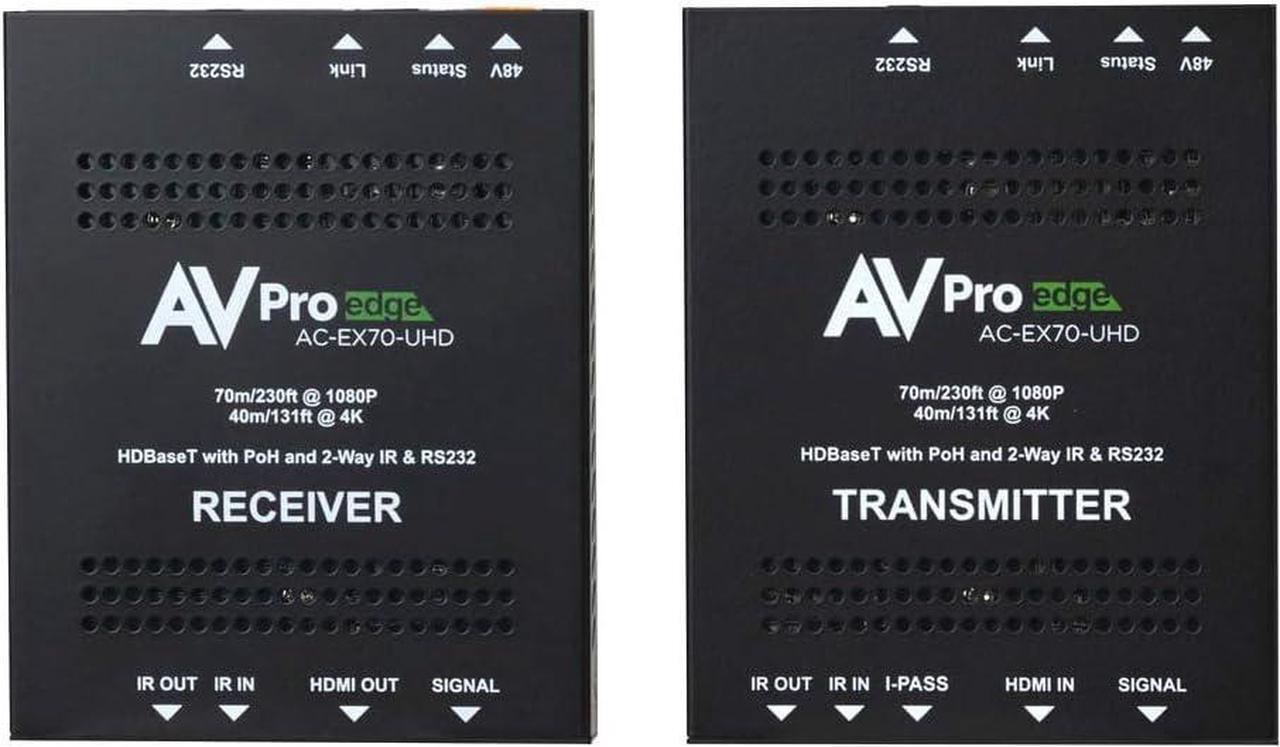

AVPro Edge AC-EX70-UHD-KIT Compatible with HDBaseT

The AC-EX70-UHD-Kit is a Super Slim 70 meter HDMI via HDBaseT extender Rx and TX over single CAT-5e/6a/7 UTP/STP. The AVPro Edge primary extender is the most cost effective, state of the art and reliable single CAT 70 meter extender on the market today, solving problems for both commercial and residential markets for distributing high value 4K UHD content from rack to display. With the additional ability to cascade extenders affordable and reliable HDMI extension is now possible. Additionally AC-EX70-UHD offers solutions for UHD/HD uncompressed distribution in residential digital entertainment centers, retail stores, AV events that require reliable and long distance distribution, suitable for Data Center, Control Rooms, Conference Rooms, Schools and Corporate Training environment.

Features: Plug & Play Field Firmware Updateable 10.2 Gbps Video Bandwidth Use single UTP/STP LAN cable (CAT-5E/6A) with substitute HDMI cable to achieve long distance transmission. UTP/STP cable termination follows the standard of IEEE-568B. Transmission distance reaches up to 70 meters at 1080P and 4K up to 40 meters. Bi-Directional Power (RX powered by TX or Tx Powered by Rx) HDMI V 2.0 (a/b) supported. HDCP 2.2 / 1.4 compliant.
HDR Support UHD support: 4Kx2K 30Hz or 4Kx2K 60Hz
YUV 4:2: 0 LED indicators monitoring power status. ESD protection circuitry (Inputs / Outputs) till 7KV. Pair of mounting ears (supplied) Transfer Bi-directional IR & RS-232 Can Cascade Includes: AC-EX70-UHD-T (Transmitter) AC-EX70-UHD-R2 (Receiver) Operating Instructions 48V Power Supply (1) IR Tx Unit (1) IR Rx Unit 3.5 mm stereo plug to male, DB9 for RS-232 to serial port 3.5 mm stereo plug to female, DB9 for RS-232 to PC Rack Ears
