Micro Converter HDMI to SDI with Power,HDMI in to Two SDI Output Mini 3G HD SD-SDI Video Converter Adapter with Audio Embedder,Support 1080P 60Hz,Auto Format Detection for Camera(HDMI to SDI)
- **********HDMI Input ,2 SDI Outputs ,HDMI Type A input,Convert high definition 1080P HDMI signal to broadcast quality SDI display*****Auto format detection for 3G-SDI, HD-SDI and SD-SDI,NOTE: This is not a bi-directional converter. DO NOT use for SDI HDMI conversion*****HDMI input:720P@60Hz,1080i@50/60Hz,1080p@24/25/30/50/60Hz.SDI output:720P@60Hz,1080i@50/60Hz,1080p@24/25/30/50/60Hz*****Converts 3G/HD/SD-SDI signal to HDMI with resolution up to 1080p 60Hz,Software Control,no need driver, plug and play*****Warranty:We Have a Strict Quality Control System to Ensure A Stable Quality.Product with 1 Year Warranty and Lifetime support.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Color: HDMI to SDI

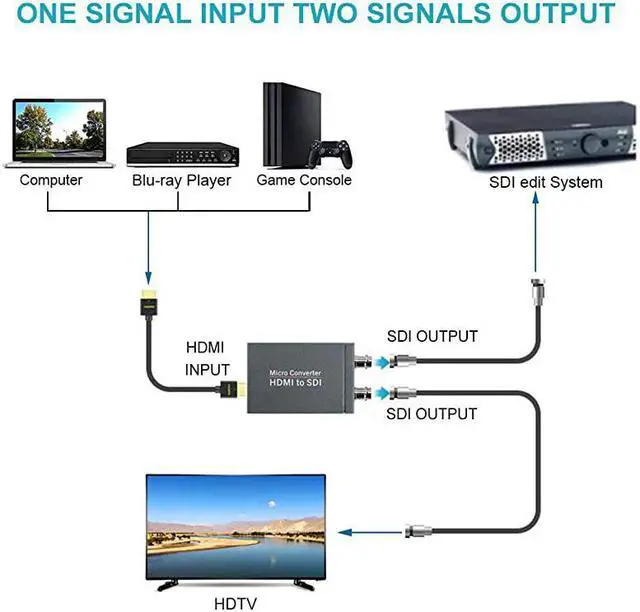

This HDMI to SDI Converter allows you to seamlessly convert an HDMI signal to broadcast quality SD-SDI/HD-SDI/3G-SDI signal. Its not only widely applied to post-production and broadcast application, such
as: broadcast room and non-linear editing, but also to the field of optical transmission with HDMI port on the equipment
Feature: Supports HDMI 1.3 a input, 2ch SDI output, Full 10bit conversion supported Full 1080p 60Hz HDMI with embedded audio; Synchronized audio video output, support 8-channel embedded audio Optional Audio SRC feature, Support for any HDMI audio sampling frequency channel input Built-in ESD protection circuitry can effectively prevent electrostatic damage
Video Input: HDMI V 1.3 a, 30/60 bits per pixel, RGB or YUV, SD, HD, 525i, 625i, 720P 50/ 59.94 /60, 1080i/50/ 59.94 /60, 1080P 23.98 /24/25/ 29.9 /30/50/ 59.94 /60 HDMI Standard Type A
Connector Video Output: 3G, HD, AND SD-SDI(Aito-slected), SMPTE-259/274/292/296/372/424/425, 2xBNC
Audio Input: HDMI Embedded audio, 24bit/48KHz or any HDMI audio input (SRC require specific models), 8 channels max
Audio Output: SDI Embedded audio, 24bit/48KHz, 8 channels max
Specification: Power
Supply: 5V/1A

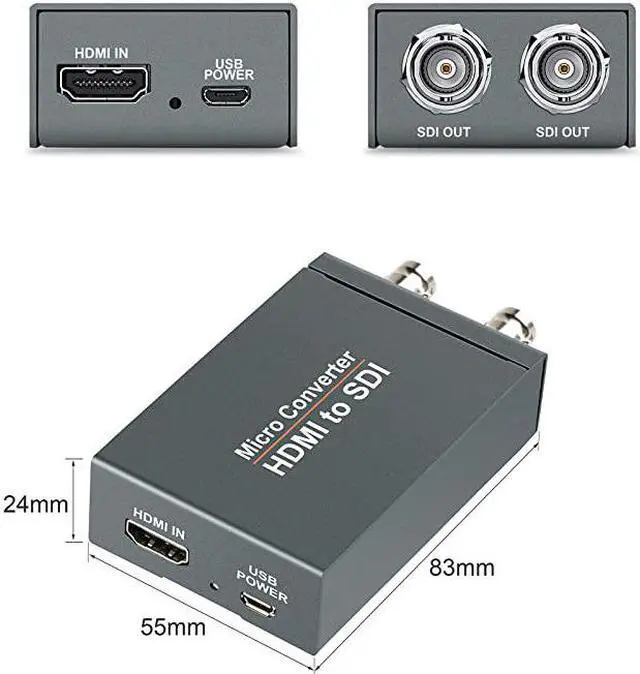

Input port: 1xHDMI
Output port: 2xSDI (BNC)
SDI format: SD-SDI/HD-SDI/3G-SDI
Data Rate: 270Mb/s, 1.485G b/s, 2.97G b/s Support HDMI 1.3 a, HDCP 1.3

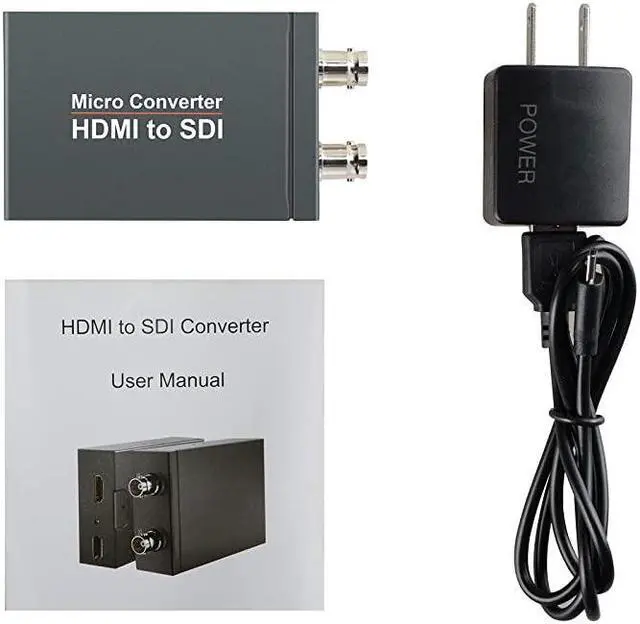

Package: 1 x HDMI to SDI Converter 1 x Power adapter 1 x Manual
This HDMI to SDI Converter allows you to seamlessly convert an HDMI signal to broadcast quality SD-SDI/HD-SDI/3G-SDI signal. Its not only widely applied to post-production and broadcast application, such
as: broadcast room and non-linear editing, but also to the field of optical transmission with HDMI port on the equipment
Feature: Supports HDMI 1.3 a input, 2ch SDI output, Full 10bit conversion supported Full 1080p 60Hz HDMI with embedded audio; Synchronized audio video output, support 8-channel embedded audio Optional Audio SRC feature, Support for any HDMI audio sampling frequency channel input Built-in ESD protection circuitry can effectively prevent electrostatic damage
Video Input: HDMI V 1.3 a, 30/60 bits per pixel, RGB or YUV, SD, HD, 525i, 625i, 720P 50/ 59.94 /60, 1080i/50/ 59.94 /60, 1080P 23.98 /24/25/ 29.9 /30/50/ 59.94 /60 HDMI Standard Type A
Connector Video Output: 3G, HD, AND SD-SDI(Aito-slected), SMPTE-259/274/292/296/372/424/425, 2xBNC
Audio Input: HDMI Embedded audio, 24bit/48KHz or any HDMI audio input (SRC require specific models), 8 channels max
Audio Output: SDI Embedded audio, 24bit/48KHz, 8 channels max
Specification: Power
Supply: 5V/1A
Input port: 1xHDMI
Output port: 2xSDI (BNC)
SDI format: SD-SDI/HD-SDI/3G-SDI
Data Rate: 270Mb/s, 1.485G b/s, 2.97G b/s Support HDMI 1.3 a, HDCP 1.3
Package: 1 x HDMI to SDI Converter 1 x Power adapter 1 x Manual
