BNC to HDMI Converter allows you to converts HD-TVI/CVI/AHD/CVBS signal to HDMI signal, it is typically used to connect a HD-TVI/CVI/AHD/CVBS security camera to an HDMI monitor to display a live high definition video feed. Build in high performance smart chip and with HD video processing technology, support up to 1080p HDMI output, provide bright vivid colors video images, real-time display, work with up to 700m coaxial cable, no loss in video quality or added compression.
Features:
- Converts HD-TVI/CVI/AHD/CVBS signals to HDMI
- Support 8MP AHD/TVI/CVI test
- Auto Recognition Resolution, indicator visual display
- 1080p HDMI out for monitor/TV or HDMI device

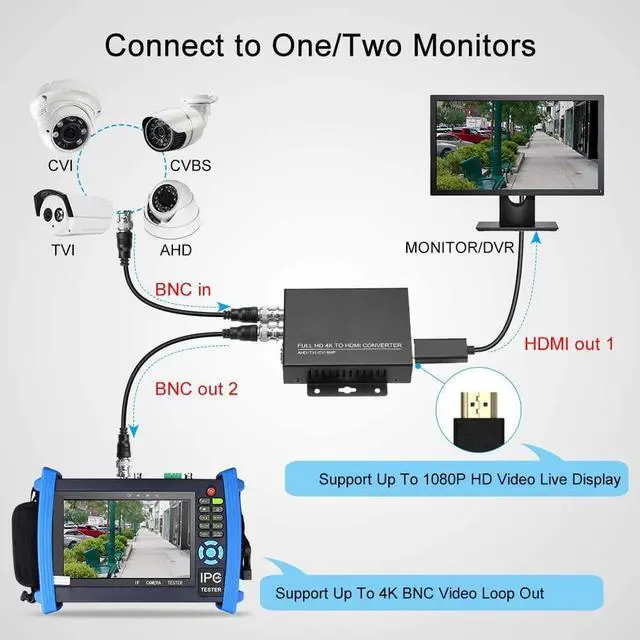

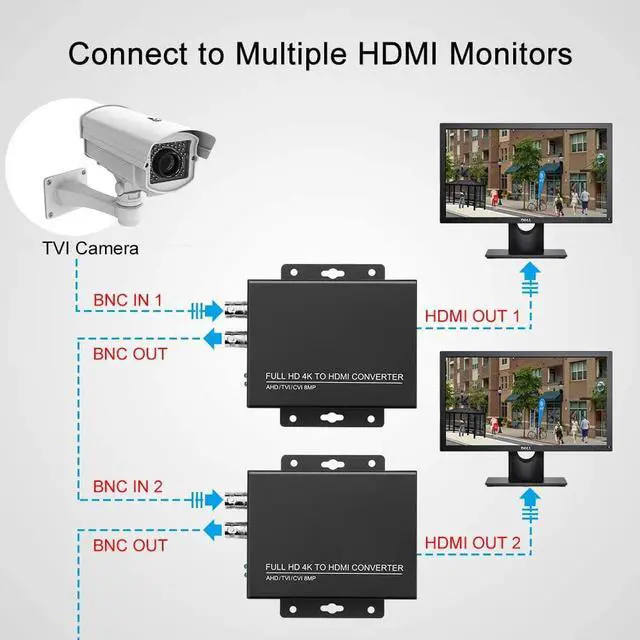

- 4k AHD/TVI/CVI/CVBS Loop out for DVR or BNC device
- Transmits up to 700 meters over coaxial cable( Different resolution, different transmission distance)

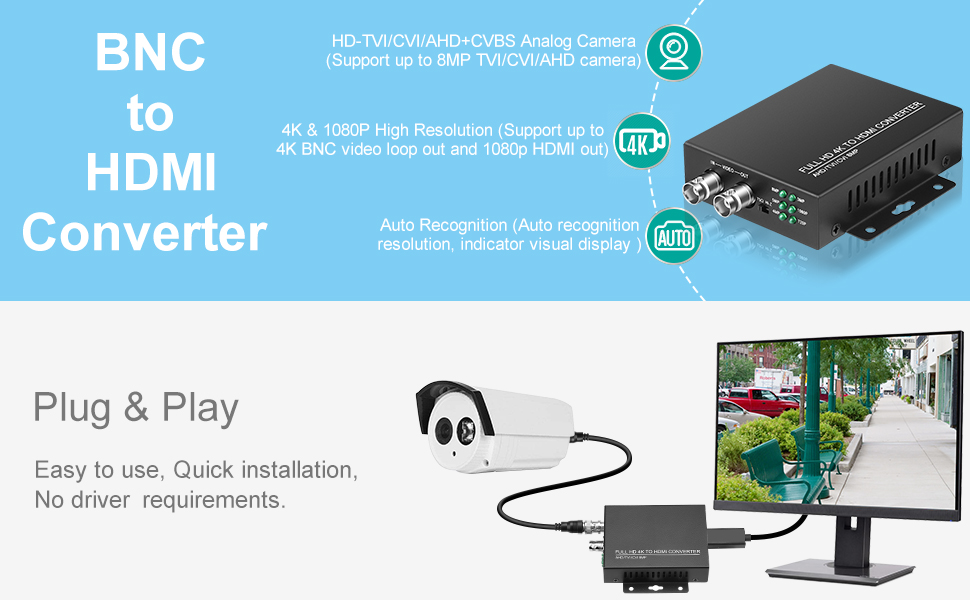

- Plug & Play, no driver requirements
- High Compatibility
- Pocket-sized converter features a sturdy metal housing
Product Parameters:
- HDMI Output Resolution: 1080p 60Hz, HD-LINK light
- Operating Temperature: -10°C~60°C / -14°F~140°F

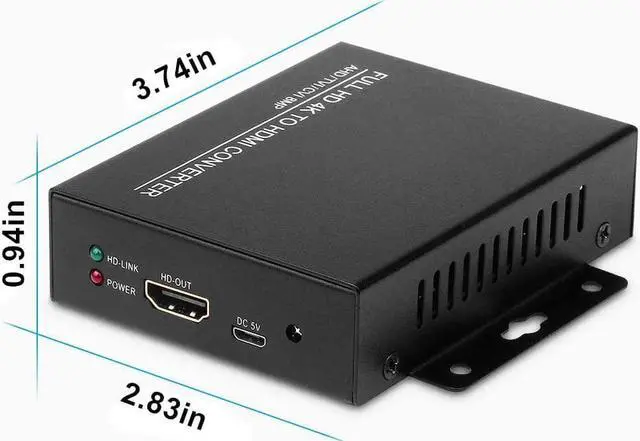

- Dimensions: 3.74(L) x 2.83 (W) x 0.94(H) inch
- Supported HD-TVI Camera Resolutions & Frame Rates:
720p @ 25/30/50/60 FPS
1080p @ 25/30 FPS
3 MP (2048 x 1536p) @ 18/25/30 FPS
4 MP (2688 x 1520p) @ 15 FP, 4 MP (2560 x 1440p) @ 12/25/30 FPS
5 MP (2592 x 1944p) @ 12.5/20 FPS
4K (8 MP) (3840 x 2160p) @ 12.5/15 FPS
- Supported CVI Camera Resolutions & Frame Rates:
720p @ 25/30/50/60 FPS
1080p @ 25/30 FPS
4 MP (2560 x 1440p) @ 25/30 FPS
4K (8 MP) (3840 x 2160p) @ 12.5/15 FPS
- Supported AHD Camera Resolutions & Frame Rates:
720p @ 25/30 FPS
1080p @ 25/30 FPS
3 MP (2048 x 1536p) @ 18/25/30 FPS
4 MP (2560 x 1440p) @ 12/25/30 FPS
5 MP (2592 x 1944p) @ 12.5/20 FPS
4K (8 MP) (3840 x 2160p) @ 15 FPS

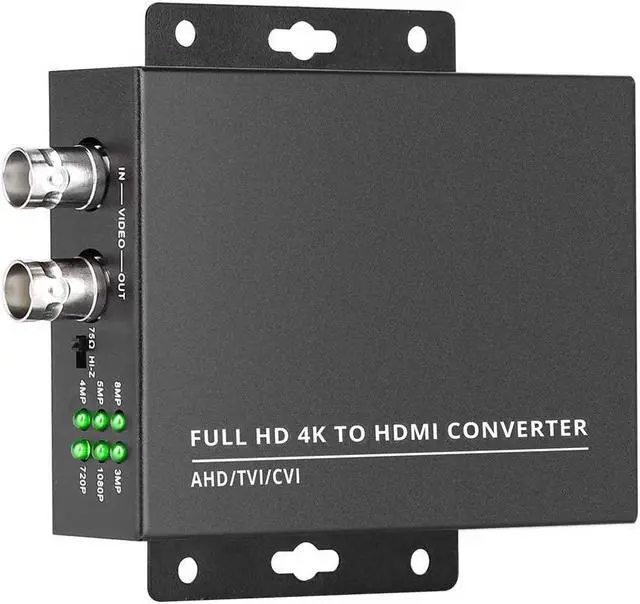

The pocket-sized converter features a sturdy metal housing, with heat dissipation holes and mounting holes on both sides, easy to dissipate heat and allow you to mount it nearly anywhere.

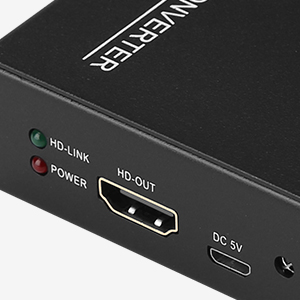

This converter with power and signal LED status indicators. With HDMI output port and DV 5V micro-USB port. Can be easily connected to and powered by laptops, projectors or power bank.
There is a 75 Omega/ HI-Z switch. If you are using the BNC loop output (optional), this switch should be set to HI-Z. If you are only using the HDMI output (without the BNC loop), this should be set to the 75 Omega setting.
