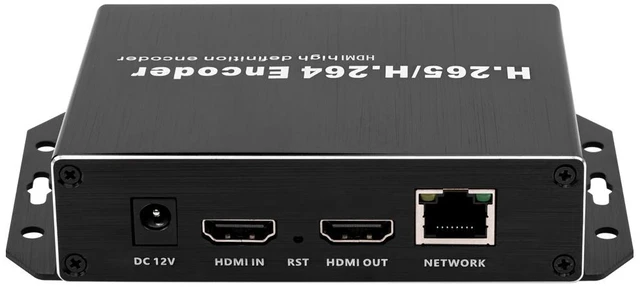

    EXVIST H.265 1080P PoE HDMI Video Encoder with HDMI Loopout, Live Streaming Encoder for YouTube Facebook, CCTV Surveillance IPTV, SD Card Slot Max 128G, RTMP RTSP SRT HTTP DDNS

    Be the first to review this product...
    • Dual Power Options: Supports DC12V 1A or PoE (IEEE802.3af) via single Ethernet cable up to 140 meters with a standard PoE switch (not included).
    • Multi-Platform Streaming: Push via RTMP (H.264) to YouTube, Facebook Live, Twitch, Wowza and more; pull via TS (H.265/H.264) for IPTV; dual-address pushing supported.

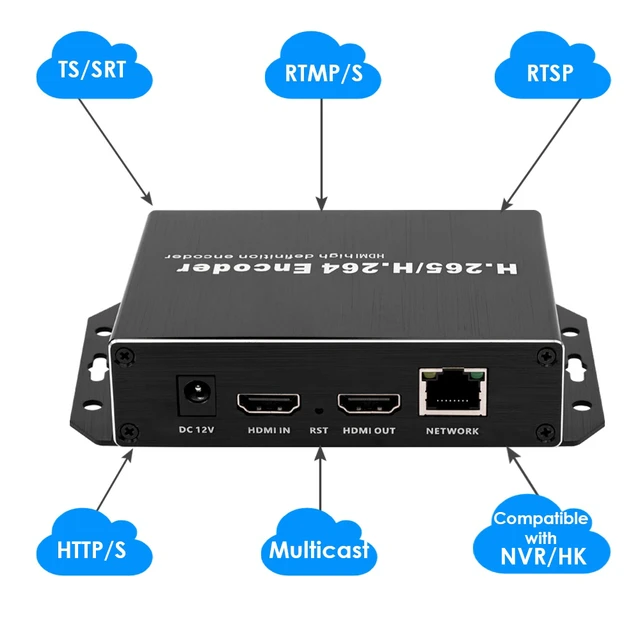

    • Wide Protocol Support: TCP/IP, DHCP, DNS, DDNS (3322, Oray), HLS, HTTP, RTP, RTSP, RTMP, SRT, TS, UDP, Multicast; ONVIF and Hikvision private protocol compatible.
    • Cross-Browser Management: Works with IE, Edge, Chrome, Firefox, Safari; preview live video, set AAC audio, adjust bitrate, add logo and OSD text, and upgrade firmware remotely.
    • Easy SD Recording: Press the reset/record button for one second to save real-time MP4 video to a Micro SD card (max 128G); preview and download files via the encoder interface.
    +
    +
    Overview
    Specs
    Reviews

    Any questions? Ask CelesteSM will help you find out quickly.

    Try me now

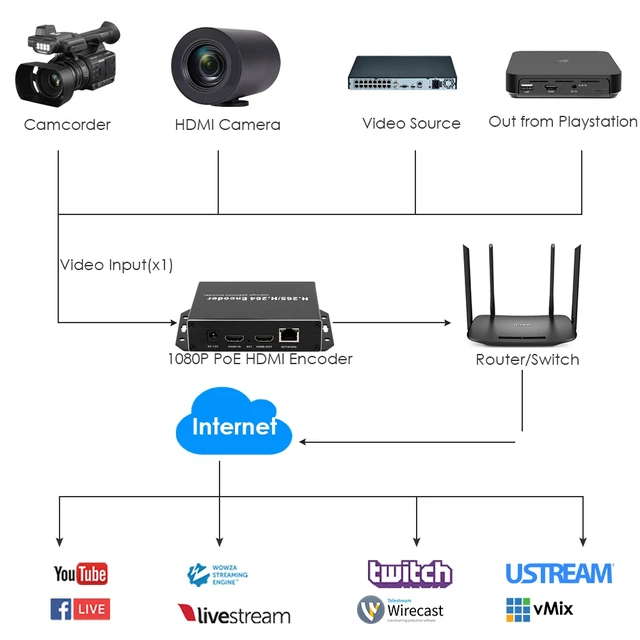

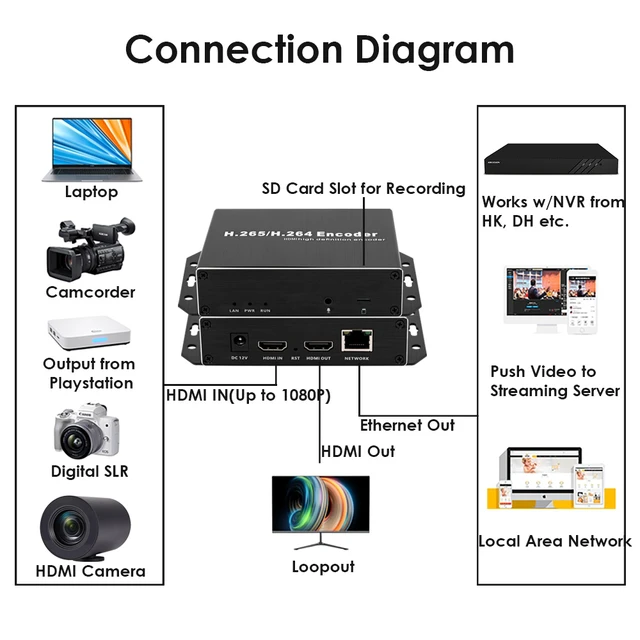

    The EXVIST H.265 1080P PoE HDMI Video Encoder with HDMI Loopout is a professional-grade streaming solution designed for CCTV surveillance, live broadcasting, IPTV, and video conferencing. It encodes HDMI input up to 1080P@60FPS using H.265/H.264 and delivers streams via RTMP, RTSP, SRT, TS, HLS, UDP, and more. Power it through DC12V or PoE (IEEE802.3af) with a single Ethernet cable run up to 140 meters. The HDMI loopout lets you monitor locally while streaming, and the built-in Micro SD slot (max 128G) enables one-button MP4 recording.



    Key Features

    • H.265/H.264 video encoding up to 1080P@60FPS with HDMI loopout

    • PoE (IEEE802.3af) or DC12V power; single-cable installation up to 140 meters

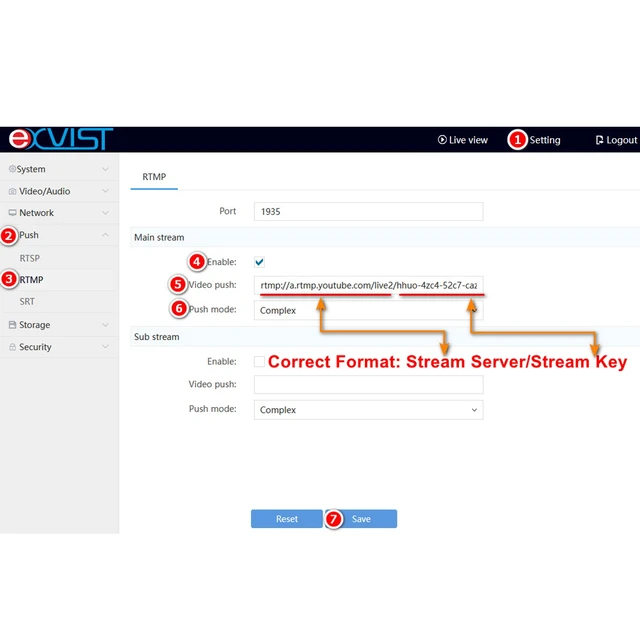

    • RTMP push to YouTube, Facebook Live, Twitch, Wowza, Ustream, and more

    • TS pull streaming for IPTV; dual-address stream pushing supported

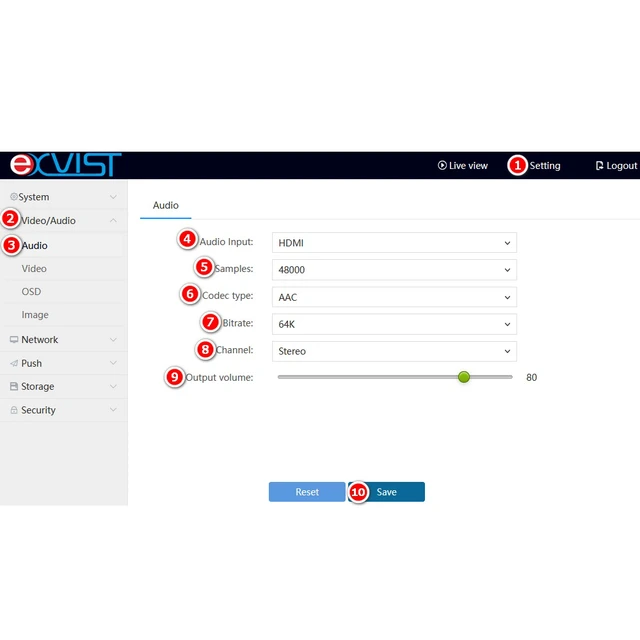

    • AAC, G.711A, G.711U audio encoding with adjustable volume and stereo/mono

    • Cross-browser preview via IE, Edge, Chrome, Firefox, Safari

    • Logo and OSD text overlay; remote firmware upgrade

    • One-button Micro SD recording (max 128G) in MP4 format

    • ONVIF and Hikvision private protocol compatible (iVMS-4200/8700, NVR)



    Specifications

    • Model: ON-DMI-16DP (Max. 60FPS)

    • Video Input: 1x HDMI 1.4, up to 1080P@60FPS

    • Video Output: 1x HDMI loopout, 1x RJ45 10/100M network port

    • Video Encoding: H.264/AVC, H.265/HEVC, 1 channel

    • Bitrate: 64-12000Kbps (500 Kbps recommended), CBR/VBR

    • GOP: 5-200 frames; Frame Rate up to 25/30 or 50/60fps

    • Audio Input: HDMI embedded or 3.5mm TRS line-in

    • Audio Encoding: AAC, G.711A, G.711U; 8k/16k/32k/44.1k/48kHz sampling

    • Protocols: RTSP, RTMP, RTMPS, SRT, HLS, TS, UDP, TCP/IP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, Multicast

    • Local Recording: Micro SD slot, max 128GB, MP4 format

    • Power: DC12V 1A or PoE IEEE802.3af, consumption 3W

    • Operating Temperature: -10°C to +55°C; Humidity 95% non-condensing

    • Certifications: CE, FCC, RoHS

    • Dimensions: 134 x 74 x 30 mm; Net Weight: 186g

    • Default IP: 192.168.1.120; Credentials: admin / 12345



    Applications

    • CCTV surveillance and NVR recording systems

    • Live streaming to YouTube, Facebook Live, Twitch, and other platforms

    • IPTV and hotel TV systems

    • Video conferencing and telemedicine

    • Digital signage and multimedia stitching displays

    • Teaching and campus broadcast

    • Online live streaming broadcast or server setups
