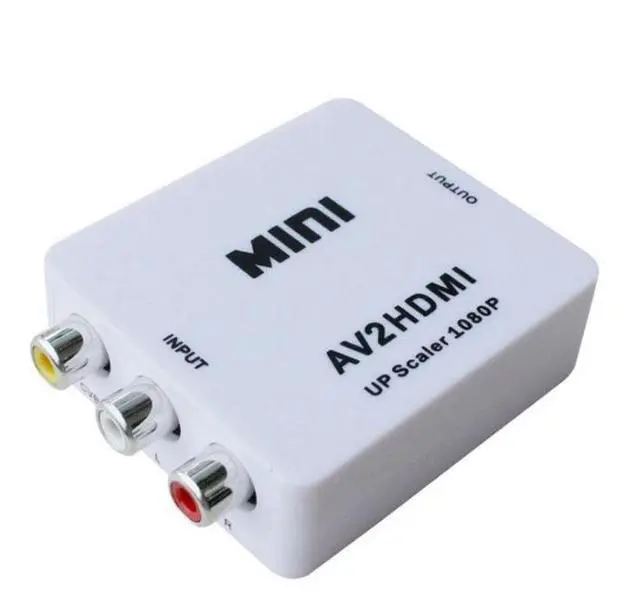

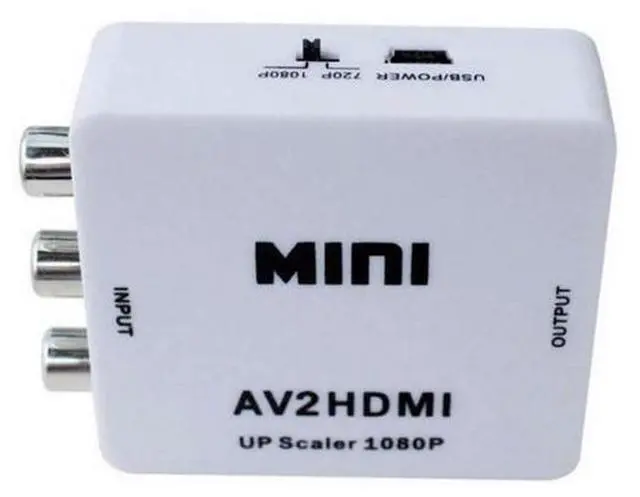

Product Name AV to HDMI Converter, Composite Audio and Video (CVBS) to HDMI, Red Yellow White Lotus to HDMI
Product Dimensions 66 (L) x55 (W) x20mm

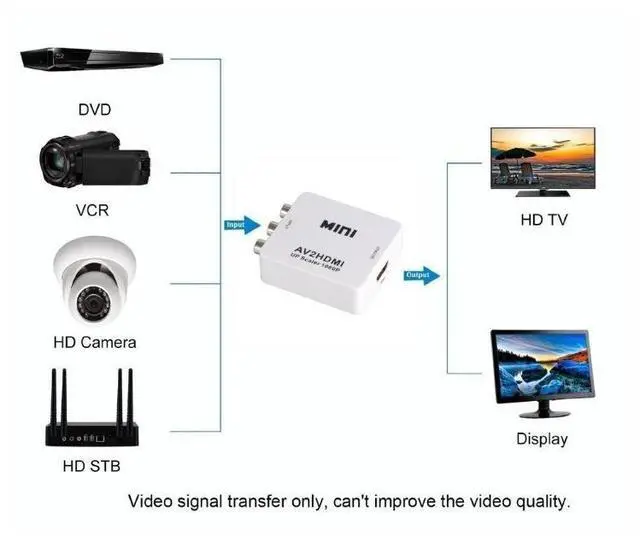

Product Introduction The AV to HDMI signal converter can convert AV (CVBS) composite video signals and FL/FR stereo audio signals into HDMI digital signals, doubling the composite audio and video signals from ordinary DVDS, cameras, etc. to high-definition HDMI signal output, making it convenient to connect to LCD TVS, high-definition monitors, etc.
Product Features
Input signal format: AV(red, yellow and white) cvbs composite audio and video.
Output signal: HDMI 1080P 60HZ/720P 60HZ.
Support video input formats: PAL, NTSC 3.58 NTSC 4.43, SECAM, PAL/M, PAL/N.
Compatible with the HDCP protocol.

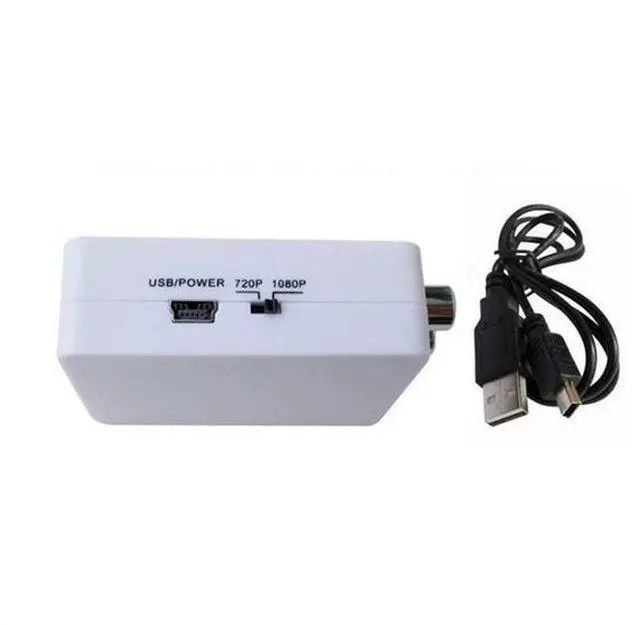

Power supply: If the power supply is insufficient, USB power supply (5V)
Introduction
The MINI AV2HDMI converter is a general-purpose inverter analog composite input to HDMI1080P (60HZ) output. Analog-to-digital conversion, in this module, adopts 10-bit sampling with a maximum of 162MSPS, black/white level expansion, improved color transition, dynamic range expansion, blue stretching, automatic detection, and automatic conversion to a composite signal output of 1080 (60HZ). Make videos to live, providing clear and most realistic high-definition visual effects.
Features
No driver installation required. Portable, flexible and plug-and-play.
It offers advanced signal processing with extremely high accuracy, color, resolution and detail.
Supports standard TV format inputs such as PAL, NTSC 3.58, NTSC 4.43, SECAM, PAL/ M, and PAL/ N.
Supports HDMI1080p or 720p output.
Specificaitons

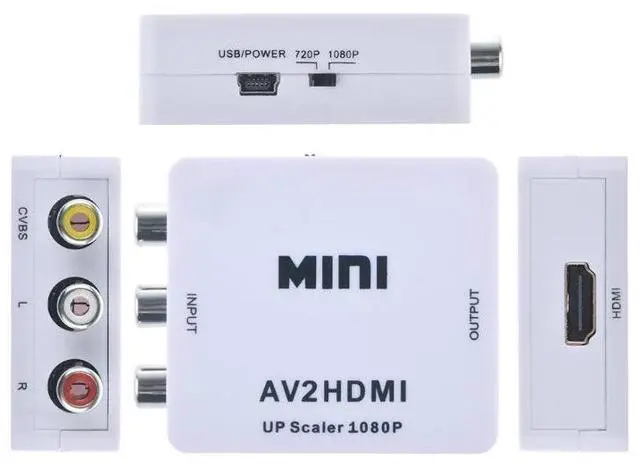

Input port: 1xRCA (yellow, white, red).
Output port: 1xHDMI.
