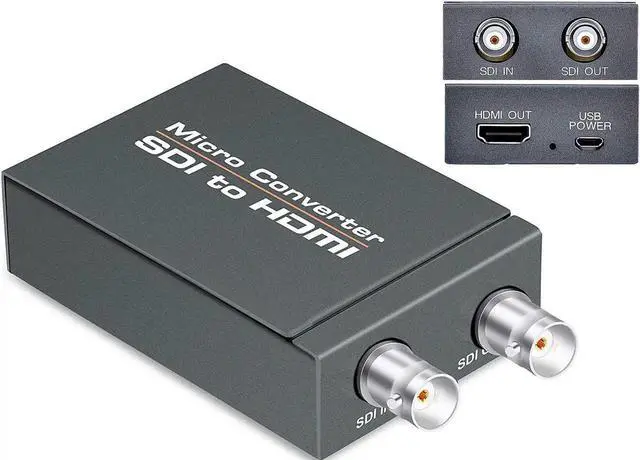

DIXSG Micro Converter SDI to HDMI,3G-SDI/HD-SDI/SD-SDI to HDMI Converter Adapter,SDI in HDMI out SDI Loopout,1080P Video Audio Splitter,Support HDCP 1.3 for Camcorder Camera to TV

SDI to HDMI Converter Adapter for 3G-SDI / HD-SDI / SD-SDI Signals, 1080P@60Hz

SDI to HDMI Converter: SDI to HDMI micro converter can convert SDI to HDMI signal (NOT use for HDMI to SDI), so you can play SDI videos on your HDMI devices. The SDI converters automatically detect 3G-SDI, HD-SDI and SD-SDI formats.

SDI Input: Suitable for all 3G-SDI /HD-SDI /SD-SDI devices. 3G-SDI support 1080p @60/59.94/50Hz (SMPTE 425M, Level A). HD-SDI support 1080i @60/59.94/50Hz, 720P@60 /59.94/50Hz. And SD-SDI support NTSC @59.94Hz, PAL @50Hz. And the speed up to 300ft (3G-SDI)/ 500ft (HD-SDI)/ 1000ft (SD-SDI).

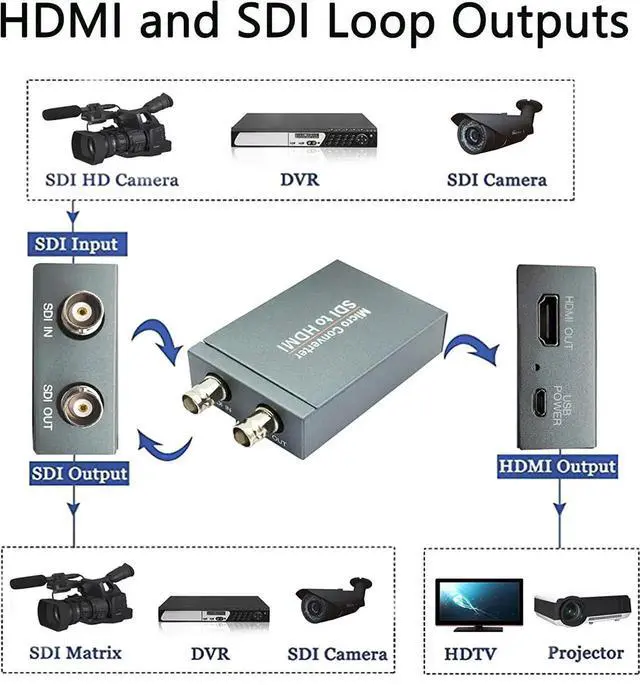

SDI Loopout: With SDI Loop Output, you can gain the same video signal directly to your display devices. The speed of SDI loopout UP to 300ft and the transferring data rate is up to 2.97Gbps, so you can transfer data quickly.

HDMI Output: The SDI capture devices transfer SDI to HDMI, but can not convert HDMI TO SDI. The BNC converter supports HDMI 1920x1080P@60Hz, 1920x1080I@60Hz, 1280x720P@60Hz.

Please Note:

1. Please remember the converter can not be bi-directional, NOT HDMI to SDI, just convert SDI to HDMI.
2. Please do not use the USB cable to transfer because it is a charging cable.
3. When you use the SDI converter, please connect the power adapter. Or it will not work.
4. Please carefully check if power supply/ SDI device/ HDMI device is well connected.
5. The SDI to HDMI converter starts to work after all the devices are well connected.
6. You need to prepare a SDI cable and a HDMI cable.
7. And the quality of the cable may affect video quality.

Specifications:

1. SDl Input/Output Devices: SD-SDI, HD-SDI, 3G-SDI
2. SDl Data Transfer Tates: 270Mb/s, 1.485Gb/s, 2.97Gb/s
3. Input/Output Resolutions: 720P/@60Hz, 1080i/@50Hz/@60Hz, 1080p/@50Hz/@60Hz

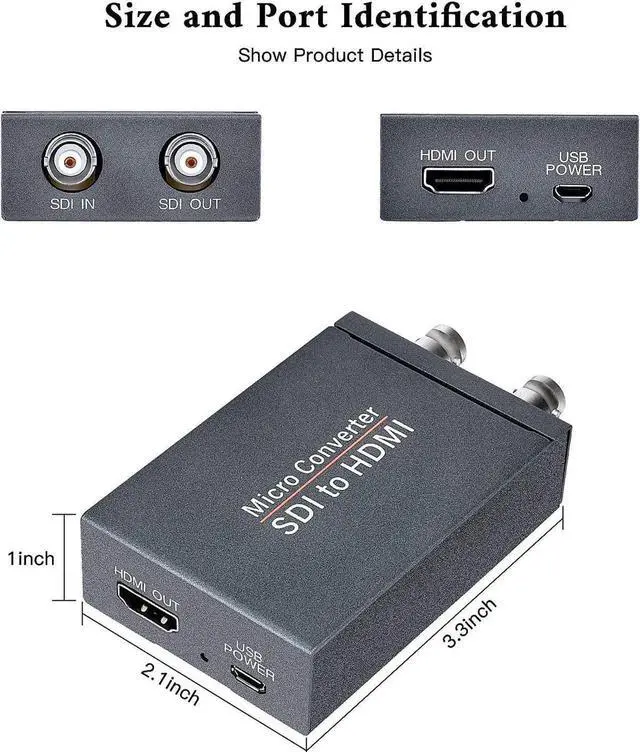

4. Dimensions: 83x55×24(mm)
5. Weight: 163g
6. Working Temperature: 0-59 centigrade

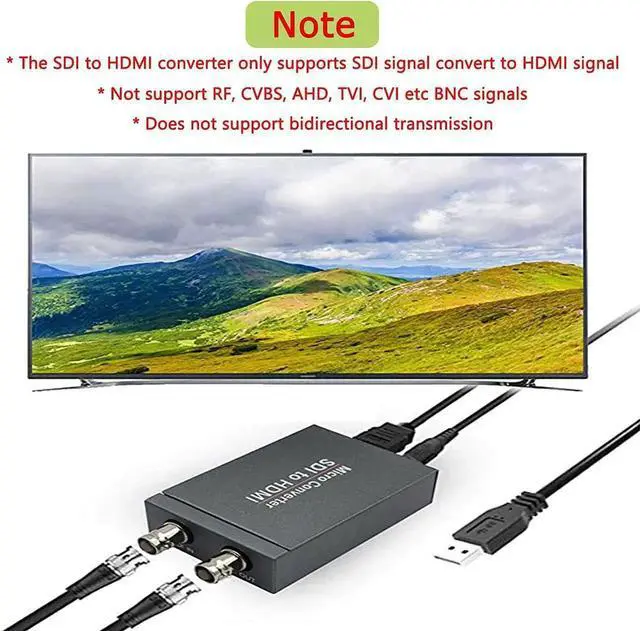

SDI to HDMI Converter, Convert pure digital SDI signals to HDMI signal. Auto format detection for 3G-SDI, HD-SDI and SD-SDI. designed for professional SMPTE video applications and support audio and video synchronization output. The SDI to HDMI converter only supports SDI signal convert to HDMI signal, not support RF, CVBS, AHD, TVI, CVI etc BNC signals. Does not support bidirectional transmission.

Support SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C.

Supports HD-SDI and 3G-SDI.

Only supports SDI signals, does not support RF, CVBS, AHD, TVI, CVI and other BNC signals.

Only supports FHD 1080p, not UHD 4K.

It is an SDI to HDMI converter and cannot be used in reverse.

SDI video input: 1 x SDI (SDI / HD-SDI / 3G-SDI).

Video output: 1xHDMI A type output (1080P @ 60Hz), 1xSDI loop output.

Input audio signal: SDI embedded.
