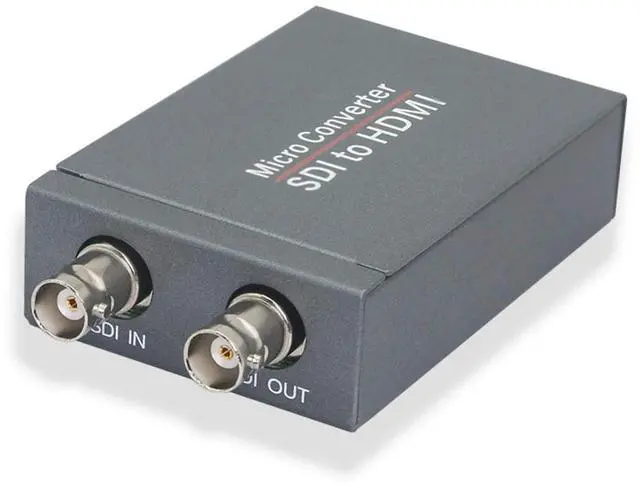

BUCIER 3G-SDI to HDMI Converter, 1080P@60Hz, Auto Format Detection, Stereo Audio De-embedder, Supports HDCP

SDI to HDMI converter is specially designed for professional SMPTE video applications. The SDI to HDMI converter can display SDI signals on HDMI monitors, providing you with fast signal transmission without any loss, allowing you to easily Display your work on a normal HDMI monitor, audio and video synchronization output.

This converter is very effective for any display. When the SDI source input is connected through the converter, the source will be automatically converted to HDMI to any monitor with audio.

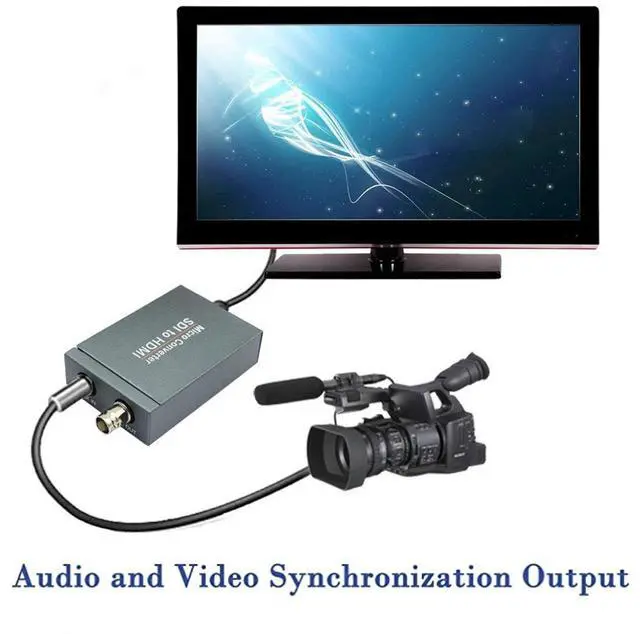

When used with a camera, it can provide a resolution of 1080P on the display, and can help you adjust the camera on the screen of a small camera.

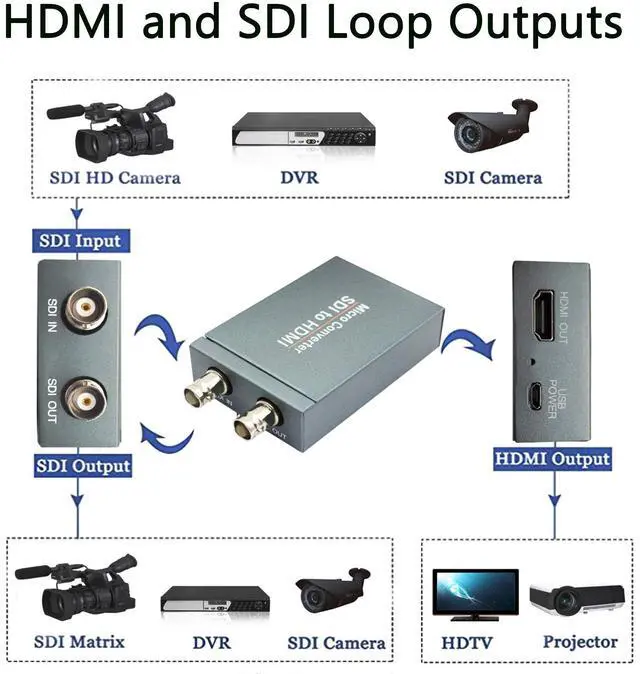

SDI in HDMI out and SDI Loop Outputs: Support 1 HDMI output and 1 SDI Loop OutputSDI data transfer rate up to 2.97Gbps, HDMI Output up to 1080P@60Hz. The loop-through design also allows you to view the original SDI content on an SDI monitor simultaneous with the HDMI display. SDI Input Resolutions: 480i / 567i, 720P / @ 30Hz / @ 50Hz / @ 60Hz, 1080i / @ 50Hz / @ 60Hz, 1080p / @ 50Hz / @ 60Hz, 1080P / @ 24Hz / @ 25Hz / @ 30Hz. HDMI Output Resolutions: 720P / @ 50Hz, 720P / @ 60Hz, 1080p / @ 24Hz / @ 25Hz / @ 30Hz / @ 50Hz / @ 60Hz.

1. Support SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C.

2. Supports HD-SDI and 3G-SDI. Only supports SDI signals, does not support RF, CVBS, AHD, TVI, CVI and other BNC signals.

3. Only supports FHD 1080p, not UHD 4K.

4. It is an SDI to HDMI converter and cannot be used in reverse.

5. SDI video input: 1 x SDI (SDI / HD-SDI / 3G-SDI).

6. Video output: 1xHDMI A type output (1080P @ 60Hz), 1xSDI loop output.

7. Input audio signal: SDI embedded.

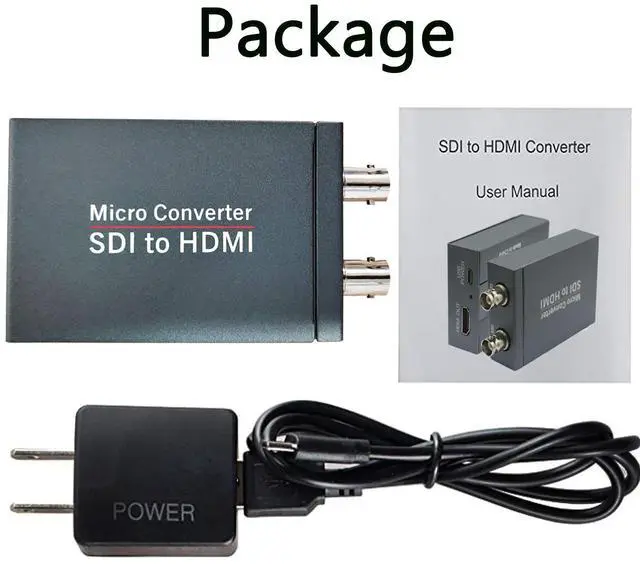

Include:

SDI to HDMI Converter * 1

USB Charge Cable * 1

Power Adapter * 1

User Manual * 1

Additional Features

• SDI in HDMI out and SDI Loop Outputs: Support 1 HDMI output and 1 SDI Loop Output,SDI data transfer rate up to 2.97Gbps, HDMI Output up to 1080P@60Hz. The loop-through design also allows you to view the original SDI content on an SDI monitor simultaneous with the HDMI display. SDI Input Resolutions: 480i /567i, 720P @30Hz /@50Hz/@ 60Hz,1080i /@ 50Hz/60Hz, 1080p/50Hz/60Hz,1080P @ 24Hz / @ 25Hz / @ 30Hz. HDMI Output Resolutions:720P/@ 50Hz, 720P / @ 60Hz,1080p/@24Hz /@25Hz /@30Hz/ @50Hz /@ 60Hz.
• The SDI interface is built in a sturdy metal chassis, there is no static noise problem. *SDI data rate: 270Mb / s, 1.485 Gbps, 2.97Gbps. *Audio and image output simultaneously, please make sure your settings are connected correctly. Easy to store and install-compact and compact design is easy to use velcro or tape fixed on the back of the monitor or console, does not take up space.
