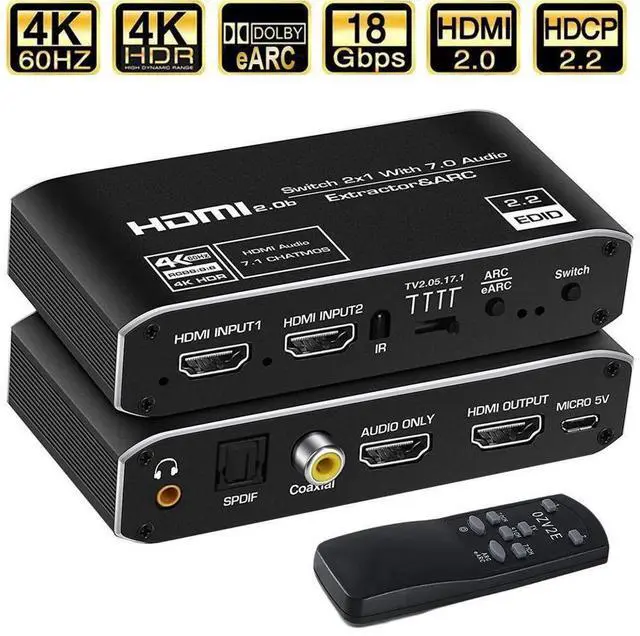

HDMI Audio Extractor, 2x1 HDMI Switch to HDMI + Optical Toslink SPDIF + 3.5mm Audio Jack + Coaxial + 7.1Ch HDMI Audio Support ARC and eARC Function for Apple TV PS4 eokCXOY

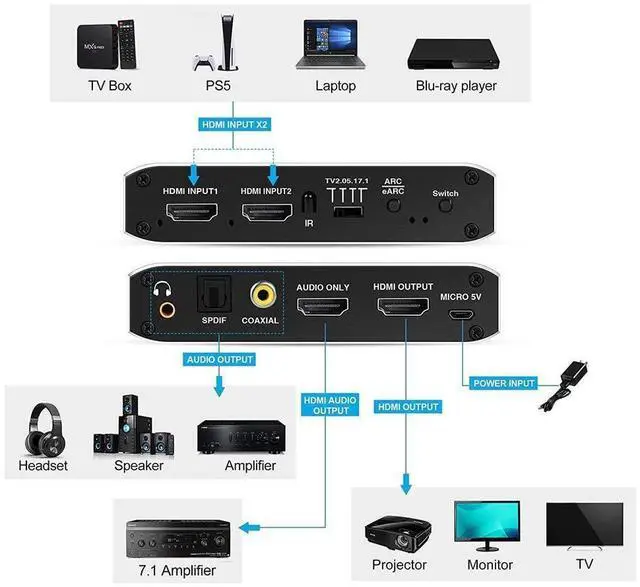

4K HDMI 2.0 Audio Extractor at high performance. It has 2 HDMI Input and 1 HDMI output with audio Extract Function. Support ARC and eARC Function. The Extract Audio can be output by 3.5 mm Audio Jack, Toslink SPDIF, Coaxial, HDMI Audio Port. It allows user to use the existing audio Receiver to receive 4Kx2K@60Hz, HDCP 2.3 content audio. The product also supports HDMI loop out, as well as 10bits HDR (High Dynamic Range).

Power Supply: DC 5v/1000mA.

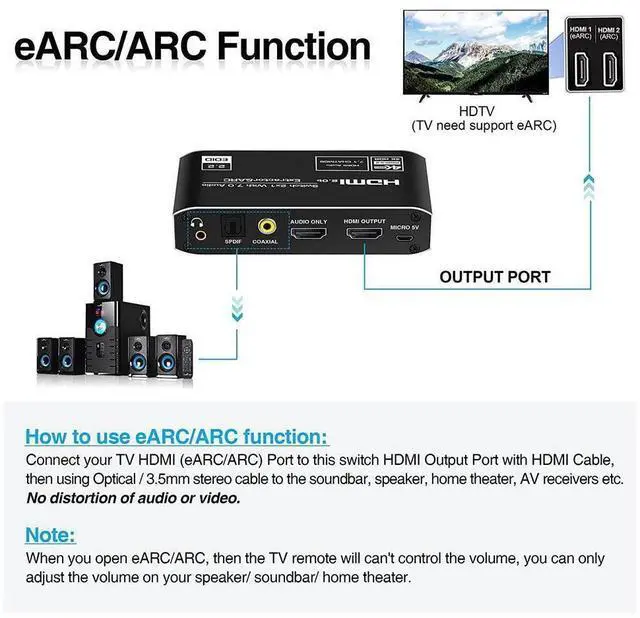

HDMI Output ARC/eARC: TV eARC/ARC audio output port (connectto TV with ARC function).

HDMI Audio Only Port: PCM 2.0, LPCM 5.1 / 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS: X.

Toslink SPDIF: LPCM 2.0 / 5.1, Dolby Digital 2.0 / 5.1, DTS 2.0 / 5.1

Coaxial Output: LPCM 2.0 / 5.1, Dolby Digital 2.0 / 5.1, DTS 2.0 / 5.1

3.5 mm Audio Jack: Analog stereo 2.0 ch

Color Depth: 8-bit, 10 bit, 12 bit (1080p@60Hz); 8-bit (4Kx2k@60Hz

RGB 8:8: 8/

YUV 4:4: 4); 8-bit, 10-bit, 12-bit (4Kx2K@60Hz

YCbCr 4:2: 2

/ 4:2: 0).

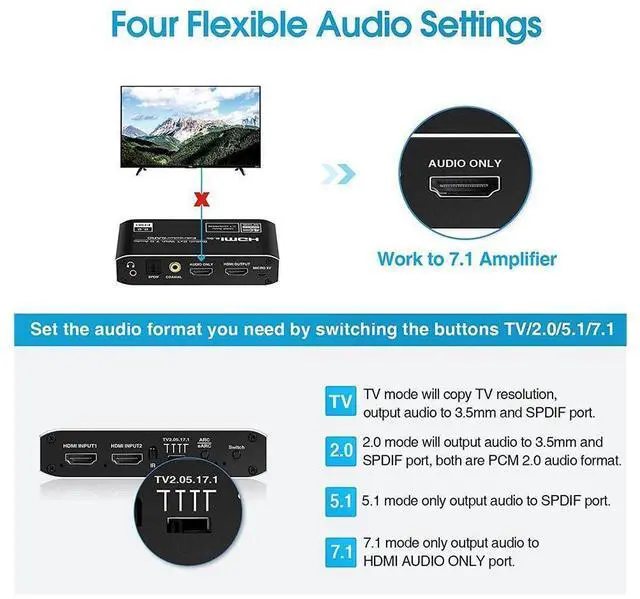

Turn on/off the eARC function: Switch to "ON" position, the AUDIO ONLY port will output the eARC/ ARC audio; Switch toOFF" position, the AUDIO ONLY port will output the audio from HDMI IN port.
