$48.89
Ships from China.
Meet Your Seller

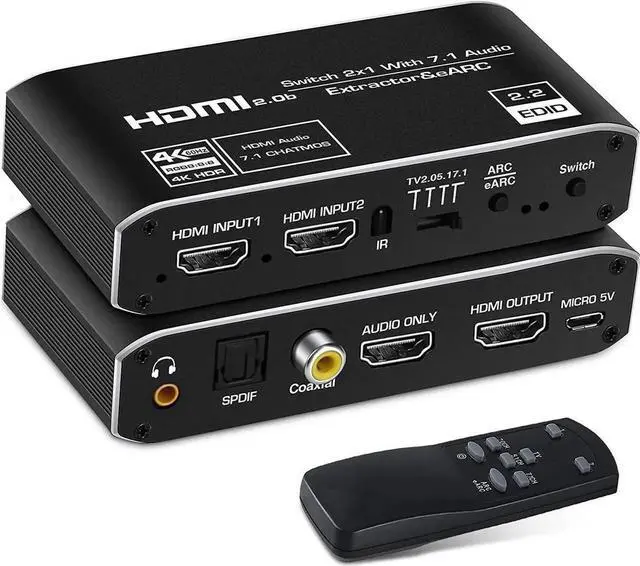

4K @60Hz eARC HDMI Swtich Audio Extractor, 2x1 HDMI Audio Converter with Remote Control, 7.1CH Atmos/ eARC/ARC/ Optical Toslink SPDIF/ Coaxial/ 3.5mm Audio Out, Supports HDCP2.3, HDMI2.0b
- eARC HDMI Audio Extractor - with the most advanced features - eARC. It can extract audio signals from any HDMI compliant source which without dedicated audio output. Supports eARC/ARC function, digital optical, 3.5mm headphone audio put, coaxial, 7.1 HDMI audio for amplifier.
- HDMI 7.1 Audio Extractor - Supports HDMI 7.1CH Atmos, all 5.1CH, PCM 2.0 audio out which can connect to your Sound Bar/Amplifier/AV receiver and more, enjoy stereo output and uncompressed and compressed audio.
- 4K@6Hz HDMI Switch Ultra HD - HDMI Switch 2 in 1 out, 2 hdmi signal duplicate picture to one monitor/TV. Supports the highest video resolution to 4K x 2K@60Hz (RGB 8:8:8, YUV4:4:4), HDCP2.3, HDMI 2.0b(18Gbps), HDR 10.
- Four Flexible Audio Settings - with 4 audio setting mode to compatible with more devices. Set the audio format you need by switching the buttons TV/2.0/5.1/7.1. TV mode; 2.0 mode; 5.1 mode; 7.1 mode
- Compatibility Devices - Supports most devices with a standard HDMI interface.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features
- Support 4K x 2K@60Hz, Support 3D.
- 4 speed toggle switch to switch TV/2.0/5.1/7.1 audio format.
- HDMI Audio Formats: PCM 2.0, LPCM 5.1/ 7.1, Dollby Digital, Dolby Digital plus, Dollby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.

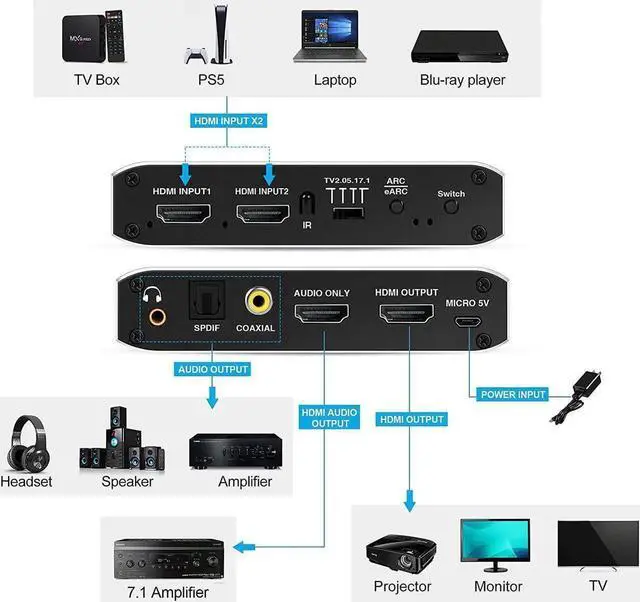

- HDMI video/audio output: monitor, TV, projector. HDMI Audio/ SPDIF /3.5mm/ Coaxial Audio Output: Receivers, amplifiers, speakers, headphones and other audio devices.
Specifications
Power Supply: DC 5V/1000mA.

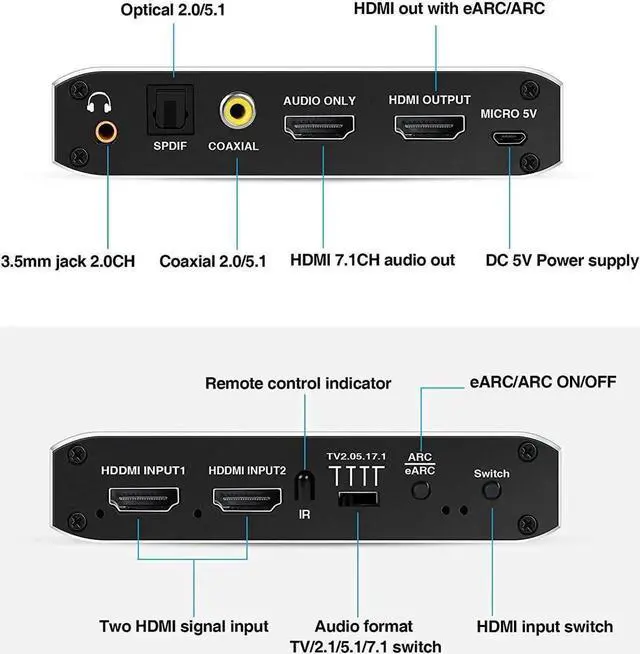

HDMI Output ARC/eARC: TV eARC/ARC audio output port(connect to TV with ARC function).
HDMI Audio Only Port: PCM 2.0, LPCM 5.1/7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.
Toslink SPDIF: LPCM 2.0/5.1,Dollby Digital 2.0/5.1, DTS 2.0/5.1.
Coaxial Output: LPCM 2.0/5.1,Dollby Digital 2.0/5.1, DTS 2.0/5.1.
3.5mm Audio Jack: Analog stereo 2.0ch.
Turn on/off the eARC function:Switch to "ON" position, the AUDIO ONLY port will output the eARC/ ARC audio;Switch to "OFF" position, the AUDIO ONLY port will output the audio from HDMI IN port.
Package contents
1 x 18Gbps HDMI eARC Extractor
1 x Power Adapter
1 x User Manual
NOTE

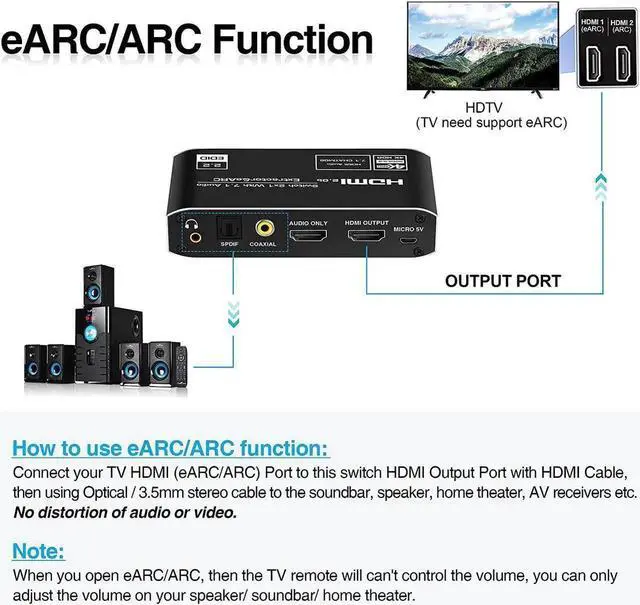

1. When you use ARC/eARC Function, please make sure that the spdif port light is red on, that's means the converter get signal. And the TV need support ARC/eARC Function.
2. When you open the ARC/eARC, then the TV remote will can't control the volume, you can only adjust the volume on your speaker/sounder/home theater.
eARC HDMI Audio Extractor - with the most advanced features - eARC. It can extract audio signals from any HDMI compliant source which without dedicated audio output. Supports eARC/ARC function, digital optical, 3.5 mm headphone audio put, coaxial, 7.1 HDMI audio for amplifier.
HDMI 7.1 Audio Extractor - Supports HDMI 7.1CH Atmos, all 5.1CH, PCM 2.0 audio out which can connect to your Sound Bar/Amplifier/AV receiver and more, enjoy stereo output and uncompressed and compressed audio.
4K@6Hz HDMI Switch
