Vszerda SDI to HDMI + Sdi Converter with SDI Loop Out Top Grade Product Support SD-SDI/HD-SDI/3G-SDI to HDMI for Monitor Audio Video
- Output port:1 * SDI port BNC,1 * HDMI port
- Input port:1 * SDI port BNC,
- HDMI output:480I480P576I1080I@50/60720P@50/60 [email protected]/24/24/29.97/30/50/60
- SDI input resolution: 480i/567i ; 720p/30/50/60 ; 1080i/50/60 ; 1080p/24/25/30
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Introduction:

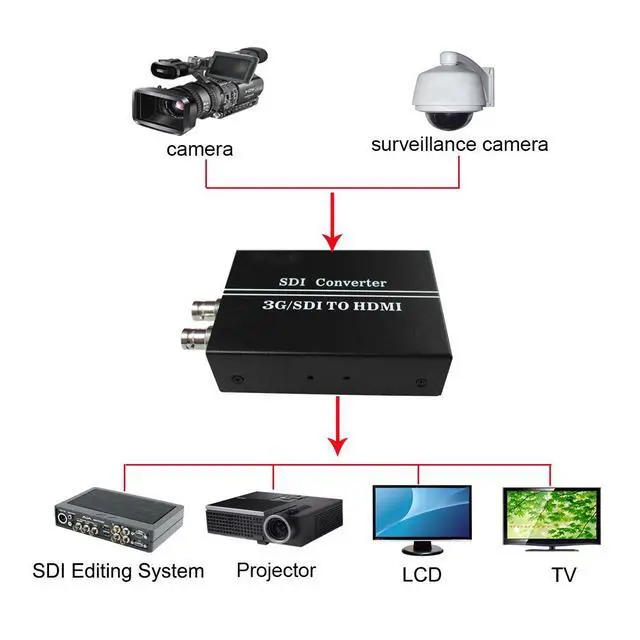

HDMI embedded audio output. This converter has one 3G/HD SDI input port, one 3G/HD SDI loop output. It is suited for SDI camera or other SDI video sources to connect HDMI video recorders or monitors.
Specification

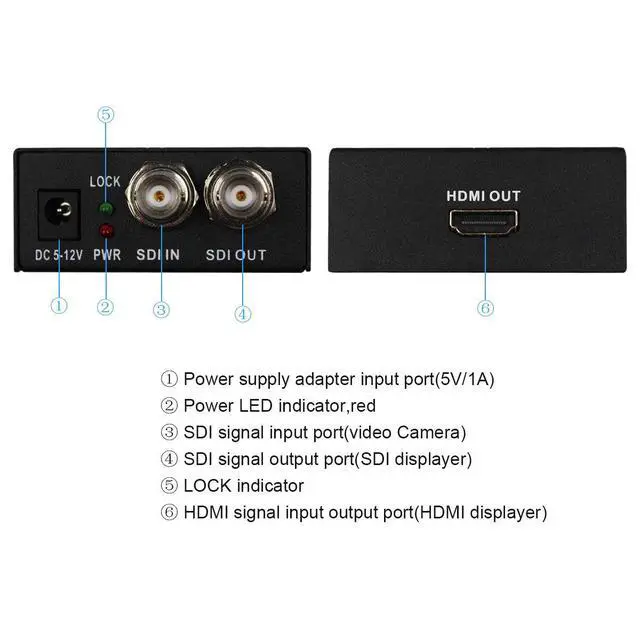

*Interface:1SDI input port(female type-BNC);1SDI loop output port(female type-BNC);1HDMI input port(female type A);5V DC;
*Power consumption:<1.3W
*Input video formats:3G,HD,and SD-SDI(auto-selected);SMPTE-259/274/292/296/372/424/425;2*BNC
*Output audio formats:HDMI v1.3a,30/36 bits per pixel,RGB or YUV,SD,HD,525i,625i,720p,50/59.94/60,1080i 50/59.94/60,1080p2398/24/25/29.9/30/50/59.94/60. HDMI Standard type a connector
*Input audio formats:SDI embedded audio,HDMI embedded audio,24 bit/48KHz,8 channels max
Package:
1x SDI to HDMI+sdi converter
1x US power adapter
