$89.99
Ships from China.
Meet Your Seller

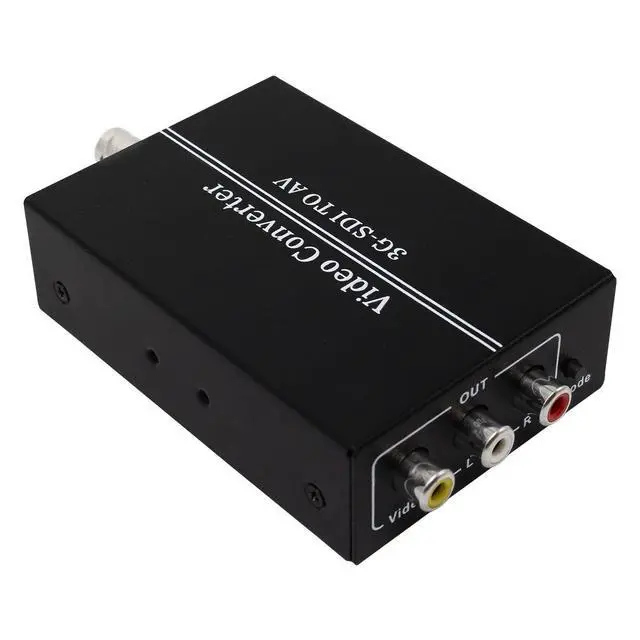

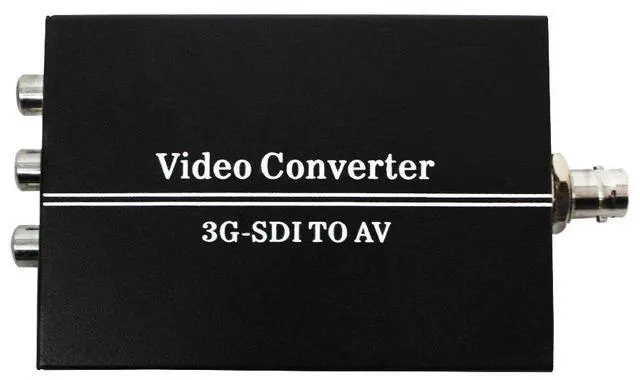

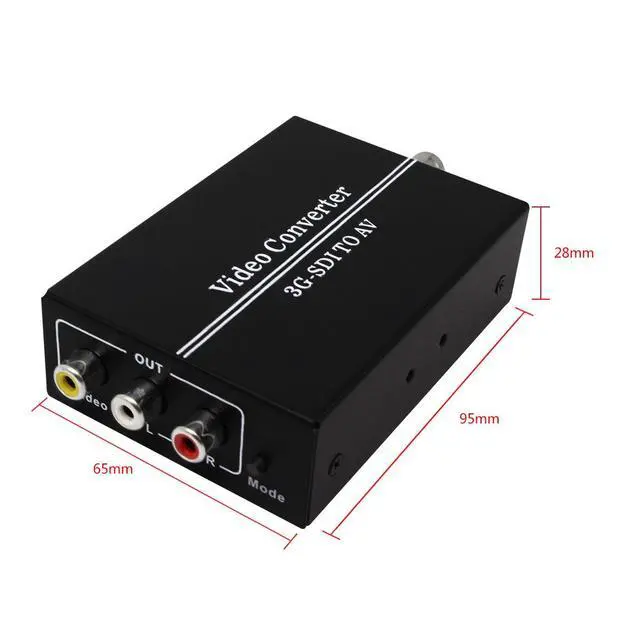

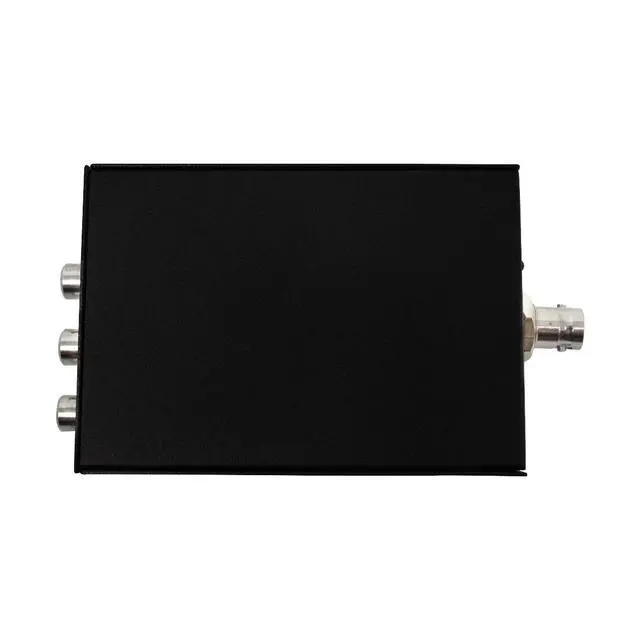

Vszerda HD 3G SDI to AV CVBS Video Converter Support 1080P L/R Audio Output SD-SDI HD-SDI Signal for TV
- Iutput port :2*SDI port (BNC port)
- Onput port : 1*AV port(L/R video)
- AV output resolution :480i/576i/480P/576P
- SDI iutput Format:3G-SDI:SMPTE 424M HD-SDI:SMPTE 292M

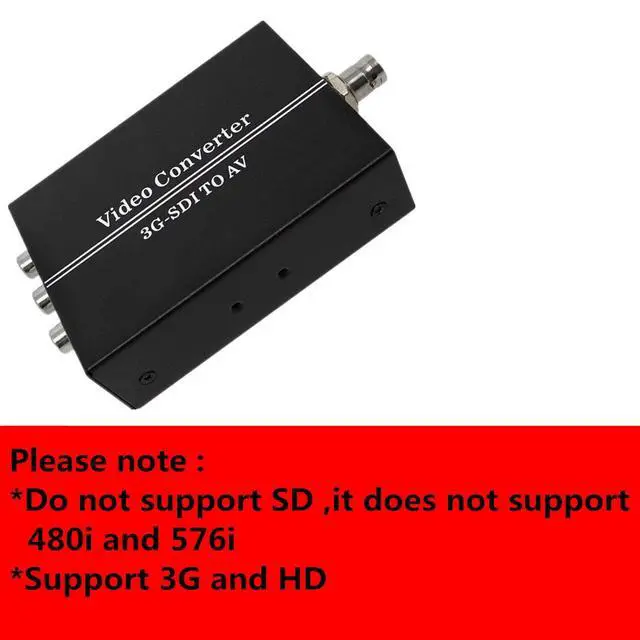

- Do not support SD ,it does not support 480i and 576i
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

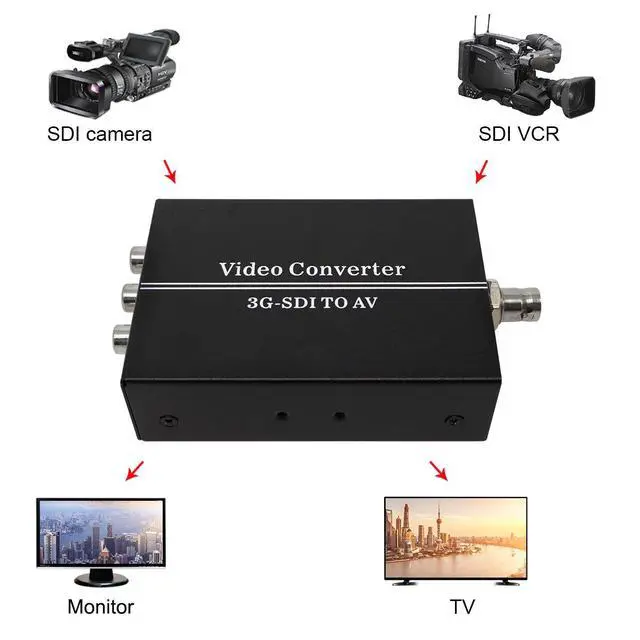

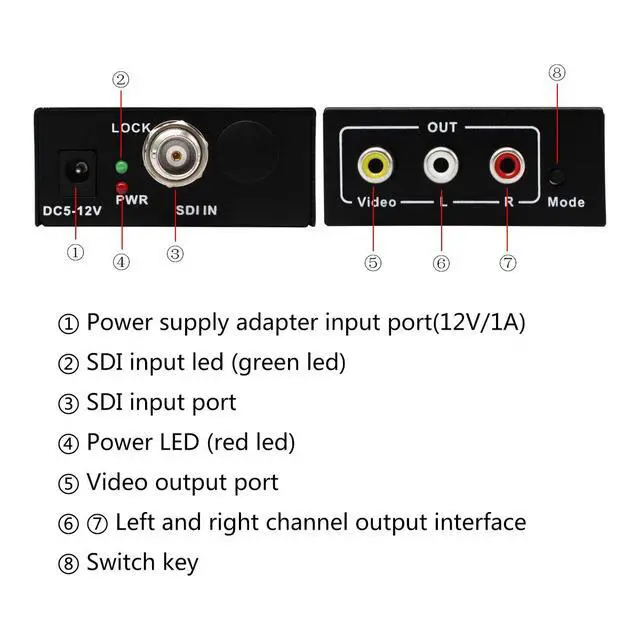

Introduction: This SDI to AV(CVBS) converter allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on normal TV while ensuring high bit rates of 2.970 Gbit/s to give you fast signal transmission without any loss, and thereby expensive monitor can be replaced by normal TV . It also support L/R analog audio output and can be connected to sound system to get perfect music. SDI IN: This slot is where you connect the SDI source output for SDI signal sending to be display on screen.
Specifications:
SDI OUT: This slot is where you connect the SDI display with SDI cable for input source display.
POWER LED: This red LED will illuminate when the device is connected with power supply.
DC IN: Plug the 5V-12V DC power supply into the unit and connect the adaptor to AC wall outlet.
Video out format: Press this switch to select the Video output format .
AV output: This slot is where you connect the TV with RCA calbe.
Package:
1 x sdi to av video Converter
1 x Power adapter
