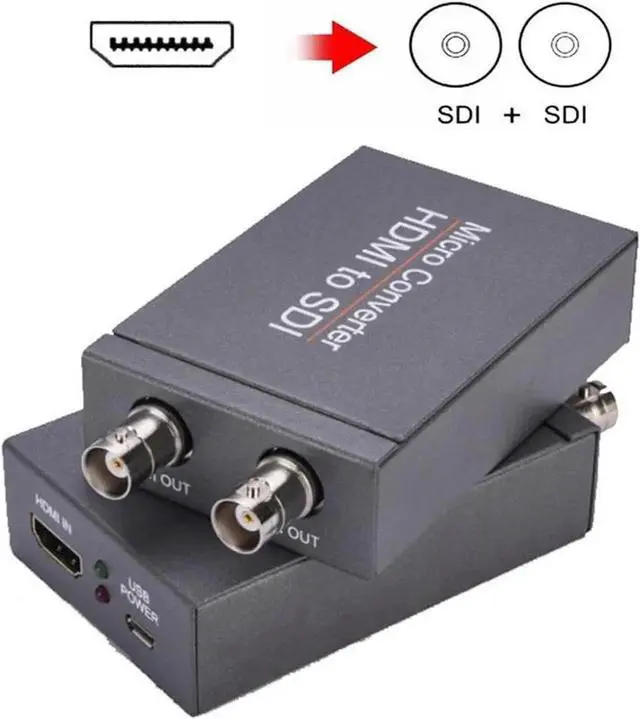

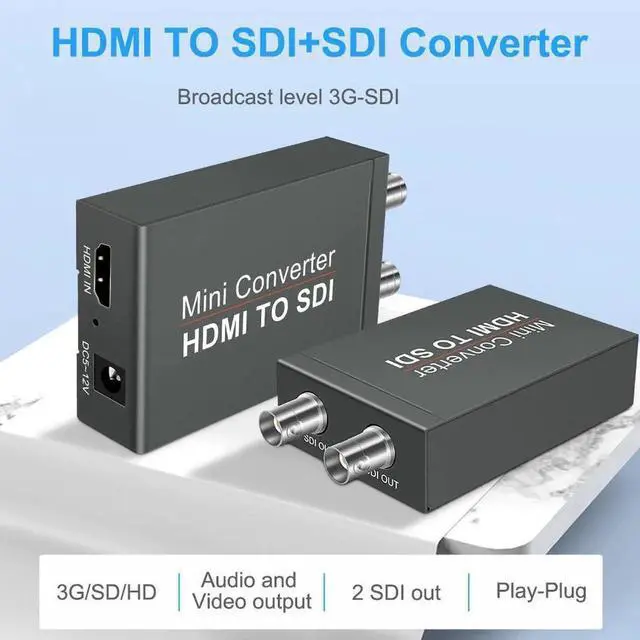

HDMI to SDI Converter,HDMI to SDI Adapter 1080P HDMI in to Two SDI Output SD-SDI HD-SDI 3G-SDI Video Converter Adapter for SDI Monitor HDTV

Feature:

Supports HDMI 1.3a input, 2ch SDI output,Full 10bit conversion

supported Full 1080p 60Hz HDMI with embedded audio; Synchronized audio video output,support 8-channel embedded audio

Optional Audio SRC feature,Support for any HDMI audio sampling frequency channel input

Built-in ESD protection circuitry can effectively prevent electrostatic damage

Video Input:HDMI V1.3a,30/60 bits per pixel,RGB or YUV,SD,HD,525i,625i,720P 50/59.94/60,1080i/50/59.94/60,1080P 23.98/24/25/29.9/30/50/59.94/60 HDMI Standard Type A Connector

Video Output:3G,HD,AND SD-SDI(Aito-slected),SMPTE-259/274/292/296/372/424/425,2xBNC

Audio Input:HDMI Embedded audio,24bit/48KHz or any HDMI audio input(SRC require specific models),8 channels max

Audio Output:SDI Embedded audio,24bit/48KHz,8 channels max

Introduction

Shows HDMI source on two SDI display.

This HDMI to SDI converter is very small, compact and very convenient to carry.

It can be used in multi-clock scenarios, such as radio and television program editing, video teaching and training, high-definition video information release, high-definition video long-distance transmission, video conferencing, multimedia advertising and video security monitoring and other fields.

The HDMI to SDI converter can transmit uncompressed audio and video signals. HDMI can be used for set-top boxes, DVD players, personal computers, TV games, integrated amplifiers, digital audio and televisions. HDMI can transmit audio and video signals at the same time. Because audio and video signals use the same cable, the installation of the system is greatly simplified.

This HDMI to SDI Converter allows you to seamlessly convert an HDMI signal to broadcast quality SD-SDI/HD-SDI/3G-SDI signal.Its not only widely applied to post-production and broadcast application,such as:broadcast room and non-linear editing,but also to the field of optical transmission with HDMI port on the equipment

Specification:

Power Supply:5V/1A

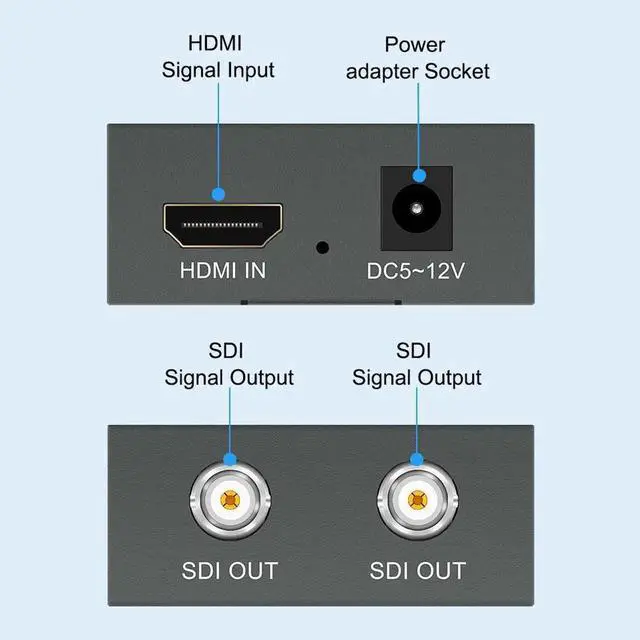

Input port:1xHDMIOutput port:2xSDI(BNC)

SDI format:SD-SDI/HD-SDI/3G-SDI

Data Rate: 270Mb/s, 1.485Gb/s, 2.97Gb/s

Support HDMI 1.3a, HDCP1.3

Package:

1 x HDMI to SDI Converter

1 x Power adapter

1 x Manual

HDMI Video Input: HDMI Type A in, Convert high definition HDMI signal to SDI signals.

NOTE: This is not a bi-directional converter. Can NOT be used for SDI to HDMI conversion

HDMI Input Resolution: 480I, 480P, 576I, 576P, 720P@50/60Hz, 1080I@50/60Hz, 1080P@24/25/30/50/60Hz.

Please Note: This HDMI to RCA Converter Only support Above HDMI input Frequency and Resolution, Do not support other types HDMI input signal and Frequency. If you Used it to work with your camera, Please Note that your Camera HDMI output signal is Above. Supports 720P@50/60Hz, 1080P@50/60Hz SDI signal output.

SDI output: 720P@50/60Hz for HD-SDI signal. 1080P@50/60Hz for 3G-SDI signal. Dual SDI Output Port, Automatic

Detection: Auto detection of HD-SDI, 3G-SDI SDI Output. Automatically matches the HDMI video input signal.

Long output distancs: Supports SDI output distance 100 meters (3G-SDI) for maxium, 200 meters (HD-SDI) for maxium.

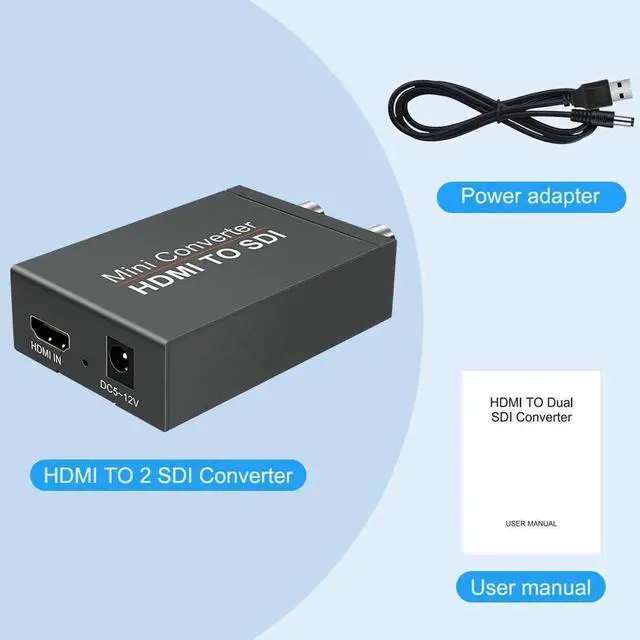

What You Get: HDMI to SDI Converter, Power Adapter X 1, User Manual X 1
