H.265/264/MJPEG Ultra Mini HDMI 1080P@30 Video Encoder with HDMI loopout, HDMI to H.264 HTTP, RTSP, RTMP/RTMPS, SRT, GB28181, HLS, FLV Multicast IPTV Encoder for YouTube Facebook Twitch Live

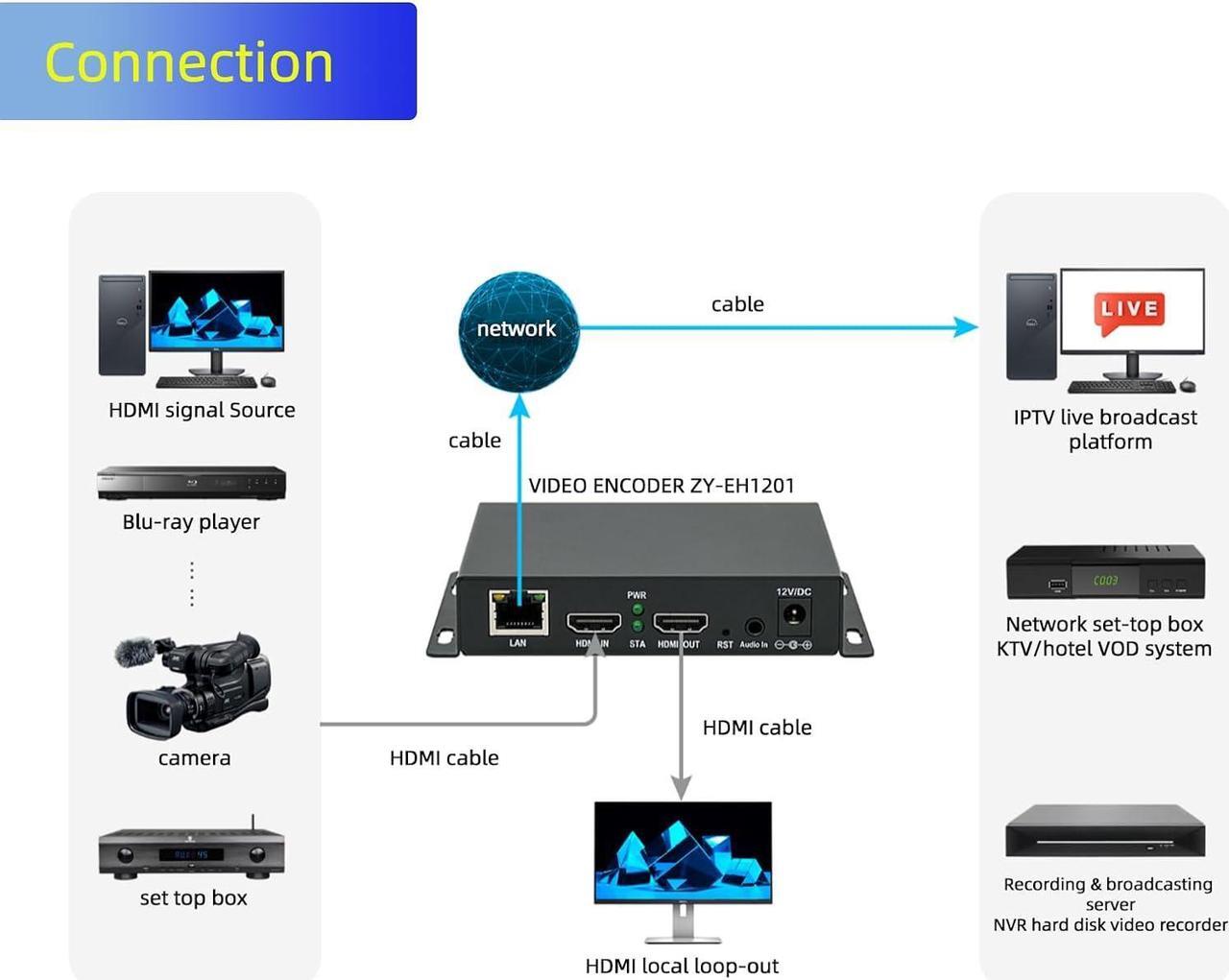

- This ultra mini video encoder has high integration with low cost. Ultra mini size(125x72x25mm) and light weight (200g) of H.265 encoder is perfect for live streaming applications with frequent move or tiny device installation space. IP encoder has 1 X HDMI Input and loop-out, 1 X 3.5mm audio input. IPTV encoder support audio encoding without video input.
- HDMI encoder supports max 1080P@30 resolution HD input and output. The video encoder for live streaming can output 2 channels streams at the same time. While only 1 channel can reach 1080p output. The H.265/ H.264 encoder supports multiple different protocol streams output at the same time, but does not support simultaneous output 1080P30.
- SOD setting function of the live streaming encoder makes it easy for you to add any self-defined text, time and image overlay on your video when output displayed. You may add any text/logo at any position to announce your copyrights with this hevc video encoder.
+
+
Overview
Specs
Reviews
Hardware encoder supports protocols including HTTP/HTTPS/RTSP/RTMP/RTMPS/SRT/UDP/RTP/FLS/FLV/Onvif protocol. Multicast UDP/RTP. HDMI video encoder supports software like Flashplayer, OBS, VLC player, Vmix.. etc. Supports Youtube, Facebook, Ustream, Livestream, Twitch, Vimeo, Streamspot, Dacast, Tikilive, Netrmedi, etc. This video encoder also supports new function of image rotation and mirror flip. More convenient for live streaming.
SPECIFICATIONS ------Mini H. 265 1080P@30 Video Encoder ZY-EH1201

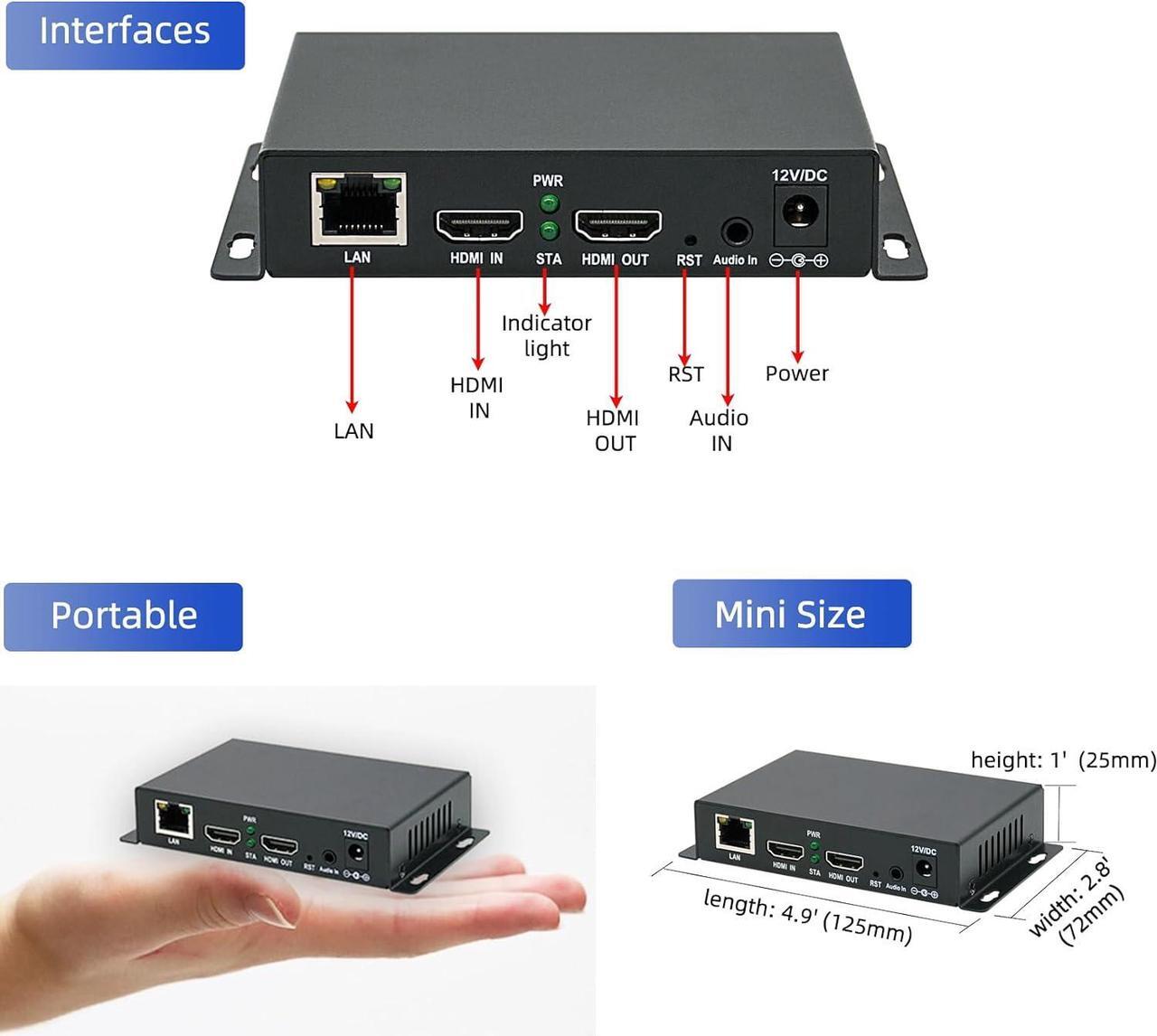

Video Input/outputport port Input: 1×HDMI 1.4, Support HDCP 1.4;
Output: 1×Ethernet port (RJ45), 1×HDMI 1.4 Loop-out
Video Support resolution 1920*1080, 1280*720, 1280*800, 1280*768, 1024*768, 1024*576, 960*540, 850*480, 800*600, 720*576, 720*540, 720*480, 720*404, 704*576, 640*480, 640*360, 480*270, Auto
Video encoding&Frame rate H. 265&H. 264/MJPEG; 30hz
Video Code Rate control 16kbps- 20Mbps; CBR/VBR
Audio Input interface 1×External audio, HDMI built-in Audio
Audio encoding&Bit-rate Option ACC/MP3/G711; 48K/64K/96K/128K/160K/192K/256K
Encoder type&Sampling Accuracy AACLC/EAAC/EAACPLUS/MP2/AC3; 24 Bit
Audio Data-rate 64Kb/s to 384Kb/s
Network RJ45 100M Ethernet port
Network Program streaming HTTP, RTSP, RTMP/RTMPS, SRT, GB28181, HLS, FLV, ONVIF, Multicast: UDP/RTP
Control Panel &Firmware Update Web panel (Language is English), remote upgrade; Enable by uploading files to the dashboard
Dimension & G.
W. (W*L*H): 4.9 * 2.8 *1in (125*72*25mm); 0.2 kg
Temperature &Humidity 0 ~ 45 (for working), -20~60 (for storing); <90%, non-condensing
Input Voltage & Power DC 12V/1A; 5W
Factory Support Support SDK; Support secondary development; Support network remote management and upgrade; Support to be packed with 1U and 3U Rack(1~16channels video input)
Application Applied in Live broadcast, IPTV system, elevator advertising player, online courses, broadcast meeting
SPECIFICATIONS ------Mini H. 265 1080P@30 Video Encoder ZY-EH1201
Video Input/outputport port Input: 1×HDMI 1.4, Support HDCP 1.4;
Output: 1×Ethernet port (RJ45), 1×HDMI 1.4 Loop-out
Video Support resolution 1920*1080, 1280*720, 1280*800, 1280*768, 1024*768, 1024*576, 960*540, 850*480, 800*600, 720*576, 720*540, 720*480, 720*404, 704*576, 640*480, 640*360, 480*270, Auto
Video encoding&Frame rate H. 265&H. 264/MJPEG; 30hz
Video Code Rate control 16kbps- 20Mbps; CBR/VBR
Audio Input interface 1×External audio, HDMI built-in Audio
Audio encoding&Bit-rate Option ACC/MP3/G711; 48K/64K/96K/128K/160K/192K/256K
Encoder type&Sampling Accuracy AACLC/EAAC/EAACPLUS/MP2/AC3; 24 Bit
Audio Data-rate 64Kb/s to 384Kb/s
Network RJ45 100M Ethernet port
Network Program streaming HTTP, RTSP, RTMP/RTMPS, SRT, GB28181, HLS, FLV, ONVIF, Multicast: UDP/RTP
Control Panel &Firmware Update Web panel (Language is English), remote upgrade; Enable by uploading files to the dashboard
Dimension & G.
W. (W*L*H): 4.9 * 2.8 *1in (125*72*25mm); 0.2 kg
Temperature &Humidity 0 ~ 45 (for working), -20~60 (for storing); <90%, non-condensing
Input Voltage & Power DC 12V/1A; 5W
Factory Support Support SDK; Support secondary development; Support network remote management and upgrade; Support to be packed with 1U and 3U Rack(1~16channels video input)
Application Applied in Live broadcast, IPTV system, elevator advertising player, online courses, broadcast meeting
