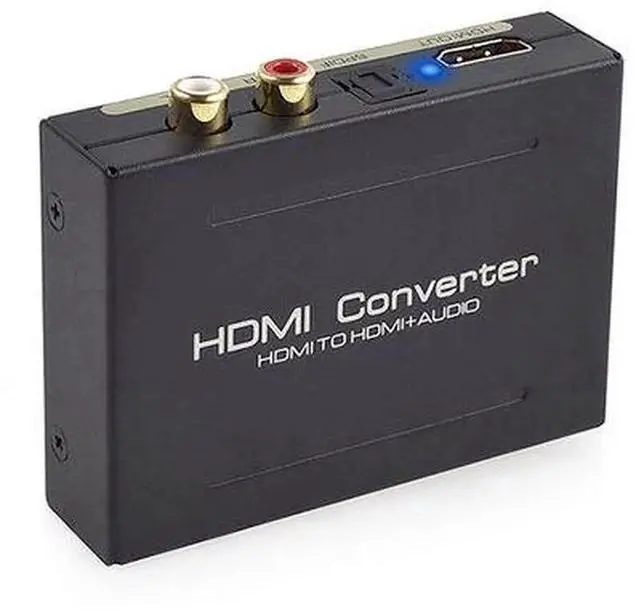

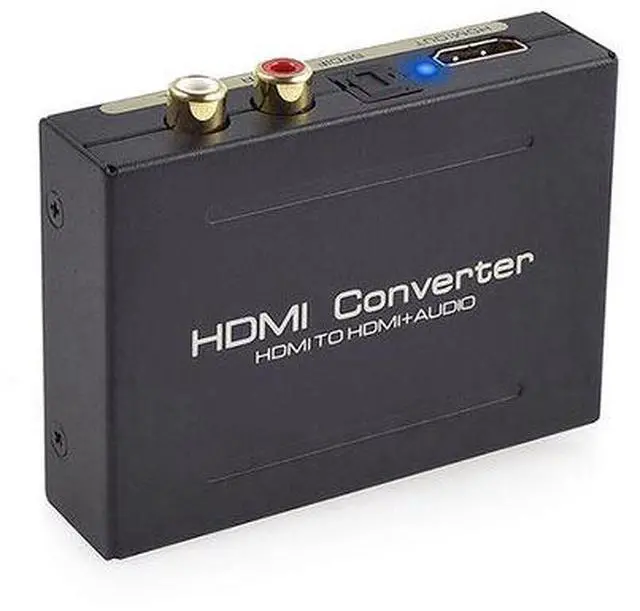

5.1CH 1K HDMI audio splitter, HDMI Audio Extractor, High-Definition audio converter, Optical Fiber signal converter

This is a high-performance and multi-functional high-definition audio extractor. This product can extract audio signals from HDMI high-definition signals to the power amplifier system. Thus, an audio effect that is difficult for television speakers to achieve can be obtained.

Product Features:

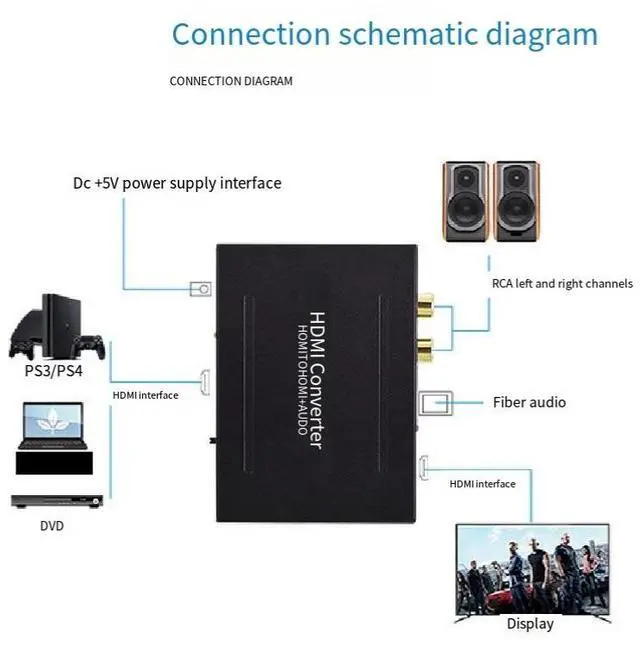

Convert the HDMI input to one HDMI output, one fiber audio output and one R/L analog audio output

2.

Audio output support: optical fiber + R/L analog audio output

3. Input resolution up to 3840x2160@30Hz

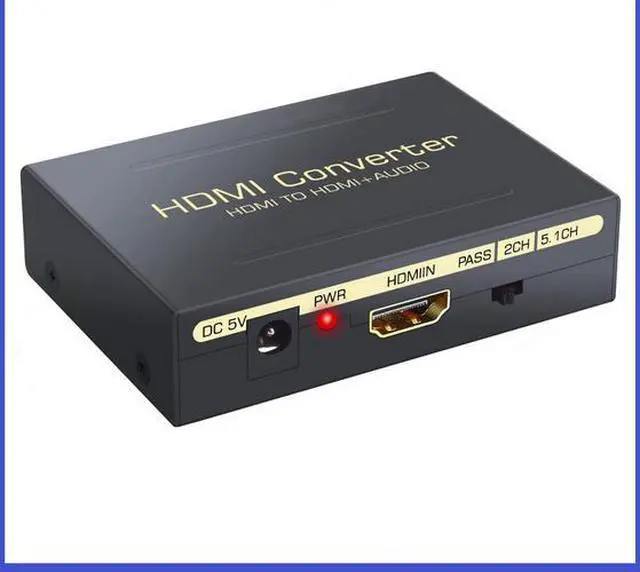

4. It is capable of achieving synchronous separation of audio signals. Three audio modes, PASS/ 2.0CH / 5.1CH, are available for selection

5.

LED indicator light: When the converter power is connected, the red led will light up. When successfully connected to a high-definition TV, the green led will light up.

Product parameters:

HDCP Version...... HDCP 1.4

HDMI Version...... HDMI 1.4 b

Support the resolution... 2160p@30Hz/1080p@50/60Hz/1080i/720p/1576i/480p/480i

Supports video color format...... 24bits/deep color 30bit, 36bit

Audio output...... L/R+ optical fiber

The biggest bandwidth...... 340MHz

The biggest transfer rate...... 10.2 Gbps

Input/output TMDS signals...... 0.5 - 1.5V olts p-p (TTL)

Input/output signal DDC...... 5Volts p-p (TTL)

The input cable distance... <=7m AWG26 standardcableHDMI

The output cable distance... <=8m AWG26 standardcableHDMI

Maximum working current...... 500mA

Power source format...

Input: AC(50/60Hz)100V-240V Output: DC5V/1A

Working temperature range...... (-15to +55°C)

Moderate scope of work...... 5to 90% RH (no condensation)

Size (length x width x height)......... 84.5 x 61.8 x 21 (mm)

The weight...... 135g
