3-in-1 Mini DP Thunderbolt to HDMI DVI VGA Adapter Cable 1080p Mini Display Converter for Macbook Air Macbook Pro iMac Mini Surface Pro Series White

Highlights: 3-IN-1 The Cobra Appearance Multi-Function Thunderbolt Mini Display

Port Male to HDMI/DVI/VGA Adapter Cable converter, 3-IN-1 The Cobra Appearance Multi-Function Thunderbol Mini Display

Port Male to HDMI/DVI/VGA Adapter

Cable,

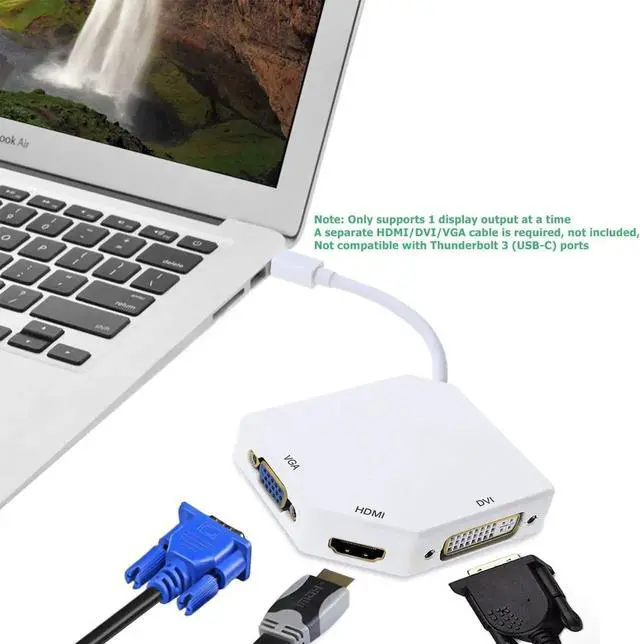

Note: Only supports 1 display output at a time A separate HDMI/DVI/VGA cable is required, not included, Not compatible with Thunderbolt 3 (USB-C) ports Support Mini Display Port 1.1 a Dual-mode input.

Note: Mini Display

Port is NOT compatible with Macs (before 2008) that have Mini-DVI. Please check your port before purchase The HDMI can support audio output for iMac (Late 2009) and Mac Book Pro (Mid 2010), Macs made before 2010 are NOT able to output audio over Mini Display

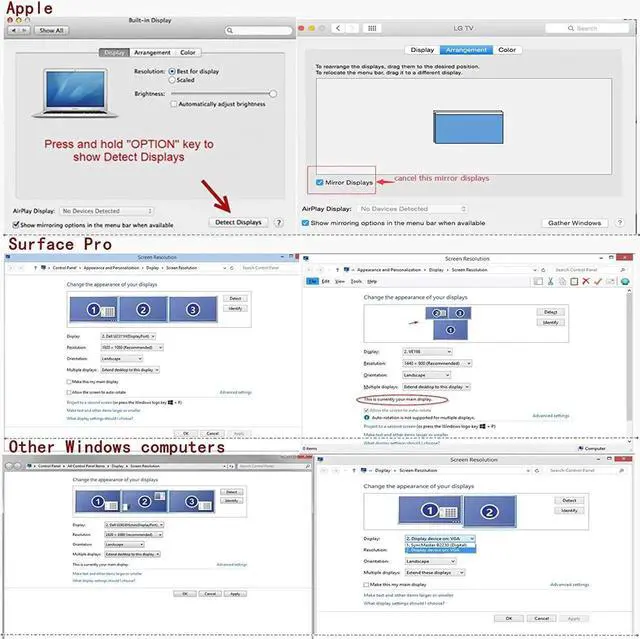

Port. More info and then check the Model Identifier field in Hardware Overview Automatic detect the display by plugging and unplugging it. Support HDMI/DVI/VGA output with the max resolution of 1920x1080p@60Hz, 225MHz/ 2.25G bps per channel ( 6.75G bps all channel), 12bit per channel (36bit all channel) deep color Powered from Mini Display Port source. This cable can only pass signal from Mini Display

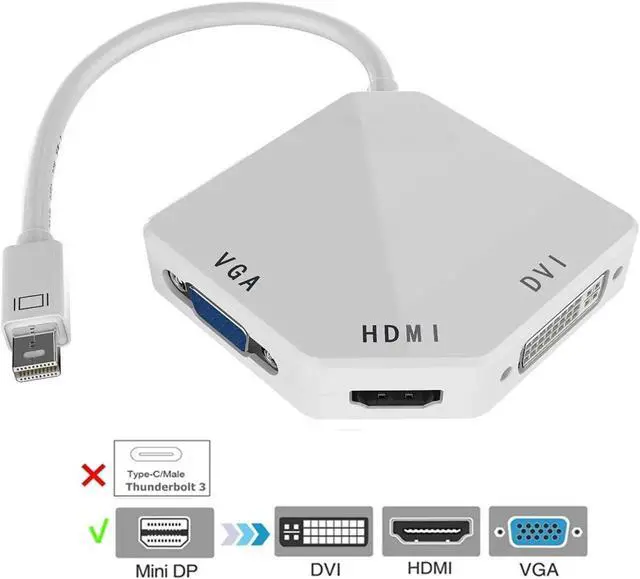

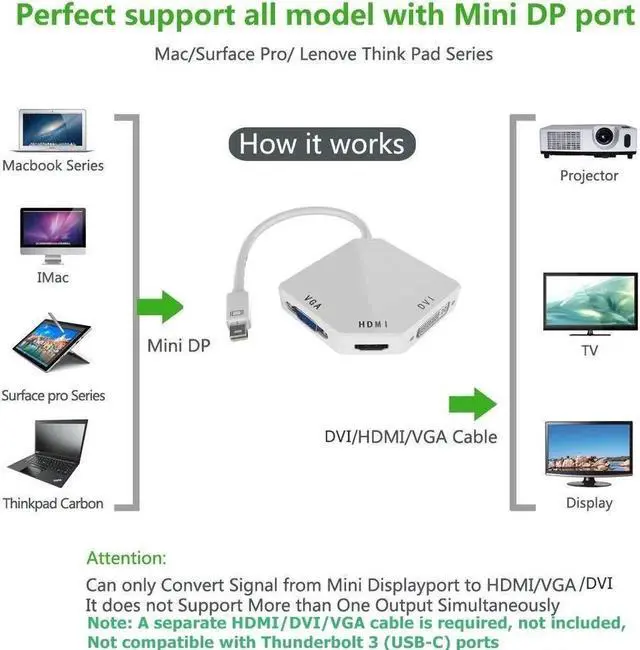

Port to HDMI/DVI/VGA port. It's not a bi-directional cable. When connect to monitor, audio will not pass through the adapter to the HDMI/VGA/DVI monitor (a speaker is needed to get audio out ); When connect to TV, only HDMI port can have audio out, VGA and DVI ports need a speaker to get audio out. Samsung U28D590D not compatible with Mac systems This product with three output ports, and you can choose one of them to use at a time as you demand, the functions of the port as followings: 1. DVI output, connect the DVI devices using a DVI cable. 2. HDMI output, connect the HDMI devices using a HDMI cable. 3. VGA output, connect the VGA devices using a VGA cable.

4. Mini Display Port, (Not compatible with Thunderbolt 3 (USB-C) ports ) connect Mac Book, Mac Book Pro, or Mac Book Air.

Specification: Input

Signal: Mini Display Port 1.1 a(Not compatible with Thunderbolt 3 (USB-C) ports )

Output Video: HDMI/DVI/VGA, A separate HDMI/DVI/VGA cable is required, not included

Input: Mini Display Port Male 20pin

Output: HDMI Female Type A 19pin

Connector: DVI Female (24+1) VGA Female 15Pin Vertical

Frequency Range: 50/60Hz Video

Amplifier Bandwidth: 2.25G bps/225MHz

HDMI/DVI/VGA: 480i/480p, 576p, 720p, 1080i/1080p

External Power Supply: No external power needed

Power consumption (Max): 700mW

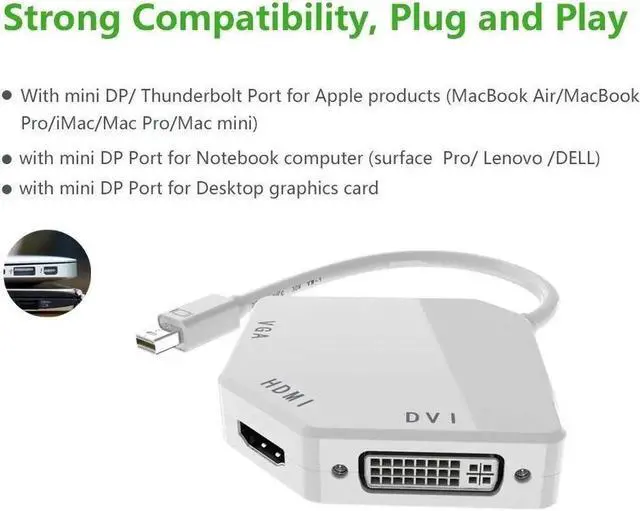

Compatible modes: Mac Book Air, Mac Book Pro, iMac, and Mac mini with thunderbolt ports since 2011 are all supported or PC with mini display port are also supported. Not compatible with 2016 Macbook Pro USB-C ports.

How to use: You can only plug a port among 3 output ports at one time, when you want to use the DVI output, you just need to connect the DVI devices with a DVI cable. And when you want to use the HDMI output, you just need to connect the HDMI devices with a HDMI cable. When you want to use the VGA output, you just need yo connect the VGA devices with a VGA
