4K x 2K 3D HDMI to HDMI and Optical SPDIF + 3.5mm Stereo Audio Extractor Converter HDMI Audio Splitter Adapter for Blue-ray PC Laptop Xbox One HDTV

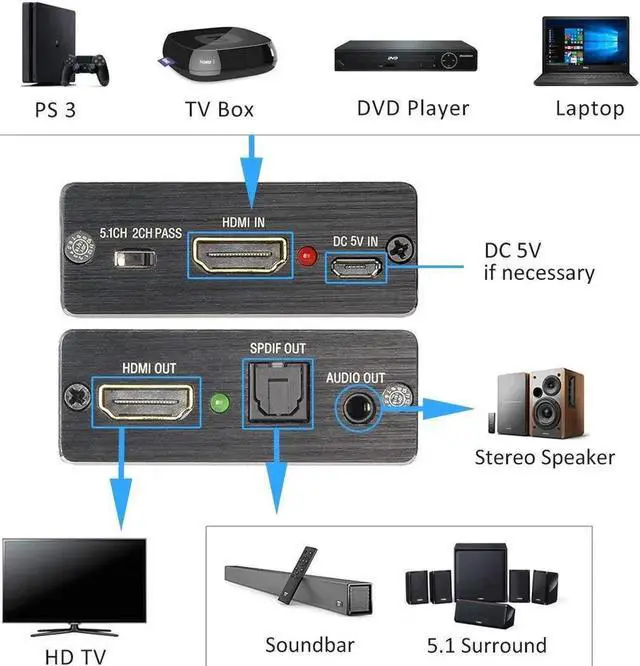

About the product One HDMI Input to one HDMI Output (Pass Mode), SPDIF (Optical) digital audio output(2CH/ 5.1CH Mode), or 3.5 mm Stereo audio output (2CH Mode)

Audio EDID Settings: Pass, 2CH and 5.1CH 3.5 mm audio output supports incoming 2CH PCM LPCM stereo audio; Optical SPDIF output supports incoming 2CH PCM, 5.1CH Dolby Digital, DTS

(Note: Not support Dolby Digital Plus, Dolby TrueHD and above) without dedicated audio output as well as Blu-ray/ DVD/ HD player, cable/satellite box, Amazon Fire TV, Apple TV, PS3/4, Xbox, PC/laptop, HD camera, HD DVR etc

Note: Not support HDMI ARC (Audio Return Channel) Input Resolution up to 4K/30Hz, 1080P(50/60Hz)/720P/480P; 3D and 36-bit deep color with sync sound; Supports 225MHz/ 6.75G bps per channel bandwidth Metal casing design and overall shielding without signal interference; Plug & Play Product description This device extracts the digital audio signal from the HDMI input and converts it to 2 channel analog stereo output or 5.1 channel Audio outputs.

Specification: Input

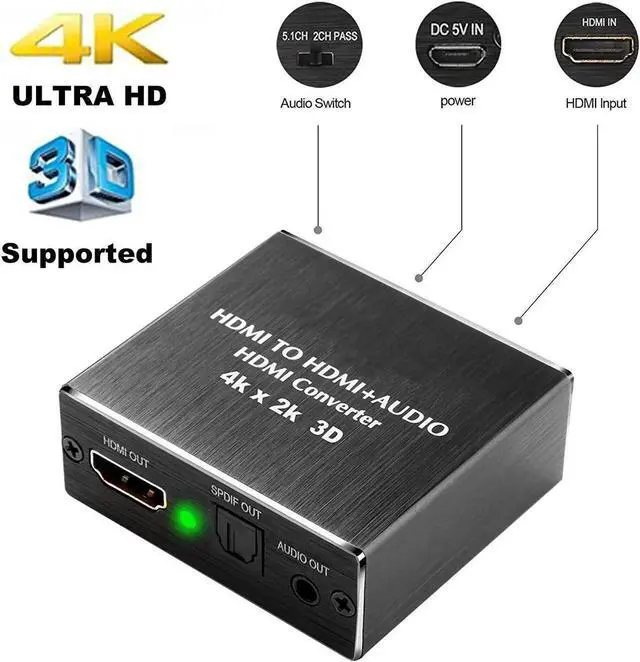

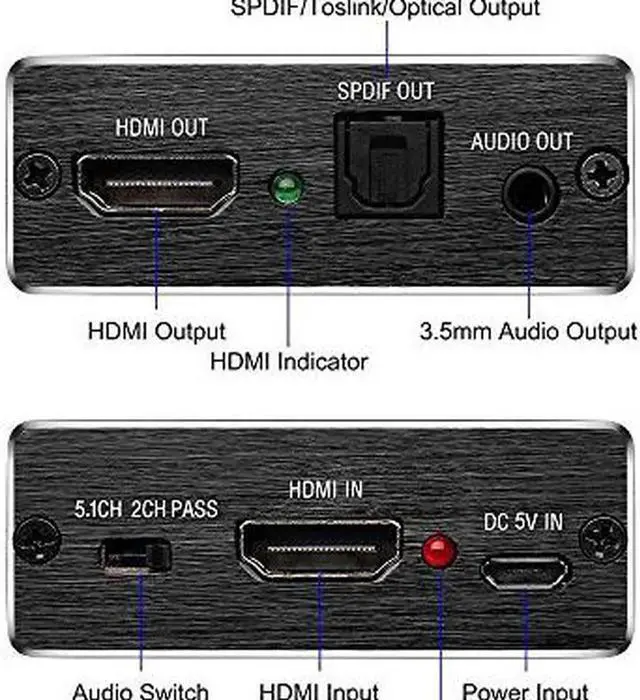

Port: 1 x HDMI IN, 1 x Micro USB Power Port, 3 x EDID Audio(Pass/2CH/ 5.1CH )

Output Port: 1 x HDMI OUT, 1 x SPDIF (Optical), 1 x 3.5 mm Jack

HDMI resolution: 4K x 2K, 24/50/60fs/1080P/1080i/720p/576p/576i/480p/480i

Support video color format: 24bit/deep color 30bit, 36bit

Max bandwidth: 225MHz

Max baud rate: 6.75G bps

Max working current: 190mA To improve our customers experience, we posted the following three methods if you experience no sound from output.

1. Switch EDID Button Switch the EDID audio switch in the front. Change it between 2CH, 5CH or pass.

2. Turn Off Dolby Digital Plus Because TOSLINK (SPDIF) does not support Dolby Digital Plus, you need to turn off Dolby Digital Plus function of the input devices. Then the sound can go through the extractor.

a: Amazon Fire TV or Amazon Fire TV Stick Settings - Display Sound - Audio - Dolby Digital Output -

Dolby Digital Plus off b: Apple TV Settings Audio Video -

Dolby Digital - on c: Chromecast Chromecast plays the contents from your video source, please make sure to turn off the Dolby Digital Plus on the video source through the play devices.

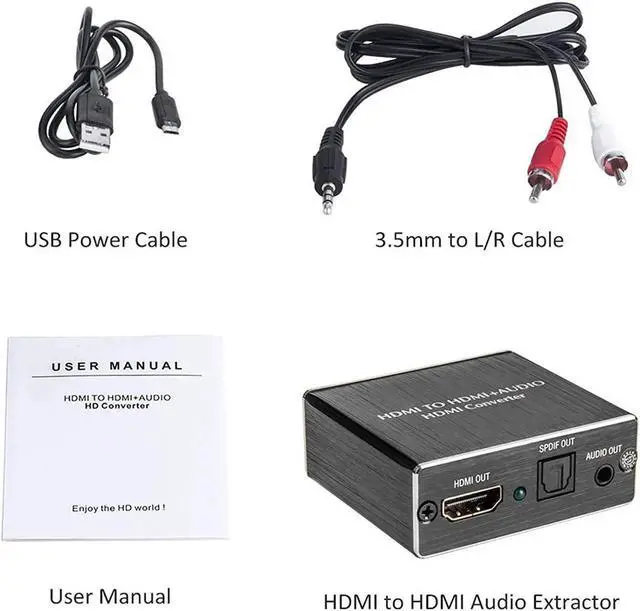

Package Contents: 1 X HDMI Audio Extractor 1 X 3.5 mm to RCA Stereo Audio Cable 1 x Micro USB cable 1 X User Manual
