4K HDMI Audio Extractor V1.4 HDMI to HDMI + Optical TOSLINK SPDIF + Analog RCA L/R Stereo Audio Video Spiltter Adapter Converter for Apple TV Blu-ray Player

Highlights:

?4K HDMI to HDMI Audio Extractor?HDMI to HDMI SPDIF + R/L Audio Converter, One HDMI Input Convert to one HDMI + Audio (SPDIF+R/L Audio) Output.

?3 Audio Mode Options?with Pass, 2CH and 5.1CH Three Audio Mode Options, SPDIF Output Supports Pass 2CH PCM, 5.1CH Dolby Digital, DTS (Dolby Digital Plus not Supported); Analog RCA L/R Output Supports 2CH PCM Stereo Audio.

?2160P 4K High HDMI Resolution?Supports HDCP 1.4, Video EDID Pass Through, Up to Up to 3840x2160@30Hz and [email protected] with2160p@30Hz/1080p@50/60Hz/1080i/720p/1576i/480p/480i (Not Compatible with Amazon Fire TV, Fire TV Stick)

?Support Video Color Format?Supports 24 bit/Deep Color 30bit, 36bit per Channel (36bit all Channel) Deep Color. Compatible with Blu-ray DVD Player Xbox One SKY HD box Apple TV PS3 PS4 (Note: 5.1 Channel not Supported on PS3)

?Gold-plated Connector?Metal Casing Design, Overall Shielding without Signal Interference, Gold Plated Connector, Enhance HD Video Signals. Plug & Play.

Features:

Convert one HDMI input to one HDMI + Audio(SPDIF + R/L)output.

Audio output supports: SPDIF + R/L analog Audio Output.

Input Resolution: Up to 3840x2160@30Hz;4096x2160@30Hz.

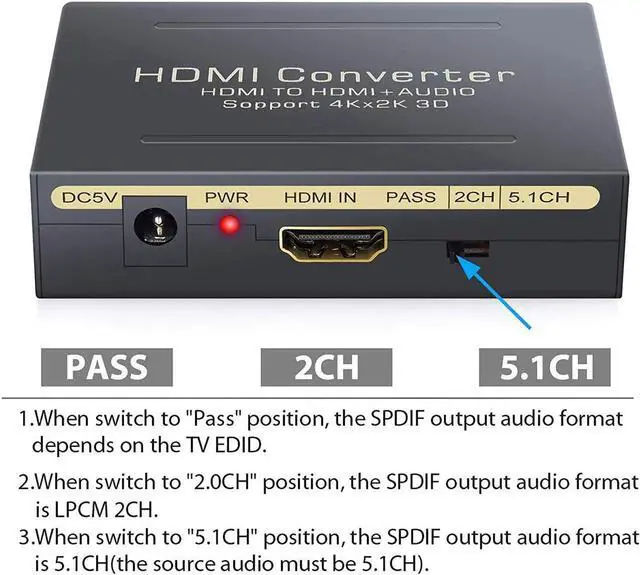

HDMI to achieve the synchronization of audio signal separation. There are PASS/2.0CH/5.1CH three kinds of audio mode options.

LED indication: When the converter is switched on,the red LED indicator will light. When it is connected to the HDTV successfully, the green LED indicator will light

Specifications:

HDMI resolution:2160p@30Hz/1080p@50/60Hz/1080i/720p/1576i/480p/480i

Support video color format : 24bit deep color 30bit,36bit

Audio output : L/R+SPDIF

Max bandwidth:340MHz

Max baud rate: 10.2Gbps

Input/Output TMDS signal : 0.5~1.5Volts p-p(TTL) Input/Output DDC signal : 5Volts p-p(TTL)

Input cable distance:<=7m AWG26 standard cable HDMI Output cable distance:<=8m AWG26 standard cable HDMI Max working current:500mA Power adapter format:input:AC(50/60Hz)100V-240V;Output: DC5V/1A

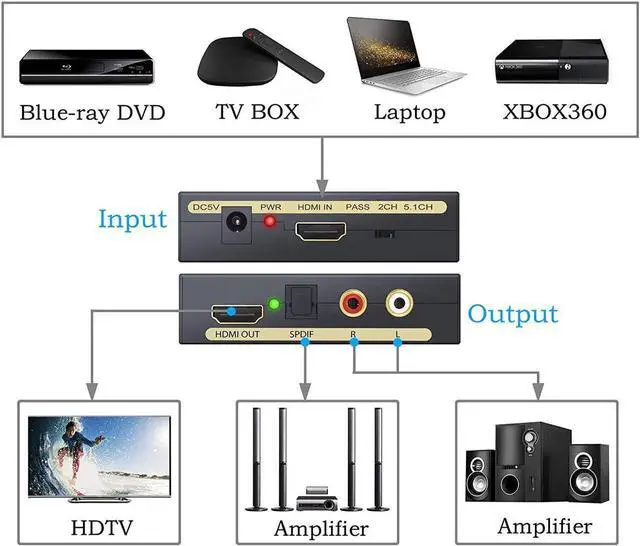

How to Use

HD Source connects to the input HDMI port.

HD Display connects to the output HDMI port.

Audio equipment connects to the R/L port.

The optical cable of Audio equipment connects to the SPDIF port.

Plug the 5V DC power adapter.

Package included:

1 x Extractor

1 x 5V USB Power

1 x User Manual
