Werleo HDMI Audio Extractor V1.4 HDMI to HDMI + Optical Toslink(SPDIF) + RCA(L/R) Stereo Analog Outputs Video Audio Splitter Converter Support 4K Black

Highlights:? 4K HDMI to HDMI Audio Extractor? HDMI to HDMI SPDIF + R/L Audio Converter, One HDMI Input Convert to one HDMI + Audio (SPDIF+R/L Audio) Output.? 3 Audio Mode Options? with Pass, 2CH and 5.1CH Three Audio Mode Options, SPDIF Output Supports Pass 2CH PCM, 5.1CH Dolby Digital, DTS (Dolby Digital Plus not Supported); Analog RCA L/R Output Supports 2CH PCM Stereo Audio.? 2160P 4K High HDMI Resolution? Supports HDCP 1.4, Video EDID Pass Through, Up to Up to 3840x2160@30Hz and 4096x2160@30Hz. Compatible with2160p@30Hz/1080p@50/60Hz/1080i/720p/1576i/480p/480i (Not Compatible with Amazon Fire TV, Fire TV Stick)? Support Video Color Format? Supports 24 bit/Deep Color 30bit, 36bit per Channel (36bit all Channel) Deep Color. Compatible with Blu-ray DVD Player Xbox One SKY HD box

Apple TV PS3 PS4 (Note: 5.1 Channel not Supported on PS3)? Gold-plated Connector? Metal Casing Design, Overall Shielding without Signal Interference, Gold Plated Connector, Enhance HD Video Signals. Plug & Play.

Features: Convert one HDMI input to one HDMI + Audio(SPDIF + R/L)output.

Audio output supports: SPDIF + R/L analog Audio Output.

Input Resolution: Up to 3840x2160@30Hz; 4096x2160@30Hz. HDMI to achieve the synchronization of audio signal separation. There are PASS/ 2.0CH / 5.1CH three kinds of audio mode options.

LED indication: When the converter is switched on, the red LED indicator will light. When it is connected to the HDTV successfully, the green LED indicator will light

Specifications: HDMI

resolution: 2160p@30Hz/1080p@50/60Hz/1080i/720p/1576i/480p/480i

Support video color format: 24bit deep color 30bit, 36bit

Audio output: L/R+SPDIF

Max bandwidth: 340MHz

Max baud rate: 10.2G bps

Input/Output TMDS signal: 0.5 ~ 1.5V olts p-p (TTL)

Input/Output DDC signal: 5Volts p-p (TTL)

Input cable distance:

<=7m AWG26 standard cable HDMI Output cable distance:

<=8m AWG26 standard cable HDMI Max working current: 500mA

Power adapter format:

input: AC(50/60Hz)100V-240V;

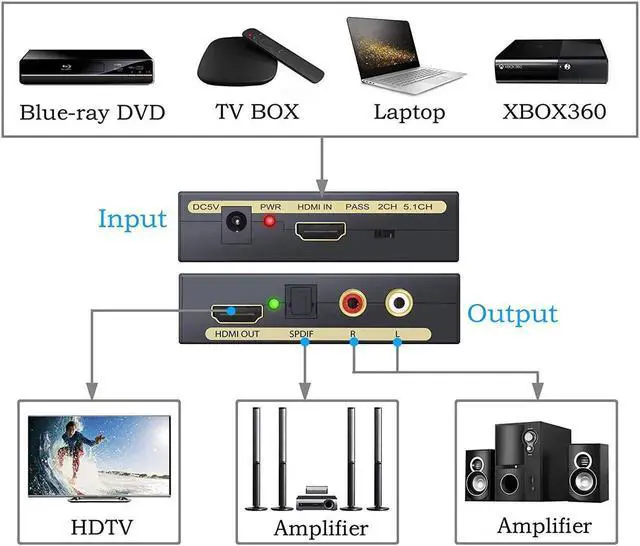

Output: DC5V/1A How to Use HD Source connects to the input HDMI port. HD Display connects to the output HDMI port. Audio equipment connects to the R/L port. The optical cable of Audio equipment connects to the SPDIF port. Plug the 5V DC power adapter.

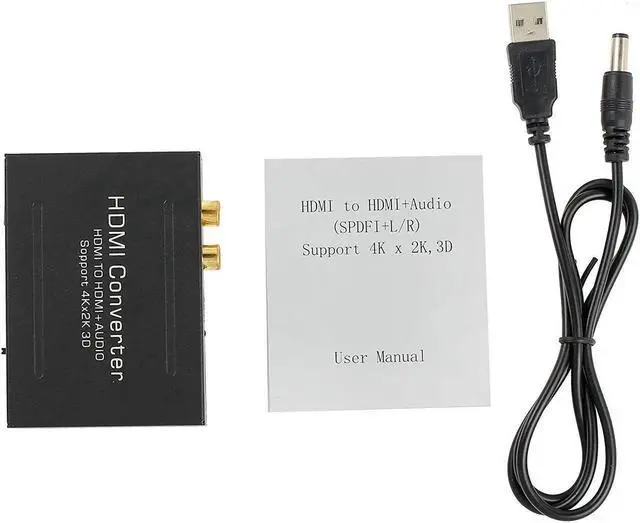

Package included: 1 x Extractor 1 x 5V USB Power 1 x User Manual
